Product Details:
Payment & Shipping Terms:
|
| The Signal Of Input And Output: | HDMI | Temperature: | -5°C To +75°C |
|---|---|---|---|
| RS232 Port: | 3 Ports Industrial Terminal | RS232 Baud Rate: | Support 115200 And All Below |
| Fiber Port: | LC | Fiber Module: | SFP Single Mode |
| Device Size: | 109.5*152*29.3mm(length*width*height) | Input Voltage: | DC 12V，inside + Outside - |
| Highlight: | External Audio HDMI Fiber Optic,8Ch HDMI Fiber Optic |
||

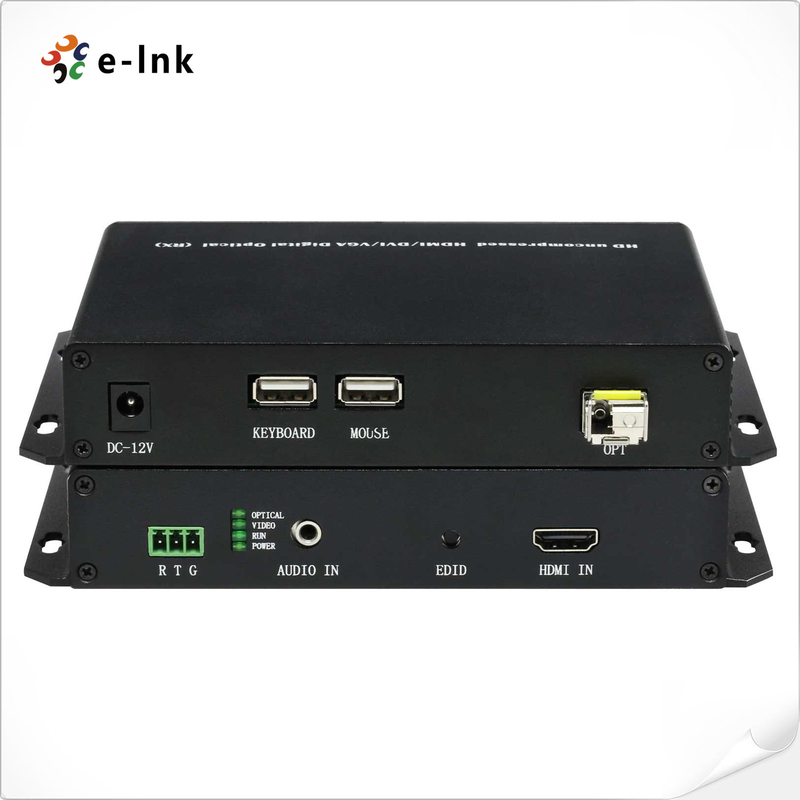

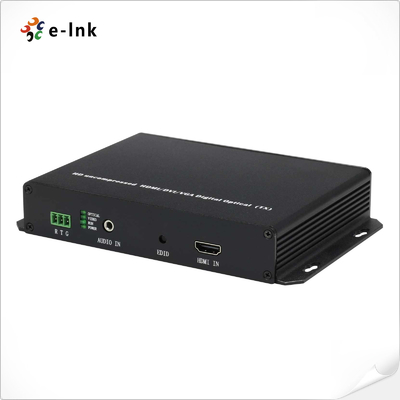

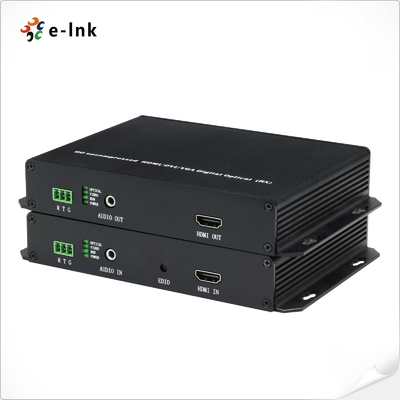

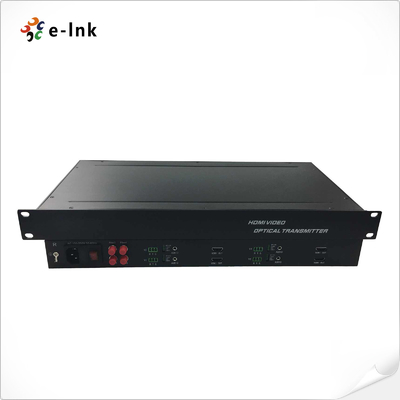

1/2/4/8Ch HDMI Fiber Optic with External Audio Extender
Industrial Ethernet Switch Advantages
► Full digital, Uncompressed HD optical fiber transmission
► Support Full HD 1920*1200@60Hz
► The attenuation of optical module SFP low to -3db
► 1 channel analog audio(3.5mm)
► Support HDMI 1.3b Protocal
► Support KVM
► Automatic identification and configure display mode
► Automatic equalization inside, stable and clear graphics.
► ESD protection circuit inside, to ensure the ESD damage.
► Easily to installation, plug and play, no need to set up
Industrial Ethernet Switch Technical Indexes
| Temperature | -5°C to +75°C |
| Humidity | 5 to 90 % RH (no condensation) |
| The signal of Input and output | HDMI |
| Protocal | HDMI1.3b,HDCP1.2 |
| Pixel band width | 300MHz |
| The signa of Audio input and output | 3.5MM Audio |
| Audio format | 44.1K,48K,96K,176K,192K |
| RS232 port | 3 ports industrial terminal |
| RS232 Baud rate | Support 115200 and all below |
| RS 232 Data bits | 8 bits |
| KVM receiver port | A USB port |
| KVM transmitter port | B USB port |
| Fiber port | LC |
| Fiber module | SFP single mode |
| Fiber wavelength | 1550/1310nm |
| Fiber band width | 3Gbps |
| The Maximum transmission distance of HDMI and Audio | 10KM/20KM/40KM/60KM |
| Input voltage | DC 12V,inside + outside - |
| Power consumption | HDMI receiver 4W HDMI transmitter 4W |
| Device size | 109.5*152*29.3mm(length*width*height) |
| Packing box size | 328*273*90mm(length*width*height) |
| Weight |
1CH 3KG/Pair 2CH 5KG/Pair 4Ch 6KG/Pair 8CH 10KG/Pair |
Industrial Ethernet Switch Overview
The LNK-HDMI Series HDMI Optical transmitter and receiver adopts the uncompressed digital HD video and high-speed digital optical fiber transmission technology advanced, It can transfer signal source(computer signal source, VGA signal source high digital DVD/DVR) to long distance terminal easily, with strong anti-interference performance, ensure the signal completed and stable.
Ordering Information
| Item | Description |
| LNK-HDMI-100 | HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
| LNK-HDMI-200 | HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
| LNK-HDMI-400 | HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
| LNK-HDMI-800 | HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
