E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| RJ45 Port And Speed: | 8x10/100/1000Base-TX 4x10/100/1000Base-TX Combo | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 8K | Weight: | 3.6KG |
| Dimensions (WxDxH): | 440mm X 305mm X 45mm (L X W X H) | Power Input: | DC 9-56V / AC100-240V |
| Operating Temperature: | -40℃~80℃ | Installation Mode: | Rack-mountable |

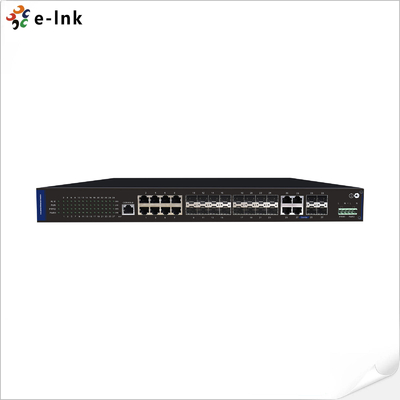

Network Managed Industrial 16-port 100/1000BASE-X SFP + 4-Port TP/SFP Combo + 8-port 10/100/1000BASE-T Ethernet Switch
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SFP interface fiber port, support single/dual fiber transmission
► Support 10K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 8KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
Industial Ethernet Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 8x10/100/1000Base-TX 4x10/100/1000Base-TX Combo |
| Fiber port and speed | 16x100/1000Base-FX SFP (Dual Mode, Auto Detection) 4x100/1000Base-FX SFP Combo |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 10K Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward(full/half duplex mode) |
| LED Indicator | |
| Power | Connect-always |
| RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber |
Link/Act: connect-always; Data exchange-twinkle |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 3 year warranty, lifetime technical support |
Industrial Ethernet Switch Overview
LNK-GYM7168G-SFP is a new generation Managed Industrial Ethernet Switch with 8-Port 10/100/1000Base-TX and 16-Port 100/1000Base-FX SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain. With dual power input design, LNK-GYM7168G-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 75°C.
Ordering Information
| Model | Description |
| LNK-GYM7168G-SFP | Managed Industrial 16-port 100/1000BASE-X SFP + 4-Port TP/SFP Combo + 8-port 10/100/1000BASE-T Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Rack Mount, Rack Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
