Product Details:
Payment & Shipping Terms:
|
| RJ45 Port And Speed: | 24x10/100/1000Base-TX | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 8K | Weight: | 1Kg |
| Dimensions (WxDxH): | 160mm X 130mm X 70mm (L X W X H) | Power Input: | DC 9-57V |
| Operating Temperature: | -40℃~80℃ | Installation Mode: | DIN Rail/Wall-mountable |

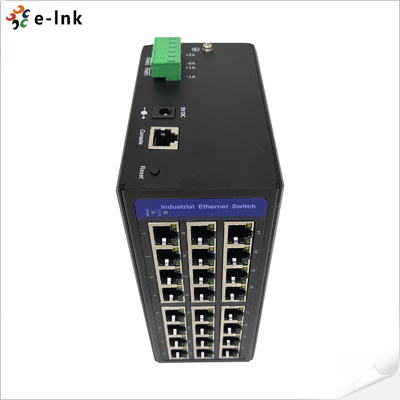

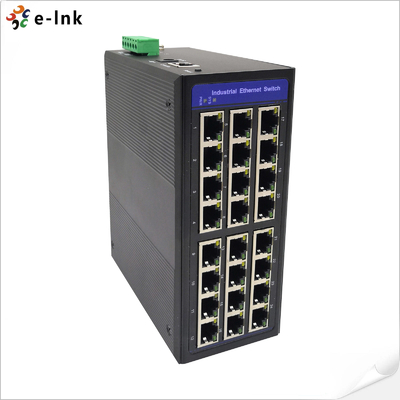

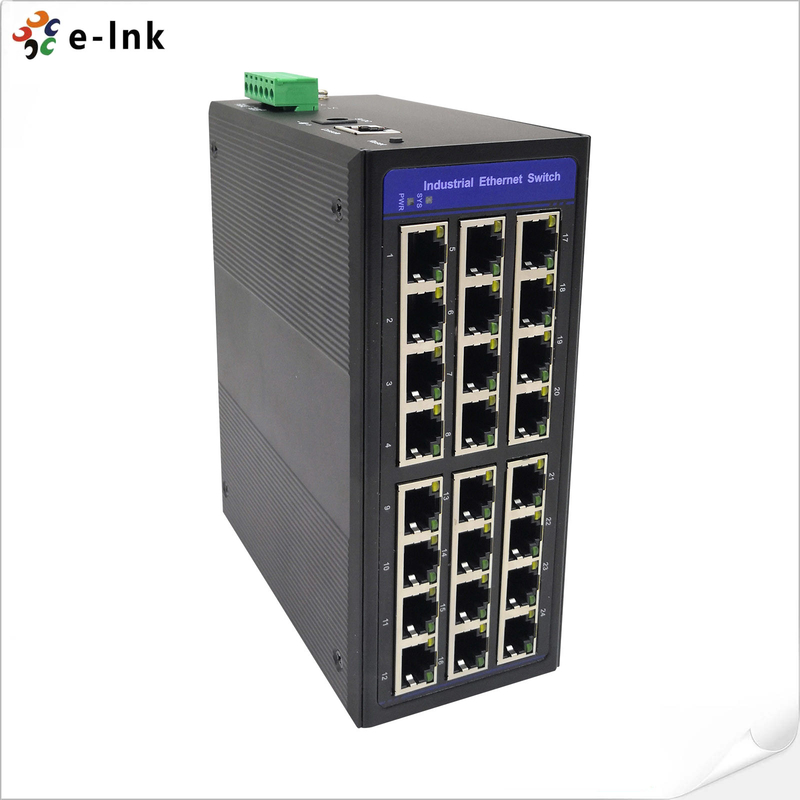

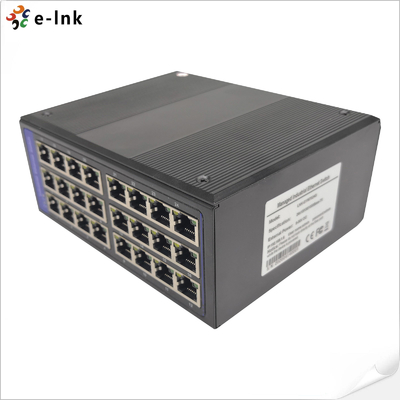

Managed Industrial 24-port 10/100/1000T Ethernet Switch
Industrial Ethernet Switch Advantages
► 24x10/100/1000Base-T Ethernet ports
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 10K bytes giant frame, compatible with various extension protocol
► 8K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
► Support IPv6 Protocol
► Electric 8KV surge protection,
► Status indicator, working state at a glanc
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
Industial Ethernet Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 24x10/100/1000Base-TX |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 10K Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward(full/half duplex mode) |
| LED Indicator | |
| Power | Connect-always |
| RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 9-57V |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 5 year warranty, lifetime technical support |
Industrial Ethernet Switch Overview
LNK-GYM7024G Series is a new generation industrial Managed Ethernet switch with 24-Port Ethernet ports that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. Positioned in the broadband network intervention market, it aims to offer users efficient bandwidth and reliable fiber optic network solutions for Ethernet data exchange, convergence, and long-distance optical transmission. The industrial switch boasts characteristics such as a compact size, fanless design, low power consumption, high reliability and stability, as well as ease of maintenance.
Ordering Information
| Model | Description |
| LNK-GYM7024G | Managed Industrial 24-Port 10/100/1000Base-T Ethernet Switch |
|
Mounting Options
|

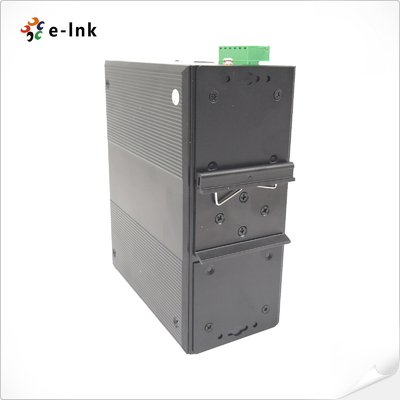

► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
