Product Details:
Payment & Shipping Terms:
|
| Fiber Port And Speed: | 8x100/1000Base-FX SFP (Dual Mode, Auto Detection) | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 8K | Weight: | 1KG |
| Dimensions (WxDxH): | 160mm X 130mm X 70mm (L X W X H) | Power Input: | DC 48-57V |
| Operating Temperature: | -40℃~80℃ | Installation Mode: | DIN Rail/Wall-mountable |

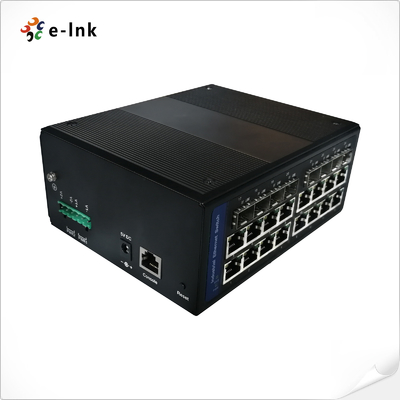

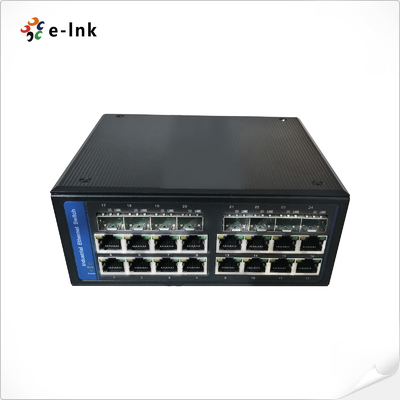

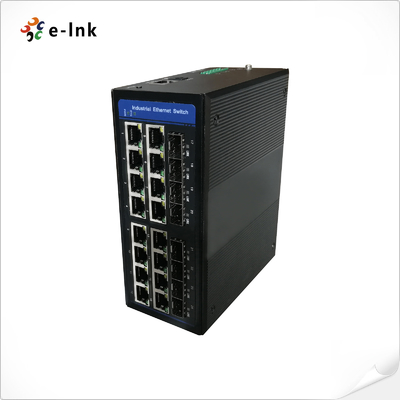

Industrial 16-port 10/100/1000T 802.3at PoE + 8-port 100/1000X SFP Managed Ethernet Switch
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Support 16K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 4KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
Industrial Ethernet Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 16x10/100/1000Base-TX 802.3at PoE |
| Exchange property | Delay time: < 7ps Backplane bandwidth: 48Gbps Packet forwarding rate: 28.51Mpps |
| PoE | |
| PoE Standard | 16x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| LED Indicator | |
| Power | Connect-always |
| RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber |
Link/Act: connect-always; Data exchange-twinkle |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 48-57V |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W (Not use PoE) |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 5 year warranty, lifetime technical support |
Industrial Ethernet Switch Overview

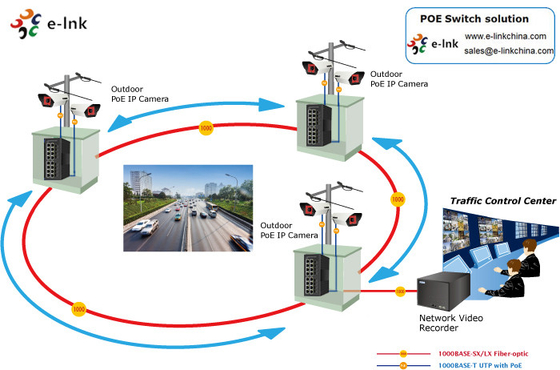

LNK-GYM7816GP-SFP Series is a new generation industrial Power over Ethernet Managed Ethernet switch with 16-Port 10/100/1000Base-T 802.3at PoE+ and 8-port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch exhibits various features including a compact size, fanless design, low power consumption, high reliability, stability, and ease of maintenance.
Ordering Information
| Model | Description |
| LNK-GYM7816GP-SFP | Managed 16-Port 10/100/1000Base-T PoE + 8-port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
