E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Fiber Port And Speed: | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 8K | Weight: | 2.5KG |

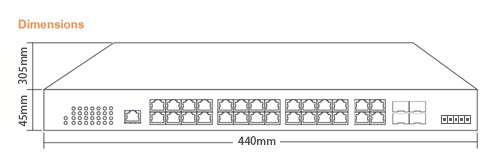

| Dimensions (WxDxH): | 440mm X 305mm X 45mm (L X W X H) | Power Input: | DC 12-48V |
| Operating Temperature: | -40℃~85℃ | Installation Mode: | Rack Mounting |

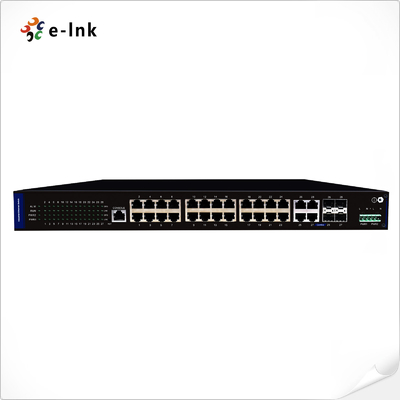

Managed Industrial 24-port 10/100/1000T + 4-port TP/SFP Combo Ethernet Switch
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► 24x10/100/1000Base-TX RJ45 ports, 4xTP/SFP Combo ports
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 10K bytes giant frame, compatible with various extension protocol
► 8K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
► Support IPv6 Protocol
► Electric 8KV surge protection, easy to use in outdoor environment
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
Industrial Ethernet Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 24 x 10/100/1000Base-TX +4 Combo 10/100/1000Base-TX |
| Fiber port and speed | 4 x 100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 10K Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 56 Gbps Packet forwarding rate: 148810 (64Byte) |
| LED Indicator | |
| Power | Connect-always |
| RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber |
Link/Act: connect-always; Data exchange-twinkle |
| Power Information | |
| Power access mode | Phoenix terminal |
| Redundant power input | DC 12-48V |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 5-Year warranty, lifetime technical support |
Industrial Ethernet Switch Overview

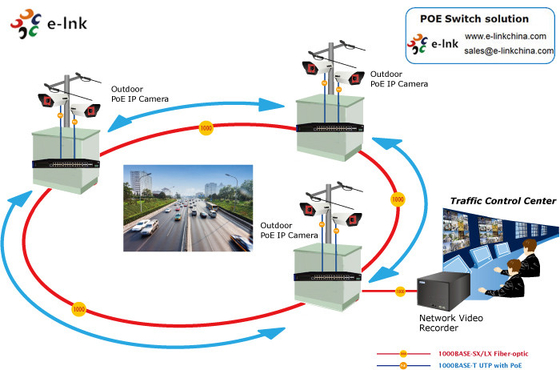

LNK-GYM7424G-SFP Series is a new generation industrial Ethernet Managed Ethernet switch with 24-Port 10/100/1000Base-T and 4-Port TP/SFP Combo that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. With dual power input design, LNK-GYM7424G-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
Ordering Information
| Model | Description |
| LNK-GYM7424G-SFP | Industrial Managed 24-Port 10/100/1000Base-T + 4-Port TP/SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Rack Mounting Installation |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
