E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Fiber Port And Speed: | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 8K | Weight: | 2.5KG |

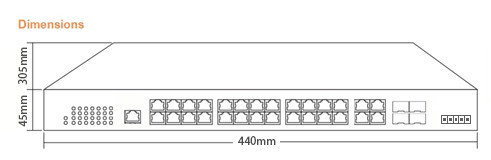

| Dimensions (WxDxH): | 440mm X 305mm X 45mm (L X W X H) | Power Input: | DC 48-57V |
| Operating Temperature: | -40℃~80℃ | Installation Mode: | Rack Mounting |

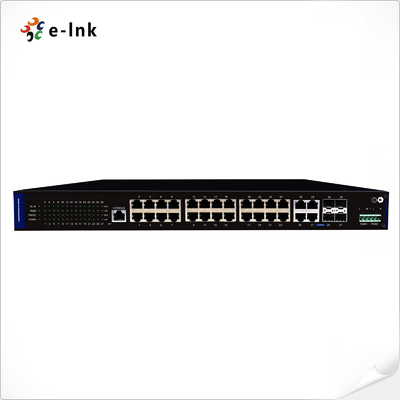

Managed Industrial 24-port 10/100/1000T 802.3at PoE + 4-port TP/SFP Combo Ethernet Switch
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► 24x10/100/1000Base-TX RJ45 ports, 4xTP/SFP Combo ports
► Support Auto-MDIX, and full/half duplex self-negotiation mode
► Support 10K bytes giant frame, compatible with various extension protocol
► 8K MAC address table
► Support IEEE802.3az energy efficient Ethernet technology
► Support IPv6 Protocol
► Electric 8KV surge protection, easy to use in outdoor environment
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
Industrial Ethernet Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 24x10/100/1000Base-TX 802.3at PoE+4 Combo 10/100/1000Base-TX |
| Maximum packet length | Up to 10K Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 1Gbps Packet forwarding rate: 148810 (64Byte) |
| PoE | |
| PoE Standard | 24 x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| LED Indicator | |
| Power | Connect-always |
| RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W (Not use PoE) |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 5-Year warranty, lifetime technical support |
Industrial Ethernet Switch Overview
LNK-GYM7424GP-SFP Series is a new generation industrial Power over Ethernet Managed Ethernet switch with 24-Port 10/100/1000Base-T 802.3at PoE+ and 4-Port TP/SFP Combo that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.
Ordering Information
| Model | Description |
| LNK-GYM7424GP-SFP | Industrial Managed 24-Port 10/100/1000Base-T PoE + 4-Port TP/SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Rack Mounting Installation |
| Power Options | ►480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
