E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Fiber Port And Speed: | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 8K | Weight: | 1.0KG |

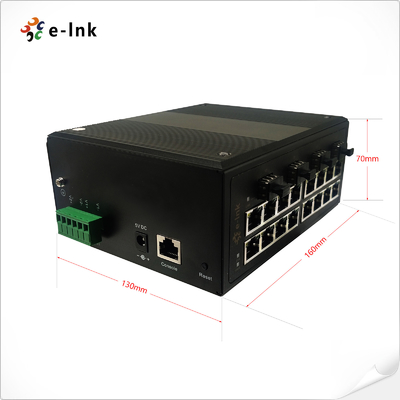

| Dimensions (WxDxH): | 160mm X 130mm X 70mm (L X W X H) | Power Input: | DC 9-56V / DC5V |
| Operating Temperature: | -40℃~80℃ | Installation Mode: | DIN Rail/Wall-mountable |

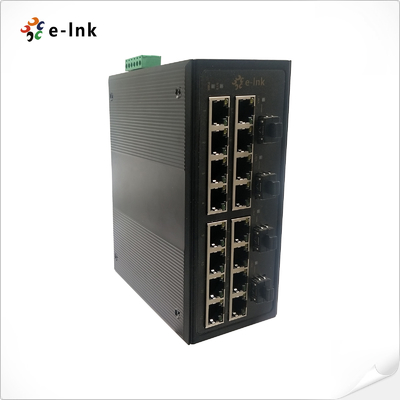

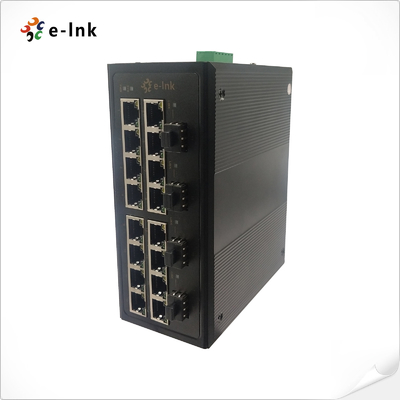

Managed Industrial 16-port 10/100/1000BASE-T + 4-port 100/1000BASE-X SFP Ethernet Switch
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Support 16K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 4KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
Industrial Ethernet Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 16x10/100/1000Base-TX |
| Fiber port and speed | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 10K Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 56Gbps Packet forwarding rate: 148810 (64Byte) |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 9-56V / DC5V |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 5 year warranty, lifetime technical support |
Industrial Ethernet Switch Overview

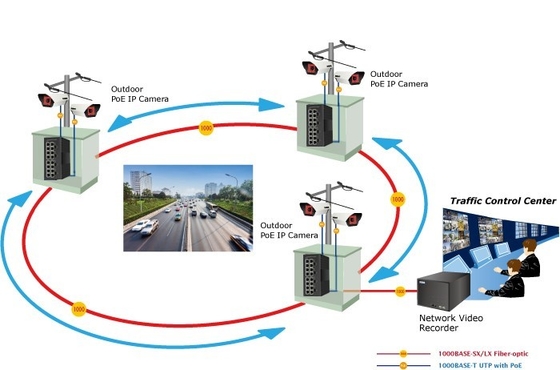

LNK-GYM7416G-SFP Series is a new generation industrial Managed Ethernet switch with 16-Port 10/100/1000Base-TX and 4-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. With dual power input design, LNK-GYM7416G-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate within the standard operating temperature range of -40 to 80°C and is enclosed in either rugged DIN rail or wall-mountable IP40 housings., these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
Ordering Information
| Model | Description |
| LNK-GYM7416G-SFP | Managed 16-Port 10/100/1000Base-T + 4-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
