Product Details:
Payment & Shipping Terms:
|
| Fiber Port And Speed: | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 8K | Weight: | 1.0KG |
| Dimensions (WxDxH): | 160mm X 130mm X 70mm (L X W X H) | Power Input: | DC 48-57V |
| Operating Temperature: | -40℃~80℃ | Installation Mode: | DIN Rail/Wall-mountable |

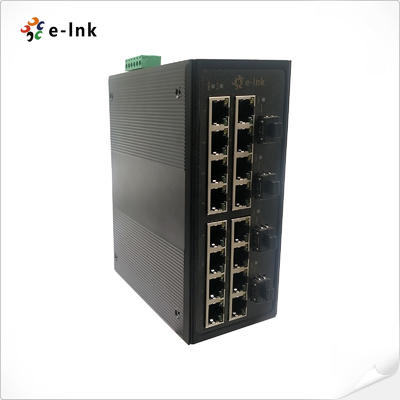

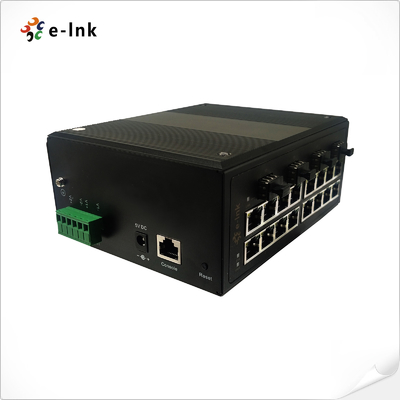

Industrial 16-port 10/100/1000T 802.3at PoE + 4-port 100/1000X SFP Managed Ethernet Switch
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Support 16K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 4KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
Industrial Ethernet Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 16x10/100/1000Base-TX 802.3at PoE |
| Fiber port and speed | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 10K Bytes |
| Transmission mode | Store and Forward(full/half duplex mode) |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 56Gbps Packet forwarding rate: 148810 (64Byte) |
| PoE | |
| PoE Standard | 16x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| LED Indicator | |
| Power | Connect-always |
| RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber |
Link/Act: connect-always; Data exchange-twinkle |
| Power Information | |

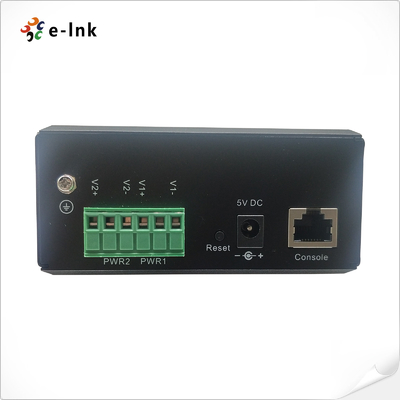

| Power access mode | Phoenix terminal, DC seat |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W (Not use PoE) |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 5 year warranty, lifetime technical support |
Industrial Ethernet Switch Overview
LNK-GYM7416GP-SFP Series is a new generation industrial Power over Ethernet Managed Ethernet switch with 16-Port 10/100/1000Base-T 802.3at PoE+ and 4-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. Positioned in the broadband network intervention market, it aims to offer users efficient bandwidth and reliable fiber optic network solutions for Ethernet data exchange, convergence, and long-distance optical transmission. The industrial switch boasts characteristics such as a compact size, fanless design, low power consumption, high reliability and stability, as well as ease of maintenance.
Ordering Information
| Model | Description |
| LNK-GYM7416GP-SFP | Managed 16-Port 10/100/1000Base-T PoE + 4-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
