Product Details:
Payment & Shipping Terms:
|
| Fiber Port And Speed: | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 8K | Weight: | 0.7KG |
| Dimensions (WxDxH): | 138mm X 106mm X 41mm (L X W X H) | Power Input: | DC 48-57V |
| Operating Temperature: | -40℃~80℃ | Installation Mode: | DIN Rail/Wall-mountable |

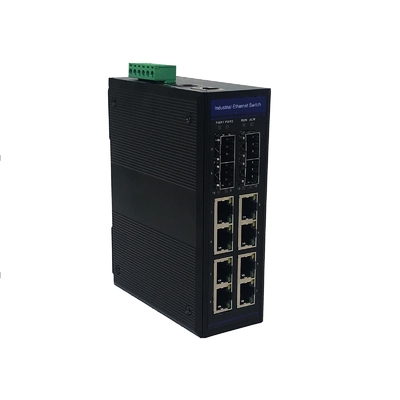

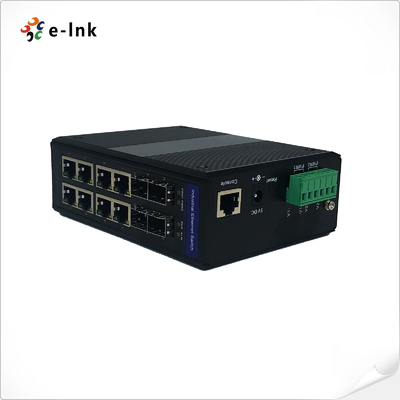

Industrial 8-port 10/100/1000T 802.3at PoE + 4-port 100/1000X SFP Managed Ethernet Switch

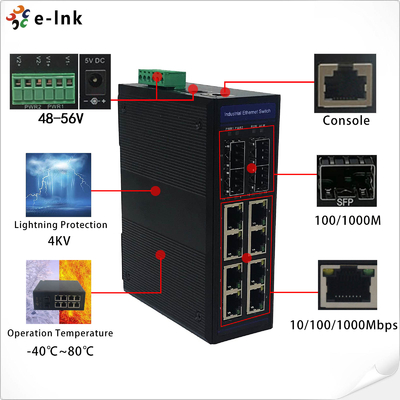

Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Support 10K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 8KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
Industrial Ethernet Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 8 x 10/100/1000Base-TX 802.3at PoE |
| Fiber port and speed | 4 x 100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Parameters | |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 10K Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| PoE | |
| PoE Standard | 8 x IEEE 802.3af /IEEE 802.3at PoE |
| Power budget | Max. PoE output power budget 30W |
| LED Indicator | |
| Power | Connect-always |
| RJ45 |
Link/Act: connect-always; Data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle |
| Fiber |
Link/Act: connect-always; Data exchange-twinkle |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 48-57V |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W (Not use PoE) |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Working Environment | |
| Operating Temperature | -40℃~80℃ |
Industrial Ethernet Switch Overview

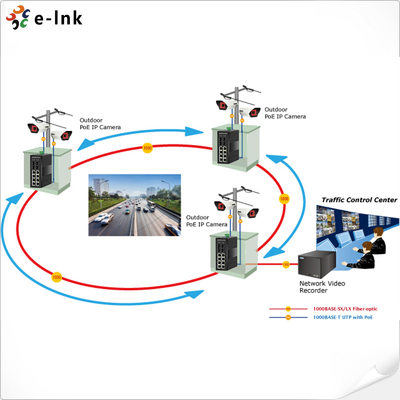

LNK-GYM7408GP-SFP Series is a new generation industrial Power over Ethernet Managed Ethernet switch with 8-Port 10/100/1000Base-T 802.3at PoE+ and 4-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. With dual power input design, LNK-GYM7408GP-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
Ordering Information
| Model | Description |
| LNK-GYM7408GP-SFP | Industrial 8-port 10/100/1000T 802.3at PoE + 4-port 100/1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |

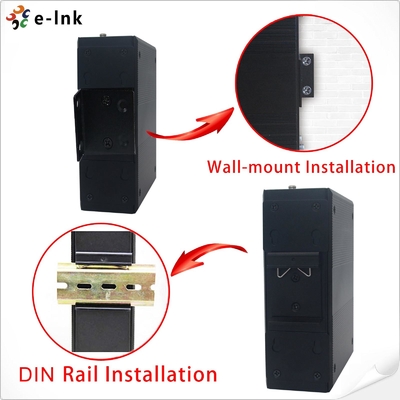

| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
