E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Fiber Port And Speed: | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 8K | Weight: | 0.7KG |
| Dimensions (WxDxH): | 138mm X 106mm X 41mm (L X W X H) | Power Input: | DC 9-56V / DC5V |
| Operating Temperature: | -40℃~80℃ | Installation Mode: | DIN Rail/Wall-mountable |

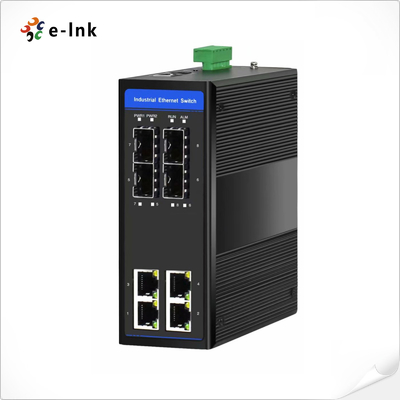

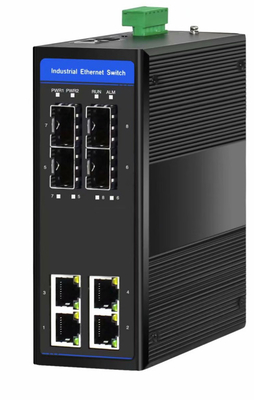

Managed Industrial 4-port 10/100/1000BASE-T + 4-port 100/1000BASE-X SFP Ethernet Switch
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Support 10K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 8KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
Industrial Ethernet Switch Technical Indexes
| Physical Port | |
| RJ45 port and speed | 4x10/100/1000Base-TX |
| Fiber port and speed | 4x100/1000Base-FX SFP (Dual Mode, Auto Detection) |
| Parameters | |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 10K Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward (full/half duplex mode) |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 20Gbps Packet forwarding rate: 14.88Mpps |
| Power Information | |
| Power access mode | Phoenix terminal, DC seat |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<15W |
| Physical Property | |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Working Environment | |
| Operating Temperature | -40℃~80℃ |
| Warranty | |
| MTBF | 500,000 hours |
| Defects Liability Period | 5-year warranty, lifetime technical support |
Industrial Ethernet Switch Overview
LNK-GYM7404G-SFP Series is a new generation industrial Managed Ethernet switch with 4-Port 10/100/1000Base-TX and 4-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. Positioned in the broadband network intervention market, it aims to offer users efficient bandwidth and reliable fiber optic network solutions for Ethernet data exchange, convergence, and long-distance optical transmission. The industrial switch boasts characteristics such as a compact size, fanless design, low power consumption, high reliability and stability, as well as ease of maintenance.
Ordering Information
| Model | Description |
| LNK-GYM7404G-SFP | Managed 4-Port 10/100/1000Base-T + 4-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
