Product Details:
Payment & Shipping Terms:
|
| Fiber Port And Speed: | 2x100/1000Base-X SFP (Dual Mode, Auto Detection) | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 16K | Weight: | 0.6KG |
| Dimensions (WxDxH): | 138mm X 106mm X 41mm (L X W X H) | Power Input: | DC 48-57V |

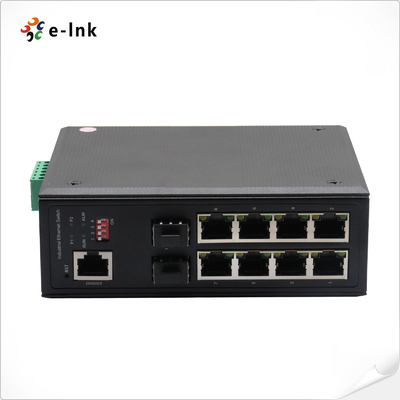

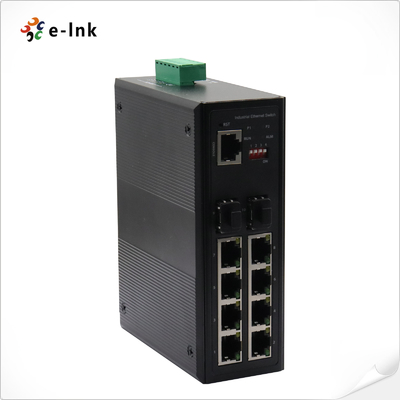

Industrial 8-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Managed Ethernet Switch
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Support 16K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 4KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
Industrial Ethernet Switch Technical Indexes
| RJ45 port and speed | 8x10/100/1000Base-T 802.3at PoE | |
| Packet buffer | 4Mbits | |
| Maximum packet length | Up to 1532Bytes | |
| MAC address table | 16K | |
| Transmission mode | Store and Forward (full/half duplex mode) | |
| PoE | ||
| PoE Standard | 8x IEEE 802.3af /IEEE 802.3at PoE | |
| Power budget | Max. PoE output power budget 30W | |
| Power Information | ||
| Overload protection | Yes | |
| Power reverse | Support | |
| Power consumption | Full-load<15W (Not use PoE) | |
| Physical Property | ||
| Protection grade | IP40 aluminum case | |
| Cooling mode | Natural cooling, no fan design | |
| Installation mode | DIN trail/wall-mountable | |
| Working Environment | ||
| Operating Temperature | -40℃~80℃ | |
| Warranty | ||
| MTBF | 100,000 hours | |
| Defects Liability Period | 5-year warranty, lifetime technical support | |
Industrial Ethernet Switch Overview

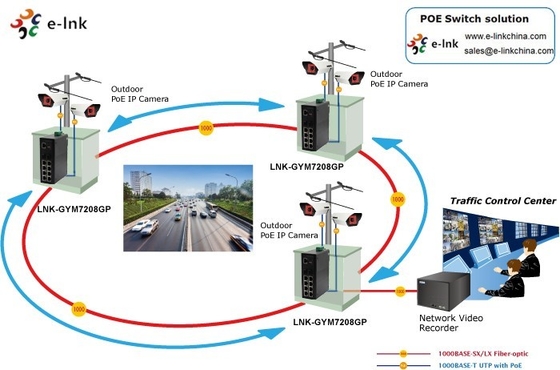

LNK-GYM7208GP-SFP Serie is a new generation industrial Managed switch with 8-Port 10/100/1000Base-T 802.3at PoE+ and 2-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch complies with various characteristics such as mini size, no fan, low power consumption, high reliability and stability, and easy to maintain.
Ordering Information
| Model | Description |
| LNK-GYM7208GP-SFP | Managed 8-Port 10/100/1000Base-T PoE + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |

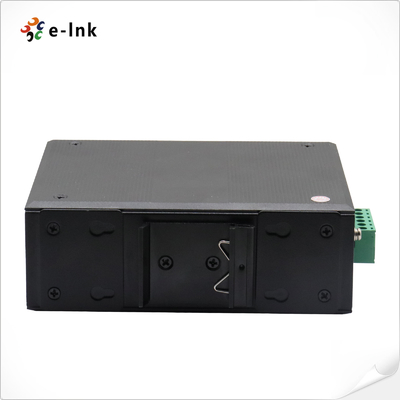

| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
