Product Details:
Payment & Shipping Terms:
|
| Fiber Port And Speed: | 2x100/1000Base-FX SFP (Dual Mode, Auto Detection) | Packet Buffer: | 4Mbits |
|---|---|---|---|
| MAC Table Size: | 16K | Weight: | 0.6KG |
| Dimensions (WxDxH): | 138mm X 106mm X 41mm (L X W X H) | Power Input: | DC 48-56V |

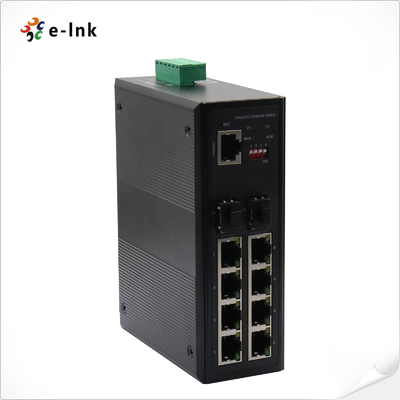

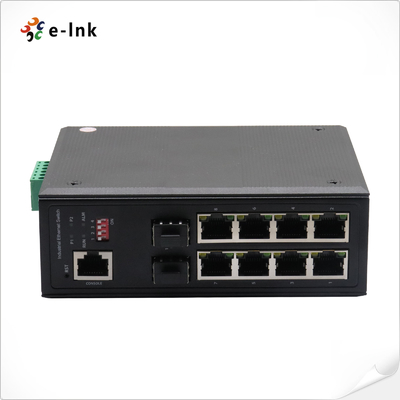

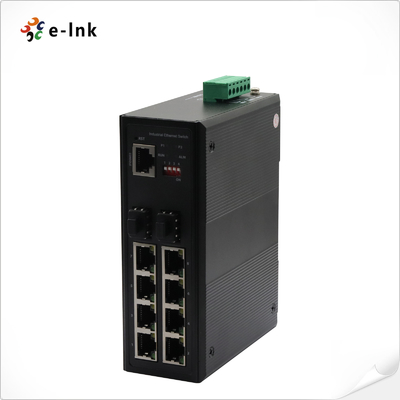

Industrial 4-port 10/100/1000T 802.3bt PoE + 4-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Managed Ethernet Switch
Industrial Ethernet Switch Advantages
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Supports 4-port 10/100/1000T 802.3bt PoE + 4-port 10/100/1000T 802.3at PoE, total PoE Power Budget up to 480 watts maximum
► Support 16K bytes giant frame, compatible with various extension protocol
► Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table
► IPv6 Protocol, Electric 4KV surge protection
► Complete status indicator, working state at a glance
► Power input polarity protection design, no worry about wrong operation
► Metal case, no fan design
Industrial Ethernet Switch Technical Indexes
| Physical Port | ||
| RJ45 port and speed |
4x10/100/1000Base-T 802.3bt PoE++ 4x10/100/1000Base-T 802.3at PoE+ |
|
| Packet buffer | 4Mbits | |
| Maximum packet length | Up to 1532Bytes | |
| MAC address table | 16K | |
| Transmission mode | Store and Forward (full/half duplex mode) | |
| Exchange property | Delay time: < 7μs Backplane bandwidth: 20Gbps Packet forwarding rate: 14.88Mpps |
|
| PoE | ||
| Power budget | Max. PoE output power budget 90W for single PoE port Total PoE Power Budget up to 480 watts maximum |
|
| Lightning protection | The Industrial Switch provides contact discharge of ±8KV DC and air discharge of ±15KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. | |
| LED Indicator | ||
| Power | Connect-always | |
| RJ45 | Link/Act: connect-always; data exchange-twinkle Speed light: 100Mbps-always; 10Mbps-twinkle | |
| Fiber | Link/Act: connect-always; data exchange-twinkle | |
| Power consumption | Full-load<15W (Not use PoE) | |
| Physical Property | ||

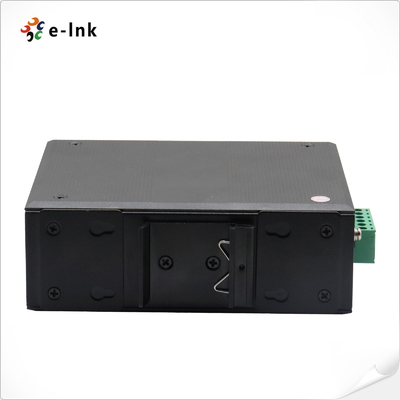

| Installation mode | DIN trail/wall-mountable | |
| Working Environment | ||
| Operating Temperature | -40℃~80℃ | |
| Warranty | ||
| MTBF | 100,000 hours | |
| Defects Liability Period | 5-year warranty, lifetime technical support | |
Industrial Ethernet Switch Overview
LNK-GYM7208GHP-SFP Serie is a new generation industrial Managed switch with 4-Port 10/100/1000Base-T 802.3bt PoE + 4-Port 10/100/1000Base-T 802.3at PoE and 2-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It aims to position itself in the broadband network intervention market by providing and enabling Ethernet data exchange, convergence, and long-distance optical transmission, utilizing efficient bandwidth and reliable fiber optic network solutions for users. The industrial switch features a mini size, lack of a fan, low power consumption, high reliability and stability, as well as ease of maintenance.
Ordering Information
| Model | Description |
| LNK-GYM7208GHP-SFP | Industrial 4-port 10/100/1000T 802.3bt PoE + 4-port 10/100/1000T 802.3at PoE + 2-port 100/1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ►480W 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
