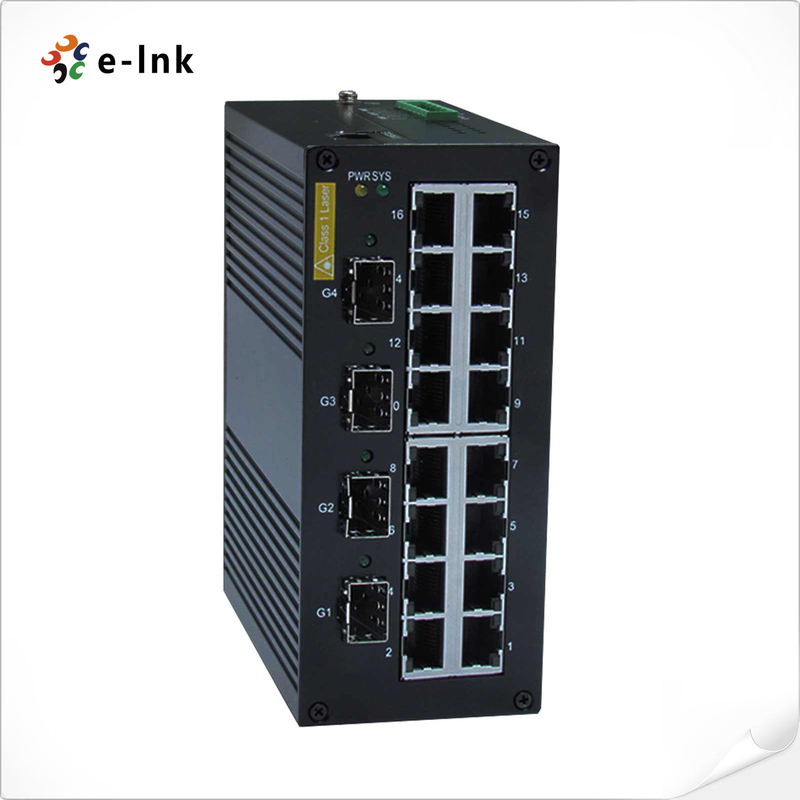

Managed Industrial Ethernet Switch: 16 x 10/100BASETX + 4 x 1000BaseX SFP

Large Image : Managed Industrial Ethernet Switch: 16 x 10/100BASETX + 4 x 1000BaseX SFP

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-GYM416G

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	To be negotiated
Packaging Details:	Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Model:	16x10/100BaseTX Ports+4x1000BaseX (SFP Slots)	Flow Control:	IEEE 802.3x Flow Control, Back Pressure Flow Control
MAC Table Size:	8K	Weight:	0.8KG
Dimensions (WxDxH):	60 X 112 X 138.5 Mm	Power Input:	24 VDC (18 To 36VDC), Redundant Dual Inputs

Managed Industrial Ethernet Switch: 16 x 10/100BASETX + 4 x 1000BaseX SFP

Industrial Ethernet Switch Advantages

► IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3x,IEEE802.3af standard

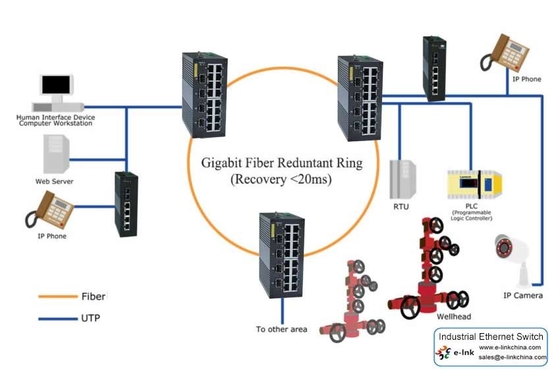

► 4 Gigabit ports for building dual Gigabit redundant rings

► Proprietary Protocol "Fi Ring" (recovery time <20ms) and RSTP/STP for network redundancy

► SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network

► Easy network management through web browser, CLI, Telnet /serial console, Windows utility, SNMP

► Industrial-grade design with -40 to +80℃ operating temperature and redundant power inputs

Industrial Ethernet Switch Technical Indexes

Benefits	Command Line Interface (CLI) for quickly configuration major managed functions
	FMC Ring Protocol "Fi Ring" (recovery time < 20ms) and RSTP/STP for network redundancy
	IGMP snooping for filtering multicast traffic
	Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
	Support port mirroring
	Support Access Control List (ACL)
	Storm control for any combination of multicast, broadcast and DLF traffic control
	Rich QoS features for data traffic control and management
	Port Trunk for optimum bandwidth utilization
	SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
	SNMPv1/v2c/v3 for different levels of network management
	RMON for efficient network monitoring and proactive capability
	Bandwidth management prevents unpredictable network status
	Lock port function for blocking unauthorized access based on MAC address
	Automatic alarm through e-mail, relay output
	Works with NMS FiVision (industrial network management software) for traffic monitoring and easy network troubleshooting
Protocols	IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, SNMP Inform, SNTP Server/Client
MIB	MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Switch Properties	Priority Queues: 4 Max. Number of Available VLANs: 256 VLAN ID Range: VID 1 to 4094 IGMP Groups: 256 MAC Table Size: 8K Packet Buffer Size: 2 Mbit
Interface	Fiber Ports: 1000BaseX (SFP slots), 100BaseFX RJ45 Ports: 10/100BaseTX auto negotiation Console Port: RS-232(RJ45 connector) Alarm Contact: 2 relay outputs with current carrying capacity of 1A@24V

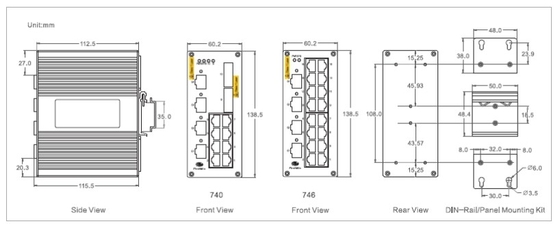

Mechanical Properties	Housing: Metal, IP30 protection Dimensions: 60 x 112 x 138.5 mm Weight: 760g Installation: DIN-Rail mounting, wall mounting

Industrial Ethernet Switch Overview

The LNK-GYM416G series are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). 4 Gigabit Ethernet ports are ideal for building dual Gigabit redundant ring. The "Fi Ring" redundant Ring (recovery time < 20ms), RSTP and STP can increase system reliability and your network availability.
