Product Details:
Payment & Shipping Terms:
|
| MAC Table Size: | 8K | Installation: | Din-Rail Mounting, Wall Mounting |
|---|---|---|---|
| Operating Temperature: | -40℃-85℃ | Weight: | 710g |
| Dimensions (WxDxH): | 138mm(L) X 112mm(W) X 60mm(H) | Input Voltage: | 24VDC(18-36VDC), Redundant Dual Inputs |

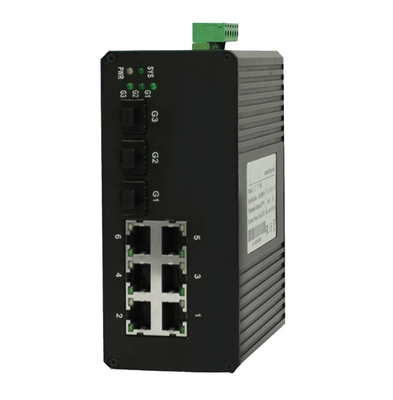

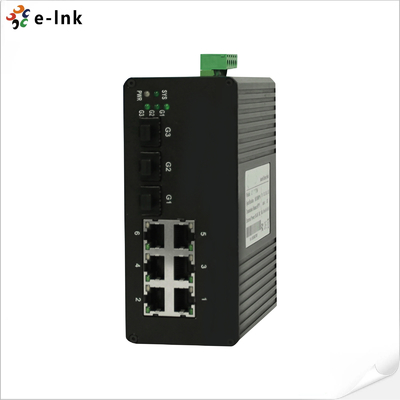

6 Ports Managed Industrial Ethernet Switch with 3-port 1000Base-X SFP ports and 6 10/100Base-T(X) ports
Industrial Ethernet Switch Advantages
►"OP-Ring" (recovery time<20ms), RSTP/STP, and MSTP for network redundancy
►SNMPv3, ieee802.1X, HTTPS and SSH to enhance network security
►Port-based VLAN, IEEE802.1Q VLAN and GVRP to ease network planning
► DHCP Option 82 for IP address assignment with different policies
► Ethernet/IP and Modbus/TCP industrial Ethernet protocol supported
►Lock port access by only authorized MAC address
►Port mirroring for online debugging
► QoS and ToS/DiffServ for flow control and management
Industrial Ethernet Switch Technical Indexes
| Parameter | Specifications |
| Physical Characteristics |
Housing: Aluminum Alloy material with IP40 Protection Dimension: 138mm(L) X 112mm(W) X 60mm(H) Weight: 710g Installation: Din-Rail mounting, Wall mounting |
| Switch Properties |
Priority Queues: 4 Maximum No of Available VLANs: 256 VLAN ID: 1-4094 IGMP Groups: 256 MAC Table Size: 8K Packet Buffer Size: 1M bit |
| Interfaces |
SFP Port: 1000Base-X interface RJ45 Port: 10/100Base-T(X) auto negotiation Console Port: rs-232(RJ45 connector) Alarm Contact: 1 replay outputs, supports IP/MAC conflict |
| Power |
Input Voltage: 24V DC(18-36VDC) Redundant dual inputs Input Current: <0.5A @24VDC Overload Current Protection: Present Reverse Polarity Protection: Present Redundant Protection: Present Connection: 1 removable 6-pin terminal blocks |
Industrial Ethernet Switch Overview
LNK-GYM306 Series Hardened Industrial Ethernet Switch is specially designed for industrial application, which provides fast and stable media conversion between 6x10/100BaseT(X) and 3x1000BaseFX. It also meets the requirements of long distance, high speed, and wide broadcast.
This industrial Ethernet switch, which is managed, is designed to meet the crucial industrial standards. Its reliable and straightforward operation, combined with resistance to vibration and shock, as well as a wide operating temperature range, allows it to adapt to a range of harsh environments.
