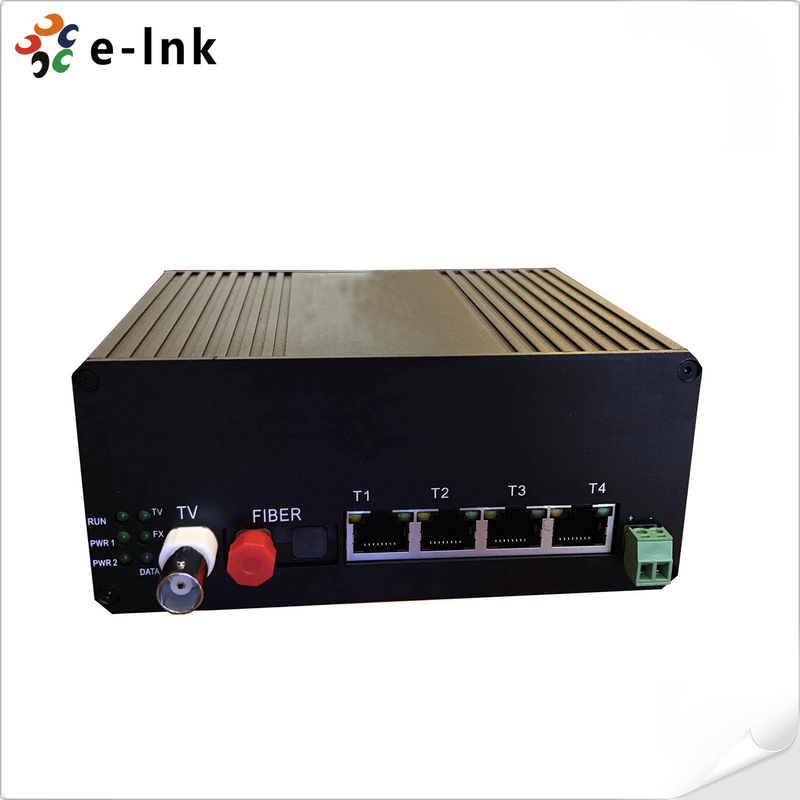

Rugged 4-Port Fast Ethernet + Video + RS485 + 1G Fiber Industrial Switch
Overview
The E-link LNK-GY4E1V1D Series is a physically isolated industrial Ethernet switch that
integrates 4x10/100M Ethernet, 1xVideo, 1xRS485, and 1xGigabit fiber uplink for secure and
efficient data transmission across multiple independent networks.
Built for demanding industrial applications, it enables simultaneous operation of private and public
networks without interference, ideal for video monitoring, automation, and DSLAM bandwidth
expansion.
Encased in an IP40-rated aluminum shell, it ensures high reliability, redundant power, and stable
operation from -40°C to +85°C in harsh field environments.
Features
4x10/100M isolated Ethernet ports with auto-negotiation and auto-MDI/MDI-X
Dedicated 1xBNC analog video input for real-time monitoring
1xRS485 data channel for control signal transmission
1xGigabit fiber uplink supporting multimode and single-mode up to 80km
Physical network isolation for enhanced data security and EMI protection
Redundant 24V DC dual power input with overload and polarity protection
IP40-rated aluminum enclosure, fanless and compact for industrial use
Wide operating temperature from -40°C to +85°C, supports DIN-Rail/wall mounting
Complies with EN50155, NEMA TS-2, and IEC industrial standards
Technical Indexes
| Parameter |
Specifications |
| Ports |
1 x Gigabit Fiber Port (FC default)
4 x 10/100M Ethernet Port with physical isolation to share 100M speed
1 x Analog Video
1 x RS485 Return Data
|
| Physical Characteristics |
Housing: Aluminum Alloy material with IP40 Protection
Dimension: 138mm(L) X 112mm(W) X 60mm(H)
Weight: 690g
Installation: Din-Rail mounting, Wall mounting
|
| Interfaces |
4 RJ45 Ports
Comply with IEEE802.3, IEEE802.3u, 10/100Base-T(X)
10/100Base-T(X) auto negotiation speed
Full/Half duplex mode
Auto MDI-MDI-X connection
Up to 100M Cat-5 transmission distance
1 BNC Port
Video format PAL/NTSC/SECAM
Video Impedance 75Ω
1 Data Port
Data Format RS485
1 Fiber Port
Comply with IEEE802.3u, 1000Base-FX
Rate: 1000Mbps
Wavelength: 1310nm/1550nm
Up to 500m transmission distance with multi-mode
Up to 20km,40km,60km,80km transmission distance with single-mode
SC/ST/FC interfaces optional
|
| Power |
Input Voltage: 24VDC(18-36VDC), Redundant dual inputs
Input Current: <0.5A @24VDC
Overload Current Protection: Support
Reverse Polarity Protection: Support
Redundant Protection: Support
Connection: 6-pin terminal blocks
|
| Environmental Limits |
Operating Temperature: -40℃-85℃
Storage Temperature: -40℃-85℃
Ambient Relative Humidity: 5%-95% (non-condensing)
|
| Approvals |
Safety:
UL 60950-1
EMI:
FCC Part 15 Subpart B Class A,EN 55022 Class A
EMS:
• EN61000-4-2 (ESD) , Level 3
• EN61000-4-3 (RS) , Level 3
• EN61000-4-4 (EFT) , Level 3
• EN61000-4-5 (Surge), Level 3
• EN61000-4-6 (CS) , Level 3
• EN61000-4-8, Level 3
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Industry: IEC61000-6-2
Rail: EN50155, EN50121-4
Traffic: NEMA TS-2
|
| Warranty |
5-year |

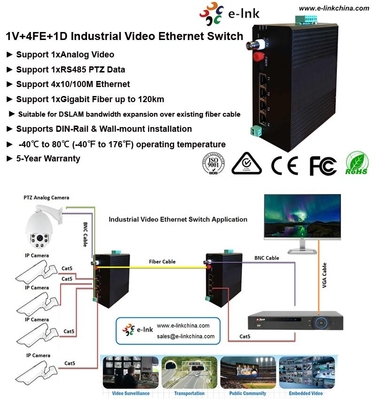

Application
