Product Details:
Payment & Shipping Terms:
|
| Interfaces: | 16 RJ45 Ports: 10/100/1000Base-T Auto Negotiation | MAC Address: | 8K |
|---|---|---|---|
| Operating Temperature: | -40 To 85°C | Processing Type: | Store And Forward |
| Dimensions (WxDxH): | 140mm(L) X 118mm(W) X 60mm(H) | Input Voltage: | 24V DC(12-48VDC) Redundant Dual Inputs |

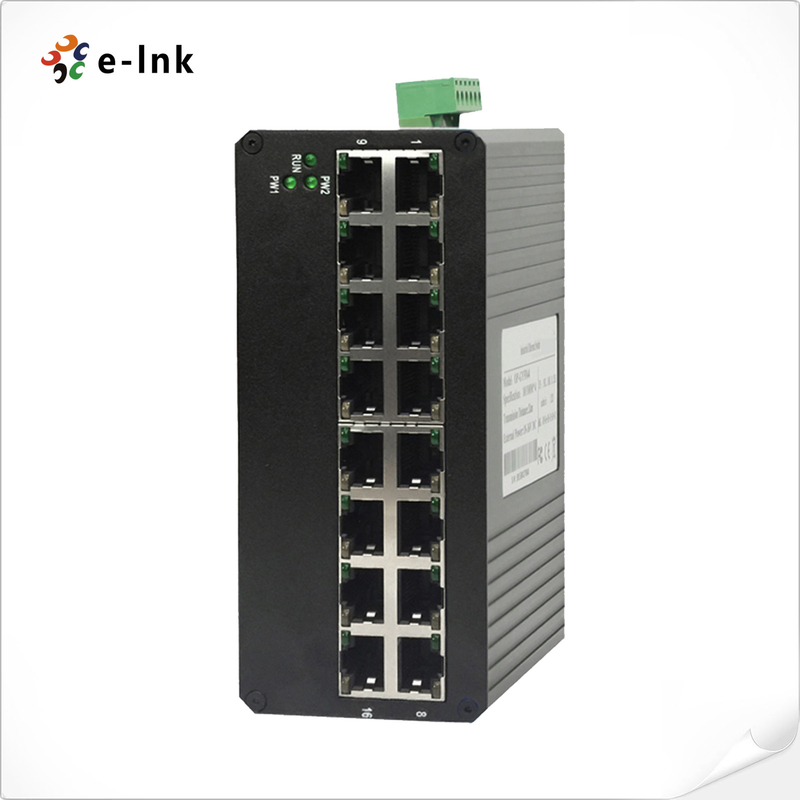

Unmanaged Industrial 16-Port 10/100/1000T Ethernet Switch
Industrial Ethernet Switch Advantages
►16-Port 10/100/1000Base-T RJ45
► IEEE802.3/ 802.3u/ 802.3ab/ 802.3x
►Support auto negotiation speed, F/H duplex mode, and auto send data control
► Plug-and-play, auto MDI/MDI-X connection
►Store and Forward 1000M
►Switching process type
► Broadcast storm protection
►Network work state LED indicator
Industrial Ethernet Switch Technical Indexes
| Parameter | Specifications |

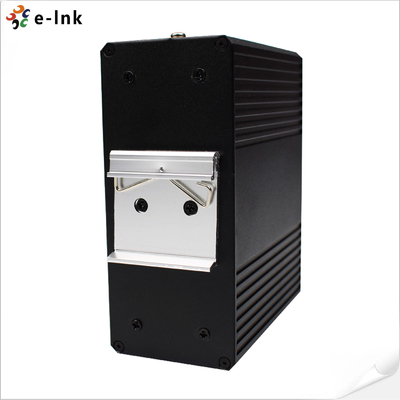

| Physical Characteristics | Housing: Aluminum Alloy material with IP40 Protection Dimension: 140mm(L) X 118mm(W) X 60mm(H) Weight: 710g Installation: Din-Rail mounting, Wall mounting |
| Switch Properties | MAC Table Size: 8K Packet Buffer Size: 4M bit Processing Type: Store and Forward Exchange Properties: 1488000pps (1000M) |
| Interfaces | 16 RJ45 Ports: 10/100/1000Base-T auto negotiation |
| Power | Input Voltage: 24V DC(12-48VDC) Redundant dual inputs Input Current: <0.5A @24VDC Overload Current Protection: Support Reverse Polarity Protection: Support |
Industrial Ethernet Switch Overview
This unmanaged industrial 16-Port 10/100/1000T Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-GY016G | Unmanaged Industrial 16-Port 10/100/1000T Ethernet Switch, standalone, Support DIN-Rail mounting and Wall mounting installation, 12~48V DC power input, not including power supply adapter |
