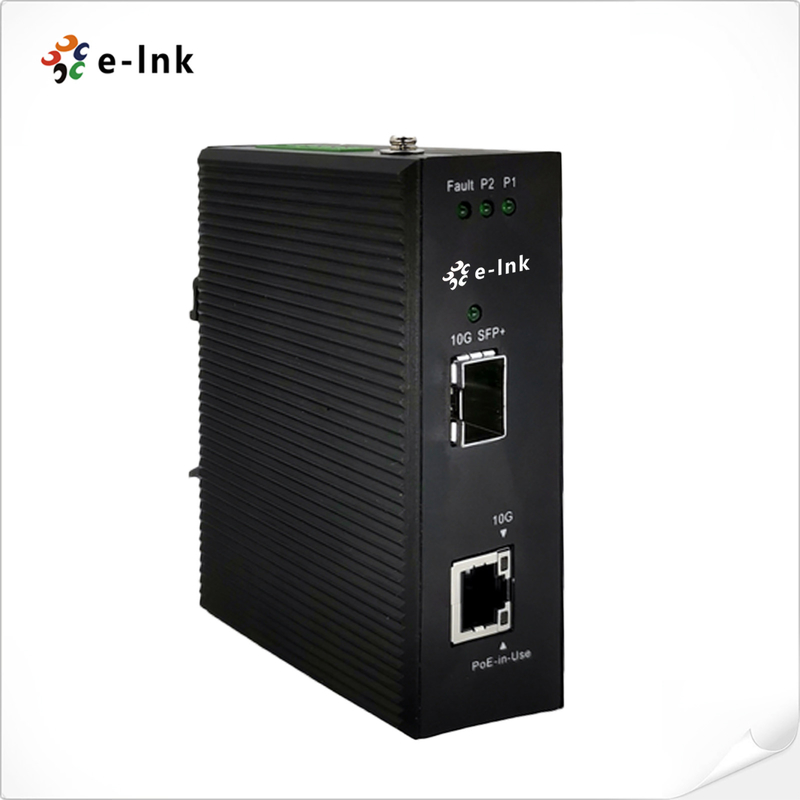

10G SFP+ to Multi-Gigabit PoE++ Converter 90W Industrial Media Bridge
Overview
The E-link LNK-10GHP Series is a next-generation industrial-grade 10G SFP+ to Multi-Gigabit
PoE++ Media Converter, built to deliver both ultra-high bandwidth and powerful PoE++ output
(up to 90W) for advanced networking devices. Designed for mission-critical deployments such as Wi-Fi
6 access points, surveillance backbones, and edge computing, it ensures seamless data and power
delivery in harsh industrial environments.
Compact, fanless, and IP40-rated, it provides 10G performance with flexible multi-speed compatibility
(10G/5G/2.5G/1G/100M), along with redundant DC power inputs for uninterrupted operation.
Features
10G SFP+ to 10G/5G/2.5G/1G/100M RJ45 intelligent conversion
IEEE 802.3bt PoE++ up to 90W for high-power PDs (Wi-Fi 6 APs, PTZ cameras, etc.)
Compact fanless aluminum housing, IP40-rated for industrial reliability
Wide temperature operation from -40°C to +80°C
Redundant 44–57VDC dual power inputs with reverse polarity protection
DIN-Rail & Wall mount flexibility for diverse installations
High-speed 20Gbps switching fabric with non-blocking performance
Comprehensive ESD and surge protection, compliant with CE/FCC/RoHS
Technical Indexes
| Ethernet |
| Standards: |
IEEE 802.3u Fast Ethernet |
| IEEE 802.3ab Gigabit Ethernet |
| IEEE 802.3bz 2.5G/5GBASE-T |
| IEEE 802.3an 10GBASE-T |
| IEEE 802.3ae 10Gbps Ethernet |
| IEEE 802.3x Full-Duplex Flow Control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| IEEE 802.3bt 4-pair Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus PSE |
| IEEE 802.3af Power over Ethernet Plus |
| Flow Control: |
IEEE 802.3x pause frame for full duplex |
| Switch Fabric: |
20Gbps/non-blocking |
| Network Cables |
10G/5G/2.5G/1G/100M Base-T:
10G - Cat 6A/7
5G - Cat 6/6A/7
2.5G/1G - Cat 5e/6/6A/7
100M – Cat 5/5e/6/6A/7
Cat 5/5e/6/6A/7 UTP cable (max 100 meters)
EIA/TIA-568 100-ohm STP (max 100 meters)
10GBase-LR/SR/BX:
50/125um or 62.5/125um multi-mode fiber optic cable, up to 300m
9/125um single-mode fiber optic cable, up to 80km
|
| Interface |
| Connector: |
1 x 10G/5G/2.5G/1G/100M Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function |
| Optical Port: |
1 x 10GBase-X SFP+ interface |
| PoE (Power over Ethernet) |
| Standard: |
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
|
| Port: |
RJ45 |
| PoE Power Output: |
802.3bt PoE++ : 90W |
| PoE Power Supply Type: |
End-span + mid-span |
| Power Pin Assignment: |
End-span: 1/2 (-), 3/6 (+);
mid-span: 4/5 (+), 7/8 (-)
|
| PoE Power Budget: |
90 watts@44~57V DC input |
| Environmental |
| Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: |
5% to 95% non-condensing |
| MTBF |
> 100,000 hrs |
| Electrical and Mechanical |
| Input Power: |
44~57VDC (Terminal Block) |
| Power Consumption: |
System ON without loading: 48V DC: 4.36W
Full loading with PoE++: 48V DC: 98W
|
| Power Input Overload: |
Automatic Resettable |
| Reverse Polarity: |
Present |
| Dimensions (WxDxH): |
3.03 x 1.48 x 4.21 in (77 x 37.5 x 107mm) |
| Weight: |
270g |
| Casing: |
Aluminum Case |
| Mounting Options: |
DIN-Rail and Wall-Mount |
| LED Indicators: |
| P1/P2: |
Power Status |
| Fault: |
Fault Alarm |
| 10G: |
10G Ethernet Link Status |
| 10G SFP+: |
10G SFP+ Link Status |
| Regulatory Approvals |
| ISO9001, CE, FCC, RoHS |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55032:2017 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model |
Description |
| LNK-GY10GP-SFP |
Industrial 10GBase-X SFP+ to 10G/5G/2.5G/1G/100M Base-T 802.3bt PoE++ Media Converter |
| SFP+ Options |
► SFP+ option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP+ module is to be purchased separately. |
| Mounting Options |
► Default DIN-Rail Bracket installed; |
| Power Options |
► 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately
|

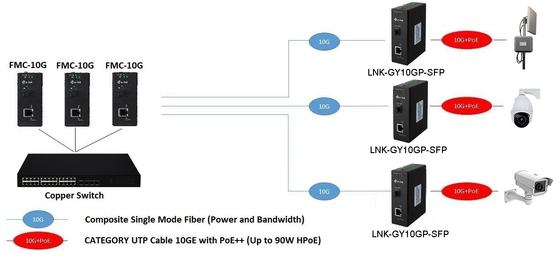

Application
Method 1: Single sided - extending the reach of an optical switch.
Method 2: Double-sided - extending the reach of a copper-based switch.
