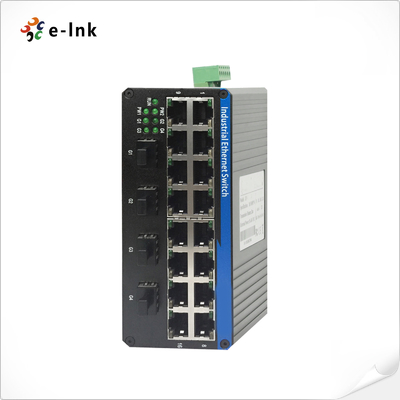

Industrial 20-Port Ethernet Switch with 16 Fast RJ45 + 4 Gigabit SFP Ports
Overview
The LNK-GY416-SFP is a rugged industrial-grade Ethernet switch designed for reliable data
transmission across harsh environments. Featuring 16×10/100Base-TX ports and 4×1000Base-SFP
uplinks, it delivers a seamless mix of copper and fiber connectivity for flexible industrial networking.
Built with an IP40-rated aluminum enclosure, the switch ensures durability, high EMI/EMS protection,
and fanless heat dissipation. Dual redundant 24VDC power inputs safeguard continuous operation,
while its wide -40°C to +80°C temperature range makes it ideal for factory automation, power utilities,
and transportation systems requiring stable and high-speed communication.
Features
20-Port Design: 16 Fast Ethernet (RJ45) + 4 Gigabit SFP fiber ports
High Reliability: Fanless design with excellent heat dissipation
Flexible Fiber Options: Supports both single-mode and multi-mode SFP modules
Industrial Protection: IP40-rated aluminum alloy housing, anti-vibration and shock resistant
Redundant Power Inputs: Dual 24VDC (18–36V) with reverse polarity protection
Extended Temperature Range: -40°C to +80°C for harsh environments
Plug & Play Operation: Auto-negotiation and MDI/MDI-X for easy installation
Standards Compliance: IEEE802.3, 802.3u, 802.3x for stable data transmission
Surge & ESD Protection: Built to meet EN61000-4-5 and EN61000-4-2 standards
Compact Size: Easy DIN-rail or wall-mount installation for limited-space setups
Technical Indexes
| Parameter |
Specifications |
| Standard |
IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3x for Flow control |
| Switch Properties |
MAC Table Size: 2K Packet Buffer Size: 1Mbit
Processing Type: Store and Forward
Exchange Properties: 148800pps (100M)
|
| RJ45 port rate |
16 x RJ45 Ports: 10/100BaseT(X) auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection |
| Fiber Ports |
4 x 1000BASE-SFP ports |
| Transmission |
Twisted pair: 100m (Standard CAT5/CAT5e cable)
Fiber: Depends on SFP
|
| Power Input options |
Input Voltage: 24VDC (18~36V DC), Redundant dual inputs
Opposite connection protection
|
| Power Consumption |
Max. 7 watts/23.9BTU (Ethernet full loading) |
| Environmental Limits |
Operating Temperature: -40℃ to +80℃
Storage Temperature: -45℃ to +85℃
Relative Humidity: 5% to 95% (non-condensing)
|
| Mechanical Dimension |
Dimensions:138 x 112 x 60 mm (LxWxH)
House Protection: IP40 protection, Aluminium Alloy
Installation: DIN-Rail or wall mounting
Weight: 670g
|
| Approvals |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
• EN61000-4-2 (ESD),Level 3
• EN61000-4-3 (RS),Level 3
• EN61000-4-4 (EFT),Level 3
• EN61000-4-5 (Surge),Level 3
• EN61000-4-6 (CS),Level 3
• EN61000-4-8,Level 3
Shock: IEC 60068-2-27
Free Fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
|
