Product Details:
Payment & Shipping Terms:
|
| Interface: | 4 X 10/100/1000M Copper RJ-45 Ports, 1 X 1000M RJ45 Port + 1 Uplink Gigabit SFP Port | Power Pin Assignment: | 1/2+;3/6- |
|---|---|---|---|
| Operating Temperature: | -40℃~80℃ | PoE Standard: | Supports Both IEEE802.3af And IEEE802.3at |
| Dimensions (WxDxH): | 139mm×109mm×50mm | Bandwidth: | 1.2Gbps |

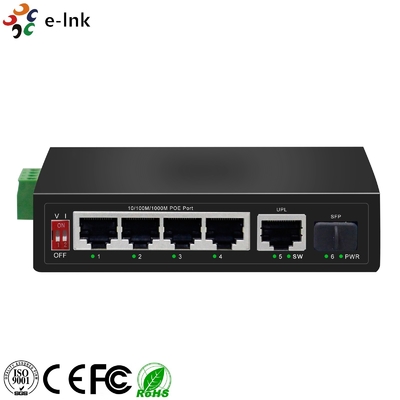

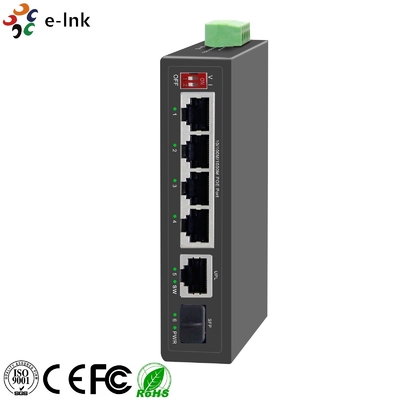

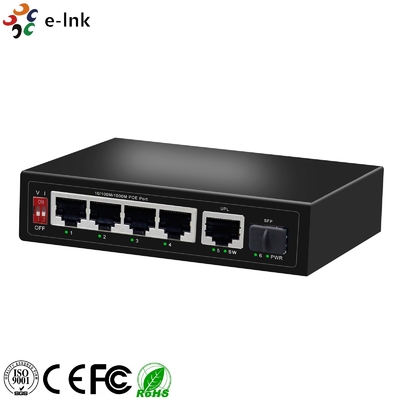

4-port 10/100/1000BASE-T PoE + 1-port 1000BASE-X SFP + 1-port 1000BASE-T Industrial 250m PoE Switch
Industrial Ethernet Switch Advantages
► Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
► It will give the speed of 10Mbps at 250meter when connect IP cameras
► 4*10/100/1000Base-TX POE port and 1 Uplink 1000M Ethernet slot+1 Uplink Gigabit SFP
►10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MD
Industrial Ethernet Switch Technical Indexes
| Product Name | Unmanaged 6 ports Gigabit Industrial 250m PoE Switch |
| Product Model | LNK-GYT411GP-SFP |
| Interface | 4 x 10/100/1000M copper RJ-45 ports, 1 x 1000M RJ45 port + 1 Uplink Gigabit SFP port |
| Network Protocols |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.1D Spanning Tree Protocol |
| Other parameters | |
| PoE Specification | PoE Standard: Supports both IEEE802.3af and IEEE802.3at |
|
Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
| PoE port Auto detect AF/AT devices | |
| PoE Port Output Voltage: DC48V | |
| Power Pin Assignment:1/2+;3/6- | |
| Network Media |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| Fiber Media |
Multi-mode: 1310nm, 2Km Single-mode: 1310nm, 20Km; 1550nm, 40/60/80Km |
| Performance Specification | Bandwidth: 1.2Gbps Packet Buffer Memory:1M Packet Forwarding Rate:1488000pps/port Address Table: 1K |
| Forwarding Mode | Store-And-Forward |
| Mechanical Structure |

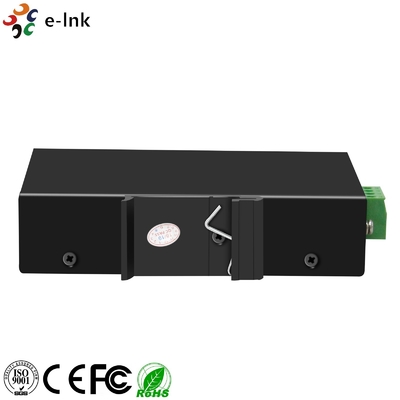

Shell: IP30 protect grade, metal shell Installation: DIN-Rail or Wall mounts |
| Certification | CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 (CISPR 22), Class B |
| MTBF | 300,000 hours |
| Warranty | 5 years |
Industrial Ethernet Switch Overview
LNK-GYT411GP-SFP Series is 250m Industrial PoE Switch with 4-port 10/100/1000Base-TX, 1-port 1000BASE-X SFP and 1-port 1000BASE-T uplink. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The product fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability. The product supports one key VLAN mode, can achieve VLAN, QoS priority after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Ordering Information
| Model | Description |
| LNK-GYT411GP-SFP | 4-Port 10/100/1000Base-T PoE(up to 250m) + 1-Port 1000Base-T + 1-Port 1000Base-X SFP Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
