Product Details:
Payment & Shipping Terms:
|
| Connector: | 2x M22 Shielded RJ-45 | Power Pins: | 4/5(+),7/8(-) And 1/2(+),3/6(-) |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 90~264VAC |
| Power Consumption: | 95W | Weight: | 3.6Kg |

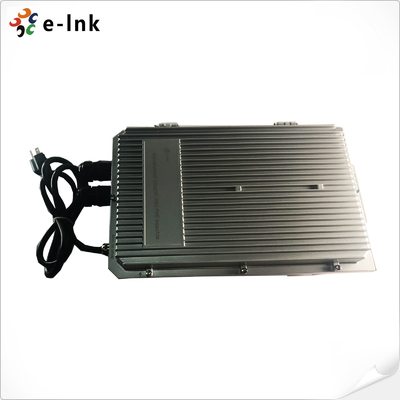

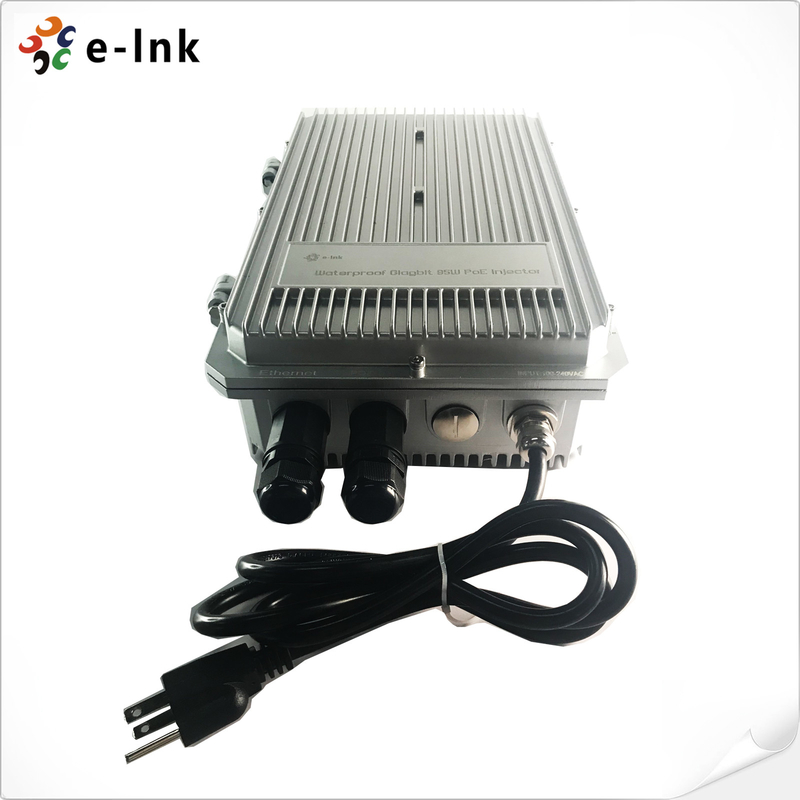

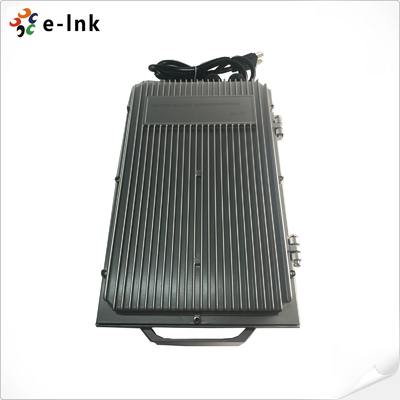

95W Outdoor Industrial IP67 Waterproof 802.3bt PoE+ Injector
Industrial Ethernet Switch Advantages
► Support 10/100/1000Base-TX
► IEEE 802.3af/at/bt compliant
► Outdoor using, power directly
► Provide signal and PoE output, lightning protection 6KV
► Wide temperature design: -40℃ to +80℃
► Metal casing, waterproof, dustproof, IP67
► Sealing gasket past extension, bearing, corrosion, aging test
► Plug-and-play installation
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T |

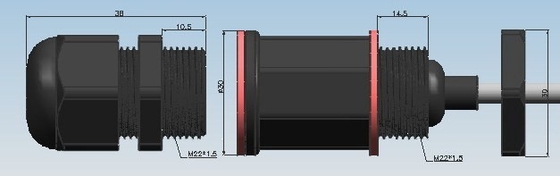

| Connector: | 2x M22 Shielded RJ-45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Output PoE Power: | 55VDC 1750mA |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at/bt |
| Port: | M22 Shielded RJ-45 |
| Max. Power per Port: | 95W Max |
| AC Surge Protection | |
| Line-Earth 1.2/50us (8/20us): | 6KV |
| Line-Line 1.2/50us (8/20us): | 4KV |
| PoE Surge Protection | |
| Protected line: | 1,2,3,4,5,6,7,8 |
| Common mode surge protection(10/700us): | 6KV |
| Differential mode surge protection (10/700us): | 1.5KV |
| Mechanical | |
| Dimensions (LxWxH): | 304 x 184 x 75 mm (inner size) |
| Casing: | Aluminum Case |
| Color: | Silver |
| Mounting Options: | Pole-Mount |
Industrial Ethernet Switch Overview
With industrial-level IP67-rated aluminum case, the LNK-IPOE-95W provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 80 degrees C. These features guarantee the utmost reliability for mission-critical applications in all challenging environments.

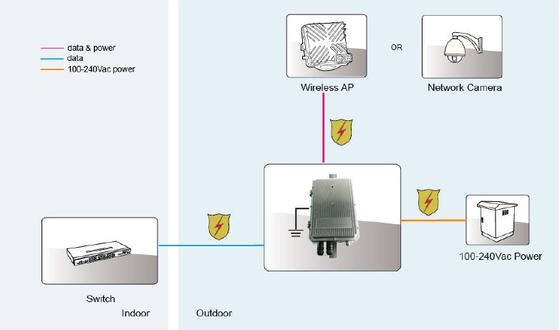

LNK-IPOE95W is designed for outdoor using, which works with 90-264VAC input. It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables. It is especially suitable for working in complex power situations. It is easy to install with installation kit LNK-POT-MBK, no need to open equipment.
Ordering Information
| Model | Description |
| LNK-IPOE-95W | 95W Outdoor Industrial IP67 Waterproof 802.3bt PoE+ Injector |
| Mounting Options | ► Pole-mounted (installation kit needs to be purchased separately) |

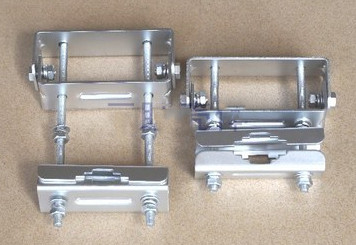

| LNK-POT-MBK | Pole-Mount installation kit |
