E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Connector: | 2x M22 Shielded RJ-45 | Power Pins: | 4/5(+),7/8(-) |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 90~264VAC |
| Power Consumption: | 30W | Weight: | 3.6Kg |

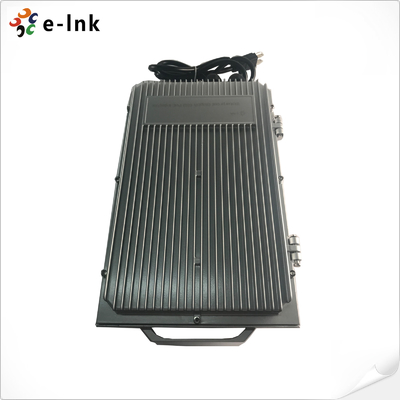

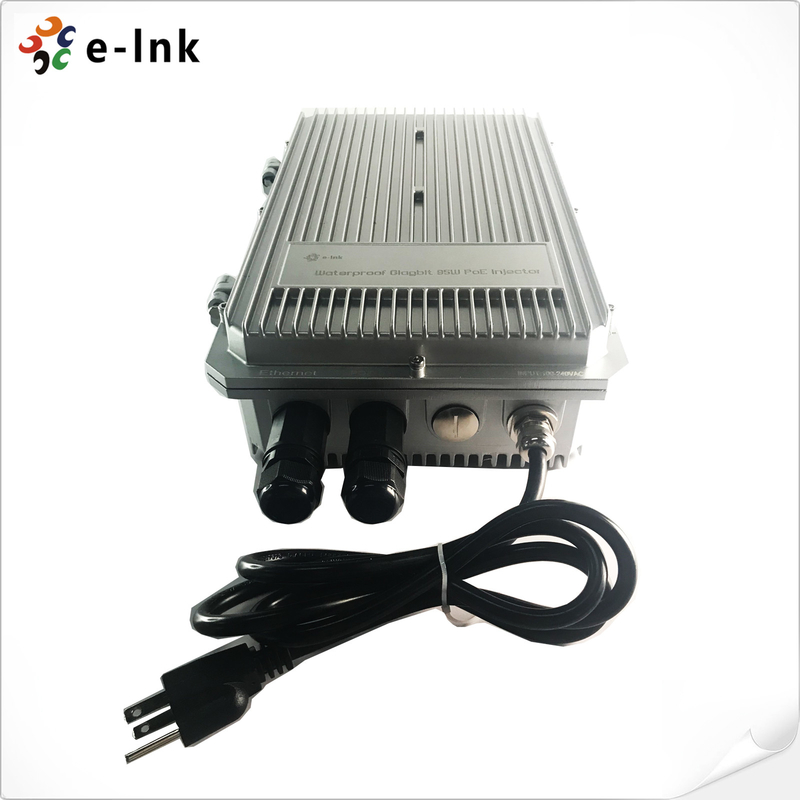

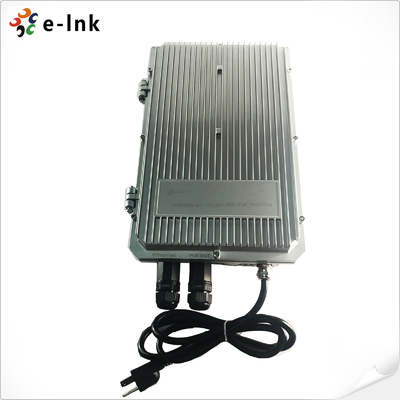

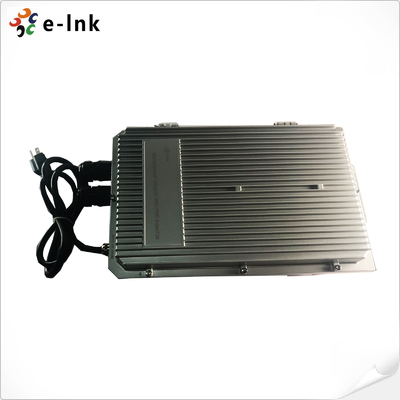

30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector
Industrial Ethernet Switch Advantages
► Support 10/100/1000Base-TX
► IEEE 802.3af/at compliant
► Outdoor using, power directly
► Provide signal and PoE output, lightning protection 6KV
► Wide temperature design: -40℃ to +80℃
► Metal casing, waterproof, dustproof, IP67
► Sealing gasket past extension, bearing, corrosion, aging test
► Plug-and-play installation
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | 10/100/1000Base-T |

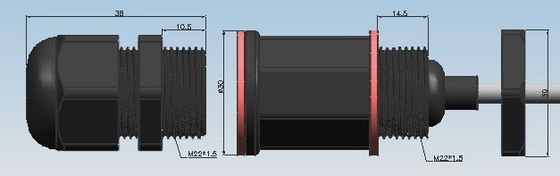

| Connector: | 2x M22 Shielded RJ-45 |
| Environmental | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | M22 Shielded RJ-45 |
| Max. Power per Port: | 30W Max |
| AC Surge Protection | |
| Line-Earth 1.2/50us (8/20us): | 6KV |
| Line-Line 1.2/50us (8/20us): | 4KV |
| PoE Surge Protection | |
| Protected line: | 1,2,3,4,5,6,7,8 |
| Common mode surge protection(10/700us): | 6KV |
| Differential mode surge protection (10/700us): | 1.5KV |
| Mechanical | |
| Dimensions (LxWxH): | 304 x 184 x 75 mm (inner size) |
| Casing: | Aluminum Case |
| Color: | Silver |
| Mounting Options: | Pole-Mount |
Industrial Ethernet Switch Overview
E-link LNK-IPOE-30W Industrial IP67-rated Single-port 802.3at PoE Injector provides a maximum of up to 30 watts for each PoE output port, transmitting both the Gigabit Ethernet data and 802.3at PoE power over the UTP cable. It is specifically designed for such outdoor powered devices (PDs) as PTZ network cameras, PTZ speed dome cameras, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need a higher power to work stably.
With industrial-level IP67-rated aluminum case, the LNK-IPOE-30W provides a high level of immunity against electromagnetic interference, and is able to protect itself from dust and water ingress and to operate under the temperature range from -40 to 80 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.
Ordering Information
| Model | Description |
| LNK-IPOE-30W | 30W Outdoor Industrial IP67 Waterproof 802.3at PoE+ Injector |
| Mounting Options | ► Pole-mounted (installation kit needs to be purchased separately) |

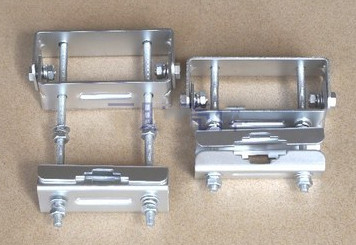

| LNK-POT-MBK | Pole-Mount installation kit |
