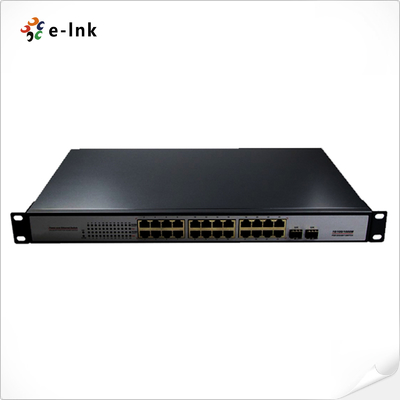

24-Port Gigabit PoE Switch with 2 Fiber Uplinks 600W Power Budget Fanless

Large Image : 24-Port Gigabit PoE Switch with 2 Fiber Uplinks 600W Power Budget Fanless

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-2024GP-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	To be negotiated
Packaging Details:	PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Connector:	3 Bits Terminal Block	MAC Address:	8K
Operating Temperature:	-20~60℃ (wide Temperature Optional)	Input Power:	110~220VDC（100~300VDC）Or100~240VAC（85~264VAC）
Dimensions (WxDxH):	440 X 275 X 44.5mm	Weight:	7.8 Kg (Gross Weight)
Highlight:	24-port PoE Ethernet switch , 2 SFP fiber Ethernet switch , gigabit PoE switch with warranty

24-Port Gigabit PoE Switch with 2 Fiber Uplinks 600W Power Budget Fanless

Overview

The LNK-2024GP-SFP is a robust 24-port Gigabit PoE Ethernet switch with 2 fiber uplink slots, engineered

for IP surveillance, wireless access, and enterprise networking. Each PoE port delivers up to 25.5W power,

totaling 600W, enabling simplified deployment of high-demand devices. Designed with a fanless, low-power,

and EMC4-grade architecture, it ensures reliable operation in harsh environments. The rackmount metal

housing, redundant power options, and extended temperature support make it ideal for data centers,

campuses, and industrial networks.

Features

High Capacity: 24×10/100/1000 RJ45 ports with PoE+ + 2×1000FX fiber uplinks

Power Delivery: Supports IEEE 802.3af/at PoE, 25.5W per port, 600W total budget

Reliable Design: Fanless, low power consumption, IP30 metal enclosure

Industrial-Grade: Optional wide temperature (-40°C to +75°C) for harsh deployments

Surge & Protection: All ports with 6KV lightning protection and over-voltage safeguards

Easy Deployment: Plug-and-play unmanaged design, 19” 1U rackmount installation

Technical Indexes

Standard	IEEE802.3, IEEE802.3u, IEEE802.3x
Flow control	IEEE802.3x
MAC address	8K
Interface
RJ45 Ports	10/100/1000M auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection
Fiber Ports	1000Base-FX ports (SC/ST optional)
Console port	RS232, RJ45
LED indicator	PWR, SYS, Link/ACT
PoE
PoE Ports	Port1-24 support POE
PoE Standard	IEEE802.3at (25.5W for each POE port)
PoE Max power	600W
Power
Input power	110~220VDC(100~300VDC)Or100~240VAC(85~264VAC)
Input current	0.25A(@110VAC/VDC)
Connector	3 bits terminal block
Environmental
Operating Temperature	-20~60℃ (wide temperature optional)
Storage Temperature	-40~85℃
Relative Humidity	5%~95%(non-condensing)
Mechanical
Shell	IP30protection, metal case
Installation	19” 1U rack
W×H×D	440 x 275 x 44.5mm
Approvals
EMI	FCC Part 15,CISPR(EN55022)class
EMS	EN61000-4-2(ESD), Level 3 EN61000-4-3(RS), Level 3 EN61000-4-4(EFT), Level 3 EN61000-4-5(Surge), Level 3 EN61000-4-6(CS), Level 3 EN61000-4-8, 100A/m EN61000-4-12
Shock	IEC 60068-2-27
Free Fall	IEC 60068-2-32
Vibration	IEC 60068-2-6
Warranty	3 years
Dimensions and Weight	7.8 kg (Gross Weight)

Ordering Information

Model	Description
LNK-2024GPF-SFP	Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 2x Gigabit TP/SFP combo ports, and 1-24 ports supports IEEE802.3af POE international standard, each port power is 15.4W, whole power is 400W
LNK-2024GPT-SFP	Unmanaged 24-Port PoE Switch: 24x 10/100/1000M Ethernet ports + 2x Gigabit TP/SFP combo ports, and 1-24 ports supports IEEE802.3at POE international standard, each port power is 25.5W, whole power is 650W
