Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Cabling: | 10Base-T: Cat5 Or Above |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 245W Max. (PoE In Use)/5W Max 5W Max.(PoE Not In Use) | Dimensions (WxDxH): | 150 X 115 X 50 Mm |
| Weight: | 0.6Kg |

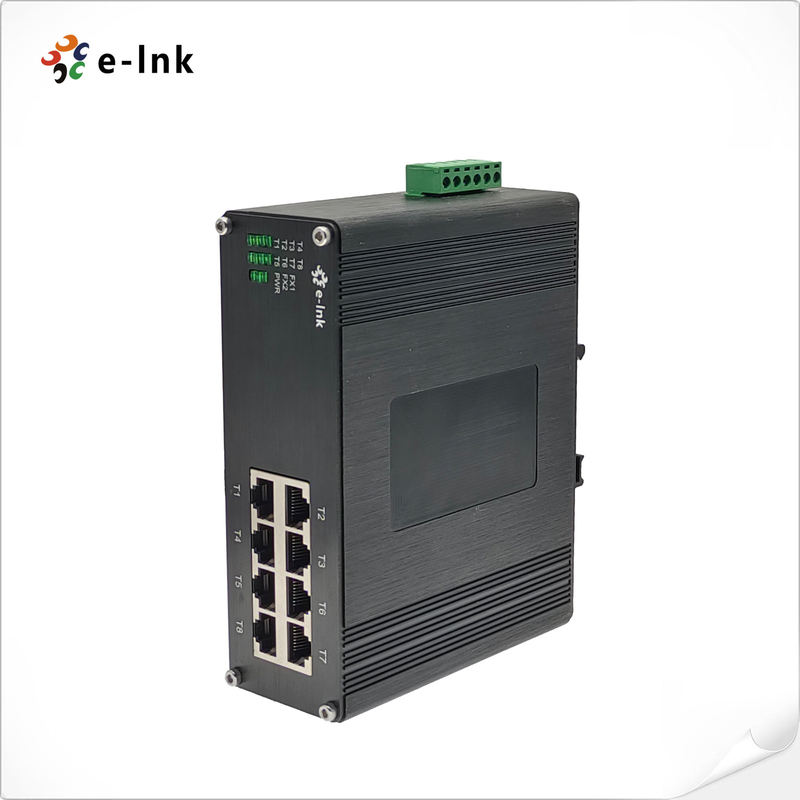

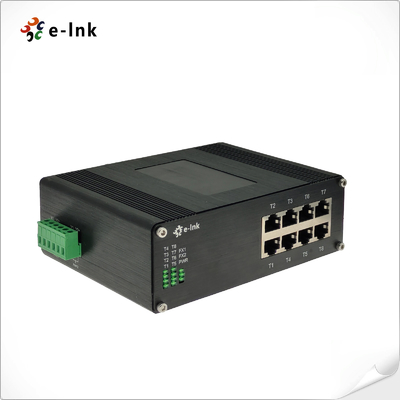

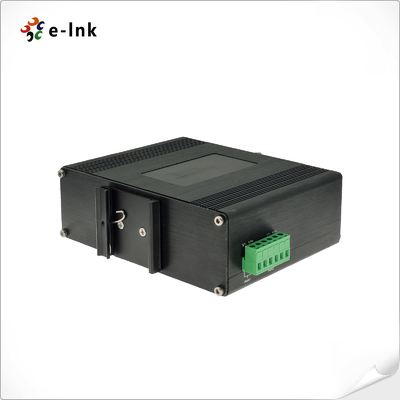

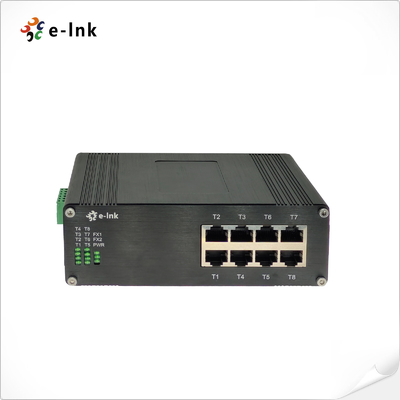

Unmanaged Industrial 8-port 10/100BASE-T (PoE+) Ethernet Switch
Industrial Ethernet Switch Advantages
► 8x10/100Base-TX with PoE+
► Support IEEE802.3at PoE (30W per port)
► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports 16K MAC address
► 2M bits frame buffer memory
►Supports DIN-Rail and Wall-mount installation
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3x Flow control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Cabling | 10Base-T: Cat5 or above |
| 100Base-TX: Cat5 or above | |
| Maximum Distance | Cat5 UTP up to 100m |
| Cabling | 10Base-T: Cat5 or above |
| Environmental | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Standard: | IEEE802.3af/at |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 8 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet (Per Port): | Link/Activity |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet Switch Overview
LNK-IMC008P is an 8 ports 10/100Base-TX Hardened Ethernet PoE switch. The switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable.Due to its reliable design and ease of use, the product stands out as an excellent option for integrating networks that include network devices like IP cameras and wireless access points across remote locations.
Ordering Information
| Model | Description |
| LNK-IMC008P | Industrial 8-port 10/100BASE-T (8-port PoE+) Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
