Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Switch Fabric: | 16 Gbps |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max | Dimensions (WxDxH): | 150 X 115 X 50 Mm |
| Weight: | 0.6Kg |

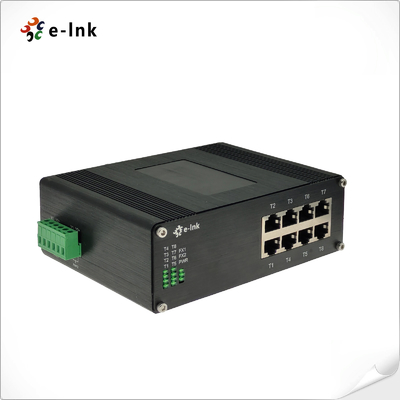

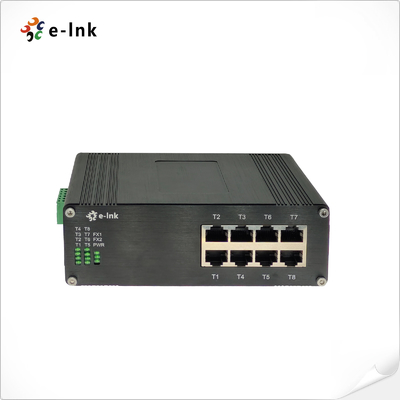

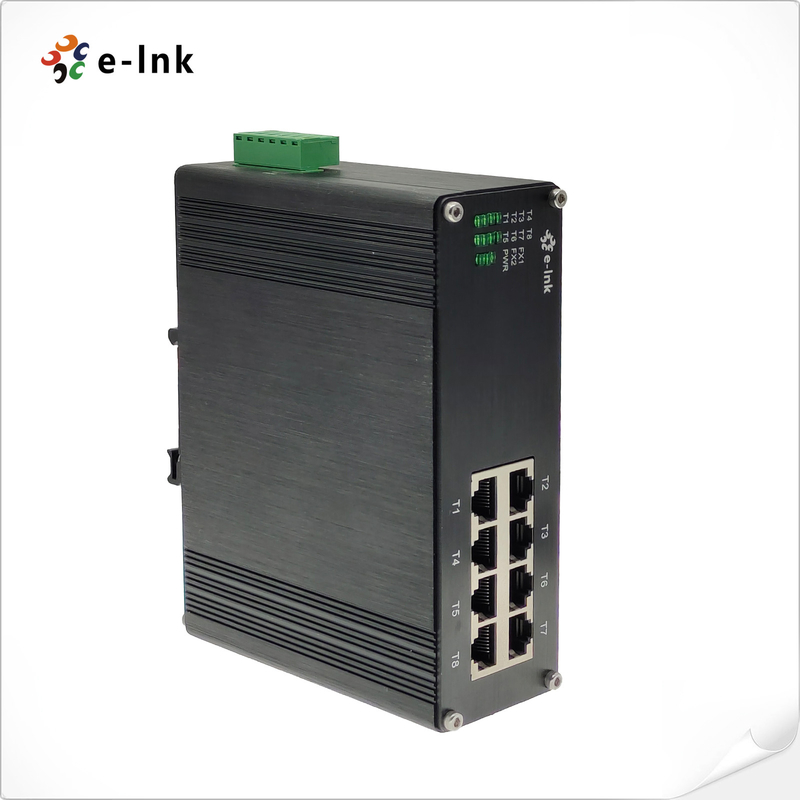

Unmanaged Industrial 8-port 10/100/1000BASE-T Ethernet Switch
Industrial Ethernet Switch Advantages
► 8 10/100/1000Base-TX ports
► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)

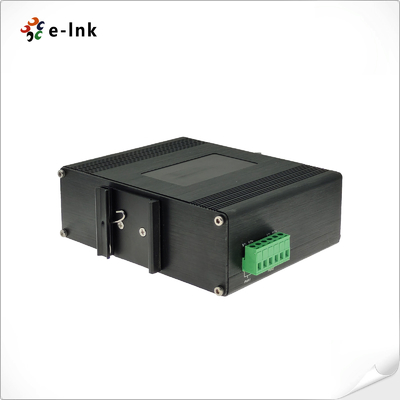

► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3z 1000BASE-X | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 2M bits |
| Switch Fabric: | 16 Gbps |
| Max Packet Length: | 10K Bytes |
| Address Table Size: | 16K MAC Addresses |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet Switch Overview
LNK-IMC008G is an 8 ports 10/100/1000Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.
The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC008G | Industrial 8-port 10/100/1000BASE-T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
