Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Maximum Distance: | Cat5 UTP Up To 100m |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max | Dimensions (WxDxH): | 150 X 115 X 50 Mm |
| Weight: | 0.6Kg |

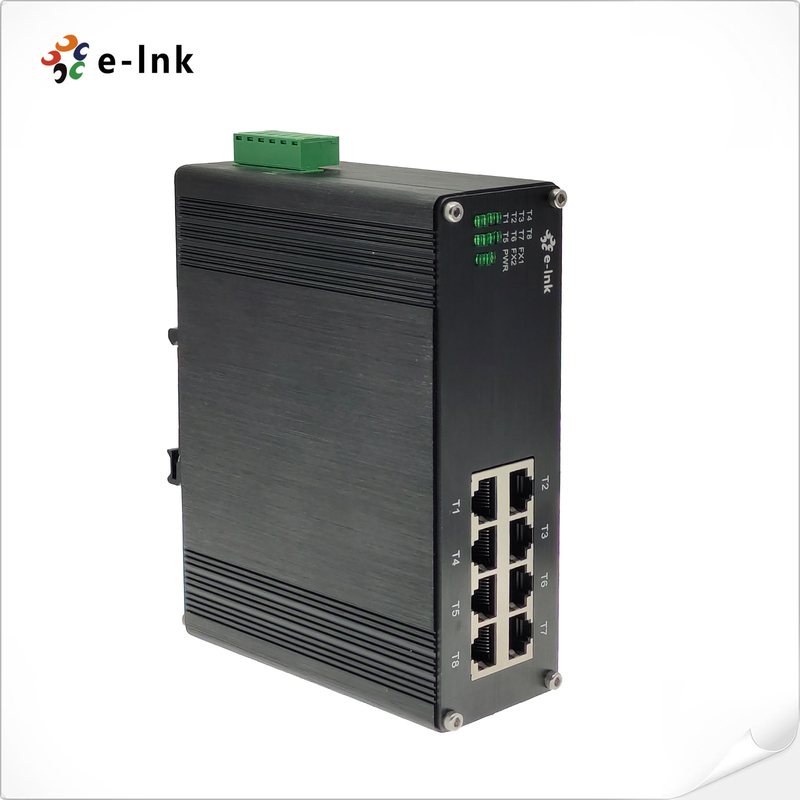

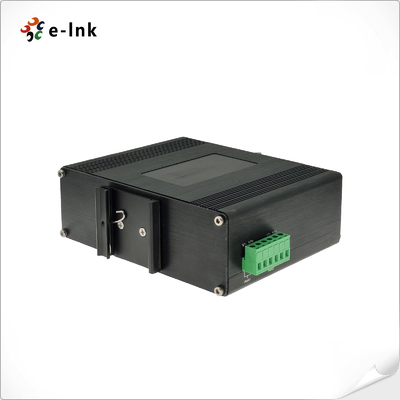

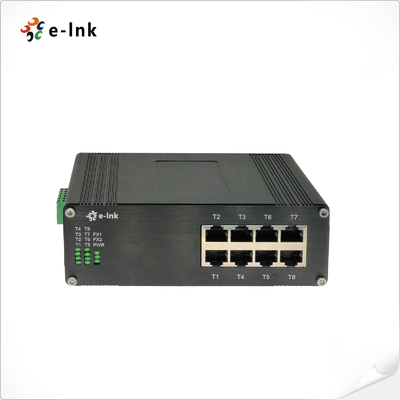

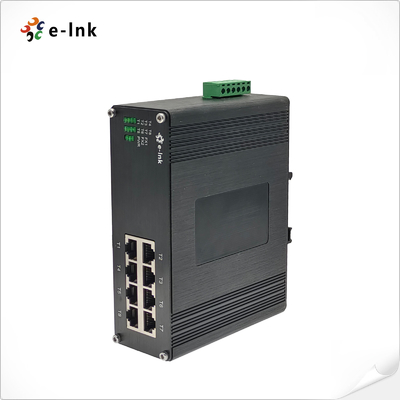

Unmanaged Industrial 8-port 10/100BASE-T Ethernet Switch
Industrial Ethernet Switch Advantages
► 8 10/100Base-TX ports
► RJ45 Port Supports 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3x Flow Control | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Cabling | 10Base-T: Cat5 or above |
| 100Base-TX: Cat5 or above | |
| Maximum Distance | Cat5 UTP up to 100m |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet Switch Overview
LNK-IMC008 is an 8 ports 10/100Base-TX Hardened Ethernet Switch. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment.The switch meets CE and FCC standards, has successfully undergone a 100% burning test to guarantee its suitability for industrial applications, and serves as an excellent, cost-effective option for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC008 | Industrial 8-port 10/100BASE-T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
