E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Optical Port: | 4 X 1000Base-X SFP |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max | Dimensions (WxDxH): | 150 X 115 X 50 Mm |
| Weight: | 0.6Kg |

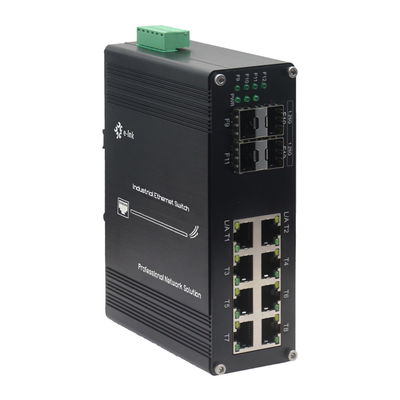

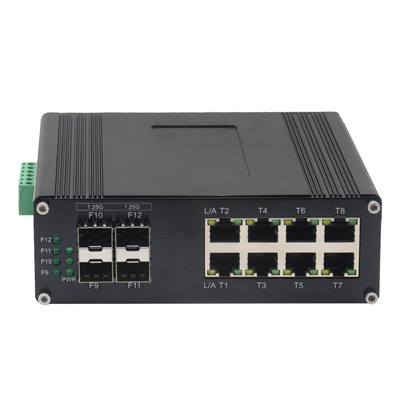

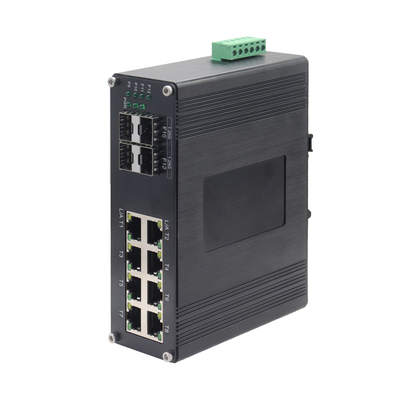

Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch
Industrial Ethernet Switch Advantages
► Support 8x10/100/1000Base-T + 4x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
► 12-48V DC Power Input
► 8W Max Power Consumption
► Aluminum Case
Industrial Ethernet Switch Technical Indexes
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 12M bits |
| Processing Type: | Store-and-Forward |
| Backplane bandwidth | 110Gbps |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| PWR | Power Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | Gigabit SFP Port: F9~F12 |
| Casing: | Aluminum Case |

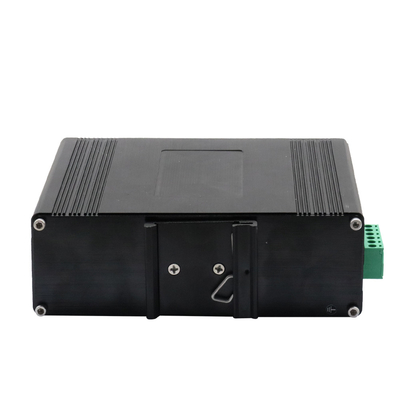

| Mounting Options: | DIN-Rail mount |
Industrial Ethernet Switch Overview

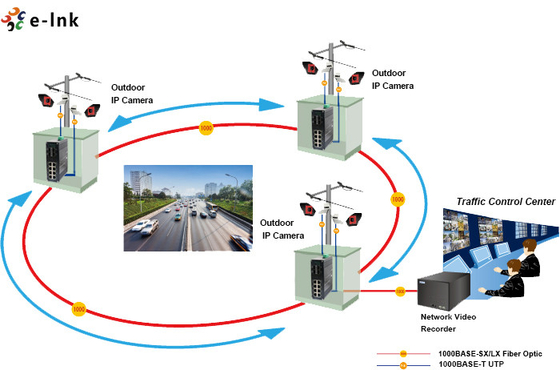

LNK-IMC408G Series is the 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 Gigabit Ethernet ports and 4 SFP fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. Due to its reliable design and ease of use, the product is an excellent option for integrating networks that comprise network devices like IP cameras and wireless access points across remote locations.
Ordering Information
| Model | Description |
| LNK-IMC408G | Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
