Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Optical Port: | 1 X 100/1000Base-X (SFP, SC, FC, ST Optional) |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 360W Max. (PoE In Use)/5W Max. (PoE Not In Use) | Dimensions (WxDxH): | 150 X 115 X50 Mm |
| Weight: | 0.6Kg |

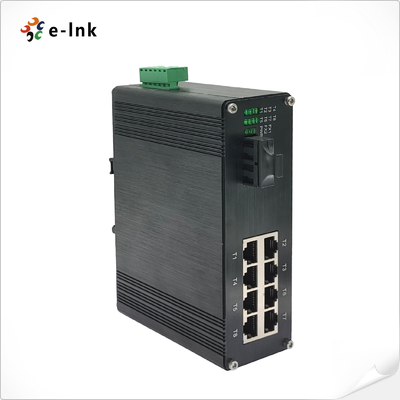

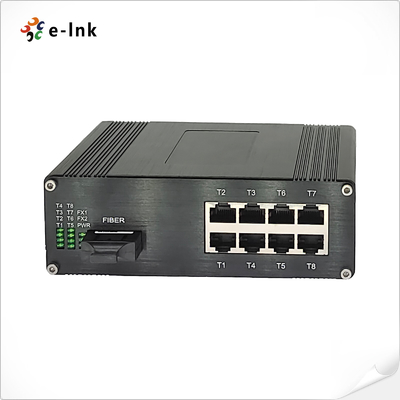

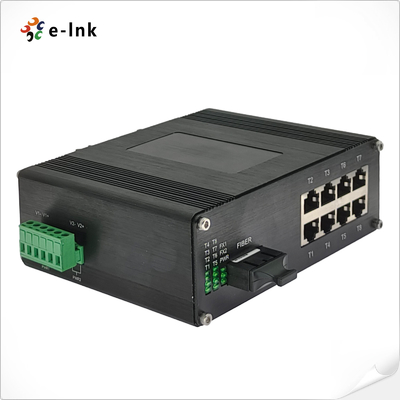

Industrial 8-Port 10/100/1000T 802.3bt PoE + 1-Port 100/1000Base-X Ethernet Switch
Industrial Ethernet Switch Advantages
► 8 10/100/1000Base-TX + 1 100/1000Base-X
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3bt PoE++ (100W per port)
► Total PoE Power Budget up to 360W maximum
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow Control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
Industrial Ethernet Switch Technical Indexes
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Environmental | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Standard: | IEEE802.3af/at/bt |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 8 |
| Max. Power per Port: | 100W Max per port |
| Power Pin Assignment | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | FX1 |
| Casing: | Aluminum Case |

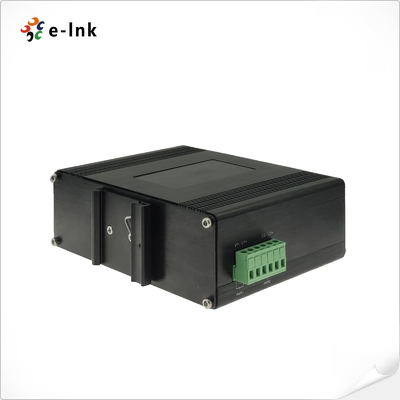

| Mounting Options: | DIN-Rail mount |
Industrial Ethernet Switch Overview
LNK-IMC108GP100 Series is an 8 ports 10/100/1000Base-TX + 1 port 100/1000Base-X Hardened PoE switch. The Switch provides 8 port PoE++ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. Boasting a dependable design and straightforward usability, this product stands out as an excellent option for connecting networks that encompass devices like IP cameras and wireless access points across distant sites.
Ordering Information
| Model | Description |
| LNK-IMC108GP100 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m |
| LNK-IMC108GP100-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC108GPS100-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC108GPF100-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC108GP100-SFP | Industrial 8-port 10/100/1000BASE-T (8-port PoE++) + 1-port 100/1000BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed. |
| Power Options | ► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
