Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Optical Port: | 1 X 1000Base-X (SFP, SC, FC, ST Optional) |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max | Dimensions (WxDxH): | 150 X 115 X50 Mm |
| Weight: | 0.6Kg |

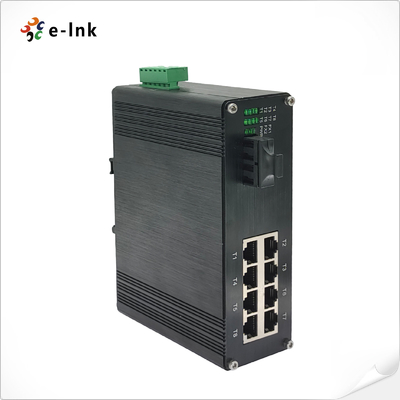

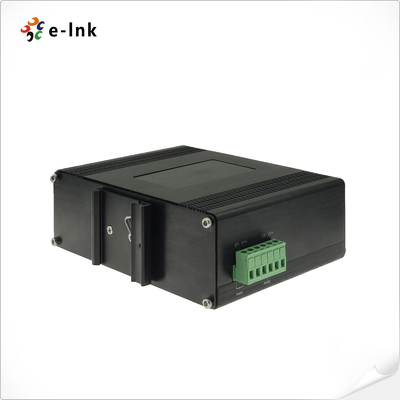

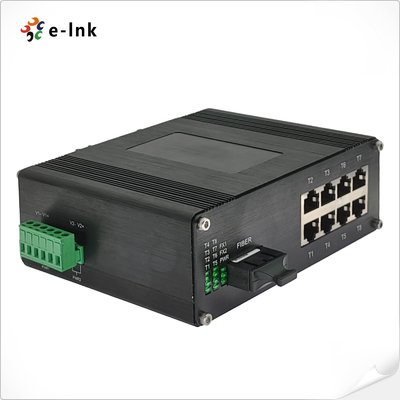

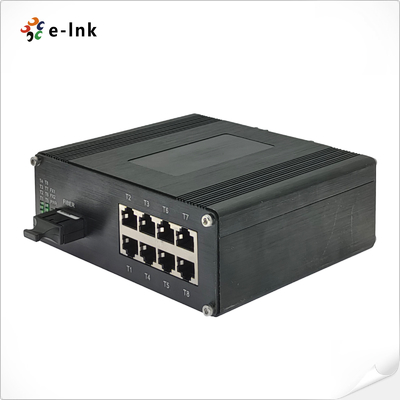

Industrial 8-Port 10/100/1000Base-T + 1-Port 1000Base-X Ethernet Switch
Industrial Ethernet Switch Advantages
► 8 10/100/1000Base-TX + 1 1000Base-X
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow Control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
Industrial Ethernet Switch Technical Indexes
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Environmental | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | FX1 |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet Switch Overview
LNK-IMC108G is an 8 ports 10/100/1000Base-T + 1 port 1000Base-X Industrial Ethernet switch. The Switch has 8 TP ports and 1 fiber port. TP (RJ45) support 10/100/1000Base-T, Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description |
| LNK-IMC108G | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m |
| LNK-IMC108G-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC108GS-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC108GF-20 | Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 1-Port 1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC108G-SFP | Industrial 8-port 10/100/1000BASE-T + 1-port 1000BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
