Product Details:
Payment & Shipping Terms:
|
| Connector: | 4 X RJ45 | Optical Port: | 1 X 100/1000Base-FX (SFP, SC, FC, ST Optional) |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 360W Max. (PoE In Use)/5W Max. (PoE Not In Use) | Dimensions (WxDxH): | 150 X 115 X 30 Mm |
| Weight: | 0.5Kg |

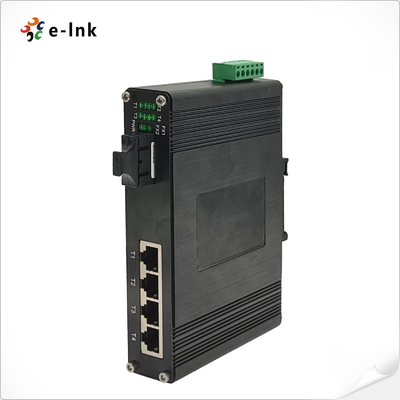

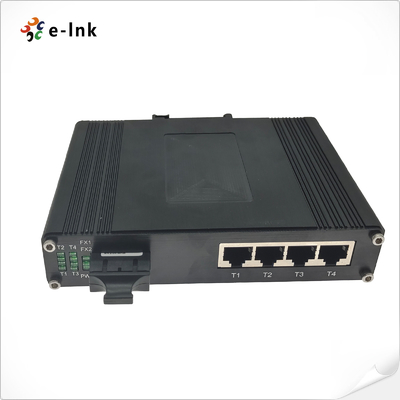

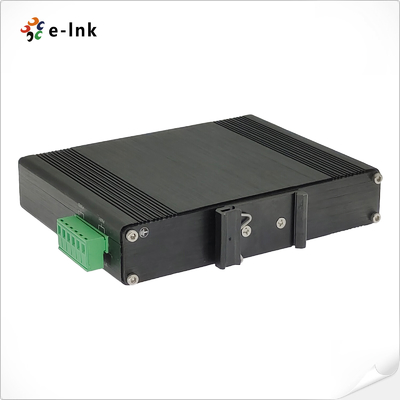

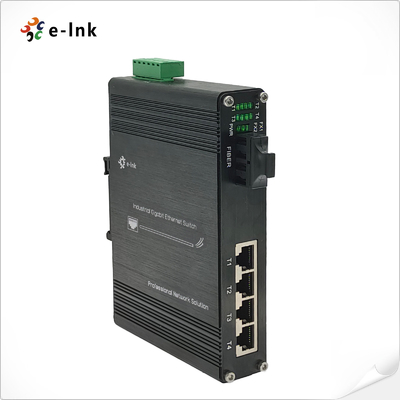

Industrial 4-Port 10/100/1000T 802.3bt PoE + 1-Port 100/1000BASE-X Ethernet Switch
Industrial Ethernet Switch Advantages
► 4 10/100/1000Base-TX + 1 100/1000Base-X
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3bt PoE++ (90W per port)
► SFP, SC, FC, ST Optional
► Supports 802.3x Flow Control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes |
| Address Table Size: | 2048 MAC Addresses |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Standard: | IEEE802.3af/at/bt |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 4 |
| Max. Power per Port: | 90W Max per port |
| Power Pin Assignment | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet (Per Port): | Link/Activity |
| SFP: | FX1 |
| Casing: | Metal Case |
Industrial Ethernet Switch Overview
LNK-IMC104GP90 Series is a 4 ports 10/100/1000Base-TX + 1 port 100/1000Base-X Hardened PoE switch. The Switch provides 4 port PoE++ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description |
| LNK-IMC104GP90 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m |
| LNK-IMC104GP90-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC104GPS90-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC104GPF90-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC104GP90-SFP | Industrial Ethernet Switch: 4-Port 10/100/1000BASE-T (4-port PoE++) + 1-port 100/1000BASE SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
