Product Details:
Payment & Shipping Terms:
|
| Connector: | 4 X RJ45 | Optical Port: | 1 X 100Base-X (SFP, SC, FC, ST Optional) |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max | Dimensions (WxDxH): | 150 X 115 X 30 Mm |
| Weight: | 0.5Kg |

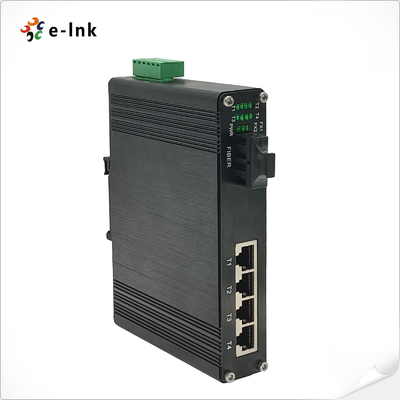

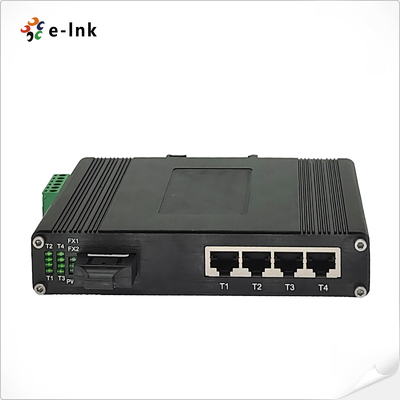

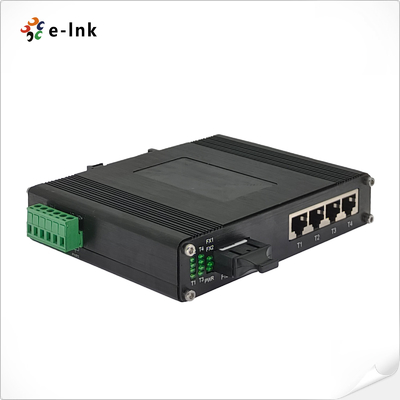

Industrial 4-Port 10/100/1000Base-T + 1-Port 1000BASE-X Ethernet Switch
Industrial Ethernet Switch Advantages
► 4 10/100/1000Base-TX + 1 1000Base-FX
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3x Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1M bits |
| Processing Type: | Store-and-Forward |
| Address Table Size: | 2048 MAC Addresses |
| Environmental | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber Port: | FX1 |
| Casing: | Metal Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet Switch Overview
LNK-IMC104G is a 4 ports 10/100/1000Base-TX + 1 port 1000Base-FX Industrial Ethernet switch. The Switch has 4 TP ports and 1 fiber port. TP (RJ45) support 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. Boasting a dependable design and straightforward usability, this product stands out as an excellent option for connecting networks that encompass devices like IP cameras and wireless access points across distant sites.
Ordering Information
| Model | Description |
| LNK-IMC104G | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 1-Port 1000Base-FX Fiber, Multimode, Dual Fiber, SC, 550m |
| LNK-IMC104G-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 1-Port 1000Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC104GS-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 1-Port 1000Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC104GF-20 | Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX + 1-Port 1000Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| LNK-IMC104G-SFP | Industrial 4-port 10/100/1000BASE-T + 1-port 1000BASE SFP Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
