Product Details:
Payment & Shipping Terms:
|
| Connector: | 4 X RJ45 | Optical Port: | 1 X 100Base-X (SFP, SC, FC, ST Optional) |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 12~58VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 5W Max | Dimensions (WxDxH): | 150 X 115 X 30 Mm |
| Weight: | 0.5Kg |

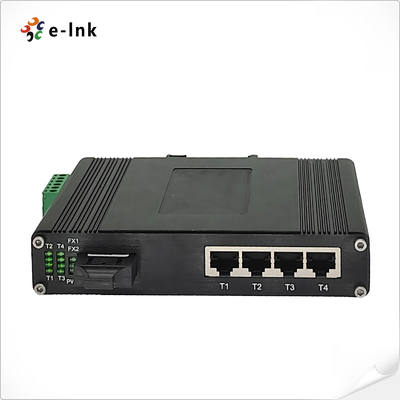

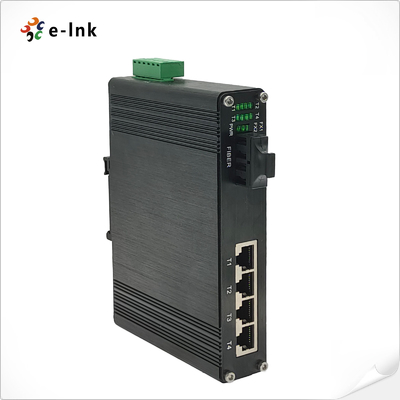

Industrial 4-Port 10/100Base-TX + 1-Port 100BASE-FX Ethernet Switch
Industrial Ethernet Switch Advantages
► 4 10/100Base-TX + 1 100Base-FX
► 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow Control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Redundant Power Inputs

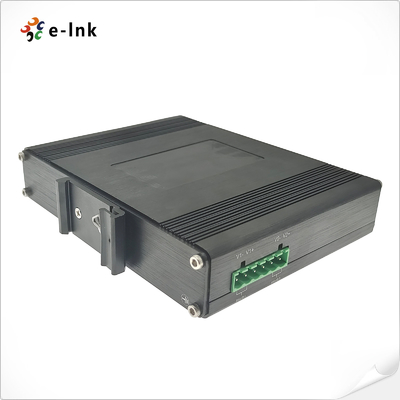

► Supports Wall-mount and DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| Packet Buffer Memory: | 512K bits |
| Processing Type: | Store-and-Forward |
| Address Table Size: | 1024 MAC Addresses |
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x 100Base-X (SFP, SC, FC, ST Optional) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber Port: | FX1 |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet Switch Overview

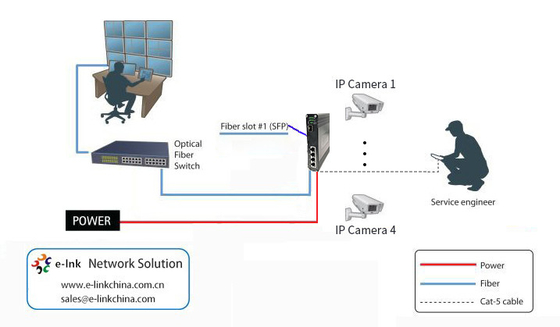

LNK-IMC104 is a 4 ports 10/100Base-TX + 1 port 100Base-FX Industrial Ethernet switch. The Switch has 4 TP ports and 1 fiber port. TP (RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. Boasting a dependable design and straightforward usability, this product stands out as an excellent option for connecting networks that encompass devices like IP cameras and wireless access points across distant sites.
Ordering Information
| Model | Description |
| LNK-IMC104 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM |
| LNK-IMC104-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM |
| LNK-IMC104S-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM |
| LNK-IMC104F-20 | Industrial Ethernet Switch: 4-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
