E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Connector: | 2 X RJ45 | Optical Port: | 2 X SFP 1000Base-X Or 100Base-FX (auto Detection) |
|---|---|---|---|
| Operating Temperature: | -40°C To 75°C (-40°F To 167°F) | Input Power: | 12~48VDC , 4-pin Terminal Block |
| Power Consumption: | 65W Max./ 5W Max. 0.1A@48VDC (PoE Not In Use) | Dimensions (WxDxH): | 95 X 70 X 30 Mm |
| Weight: | 0.25Kg |

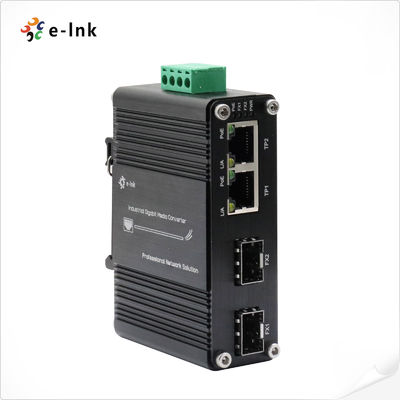

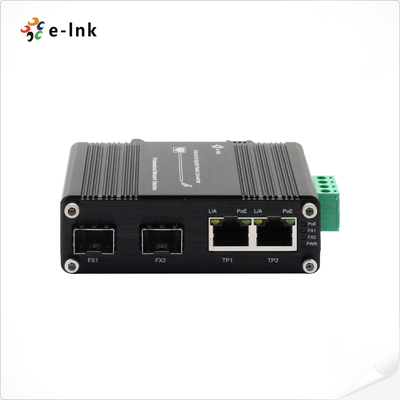

Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch
Industrial Ethernet Switch Advantages
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 2 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+ (30W)
► Supports Link Fault Pass Through
► Supports Full/Half-duplex, Auto-negotiation
► 9K Bytes Jumbo Frame
► Power booster function with wide range 12~48VDC Power Input
► Supports DIN-Rail & Wall-mount installation
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Electrical and Mechanical | |
| Output Power | 48VDC |
| PoE | |
| Port: | RJ45 Port 1 ~ Port 2 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| LED Indicators: | |
| PWR: | Power Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
| PoE: | Per Port Status |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet Switch Overview
LNK-IMC202GP-SFP Series is a DIN rail type 802.3at 30W PoE Switch that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard.This is a product of hardened grade, with an operating temperature range from -40°C to +75°C. LNK-IMC202GP-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Ordering Information
| Model | Description |
| LNK-IMC202GP-SFP | Mini Industrial 2-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
