Product Details:
Payment & Shipping Terms:
|
| Connector: | 3 X RJ45 | Optical Port: | 1 X SC 1000Base-X |
|---|---|---|---|
| Operating Temperature: | -40°C To 75°C (-40°F To 167°F) | Input Power: | 12~48VDC,2-pin Terminal Block |
| Power Consumption: | 5W Max. | Dimensions (WxDxH): | 95 X 70 X 30 Mm |
| Weight: | 0.25Kg |

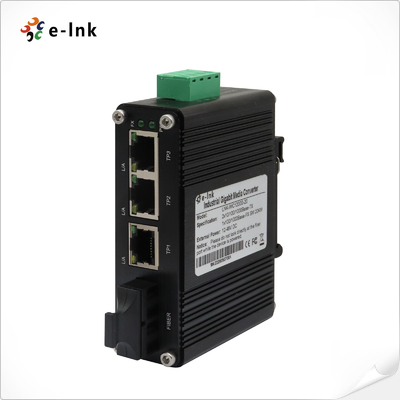

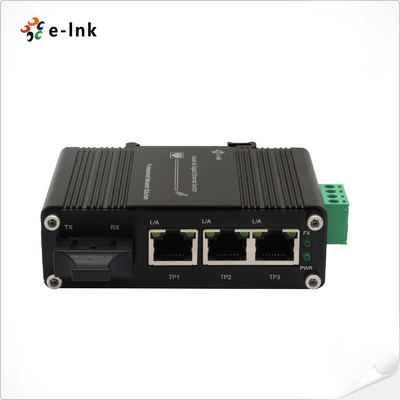

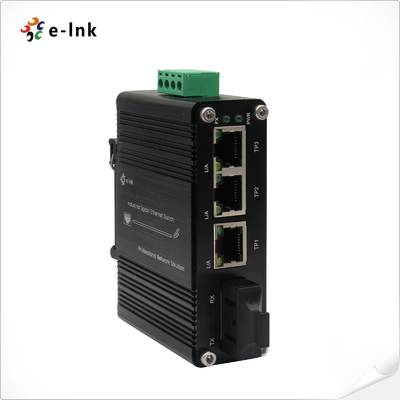

Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch
Industrial Ethernet Switch Advantages
► 3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-port 1000Base-X SC Fiber
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 12~48VDC Terminal Block Power Input
► IP40 Aluminum Case
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 4 Mbit |
| Switch Fabric: | 12Gbps |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Electrical and Mechanical | |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Ethernet LINK Status |
| FX: | Fiber LINK Status |
| Casing: | Aluminum Case |

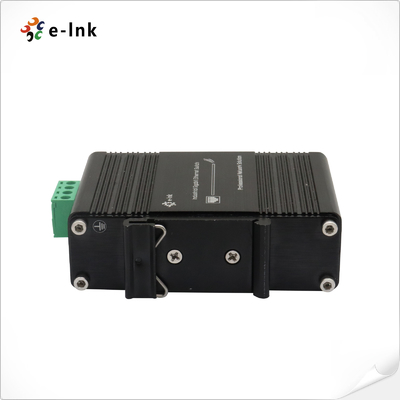

| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
Industrial Ethernet Switch Overview

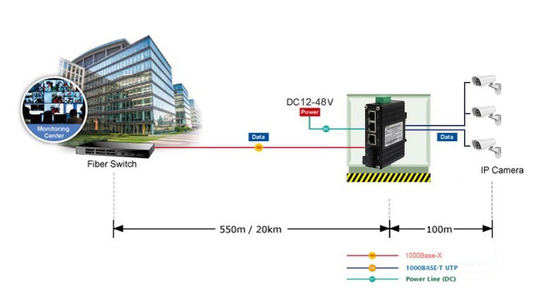

LNK-IMC103G Series is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and one 1000BASE-X SC fiber port and packed in an IP40-rated rugged but compact-size case. This is a product of hardened grade, with an operating temperature range from -40°C to +75°C.The Ethernet port supports both half-duplex and full-duplex mode. 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. Due to its reliable design and ease of use, the product stands out as an excellent option for integrating networks that comprise network devices like IP cameras and wireless access points across remote locations.
Ordering Information
| Model | Description |
| LNK-IMC103G | Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m |
| LNK-IMC103G-20 | Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km |
| LNK-IMC103GS-20A | Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km |
| LNK-IMC103GS-20B | Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
