E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Interface Type: | SFP+ To SFP+ | Transmission Distance: | SFP+ Module: Up To 80km |
|---|---|---|---|

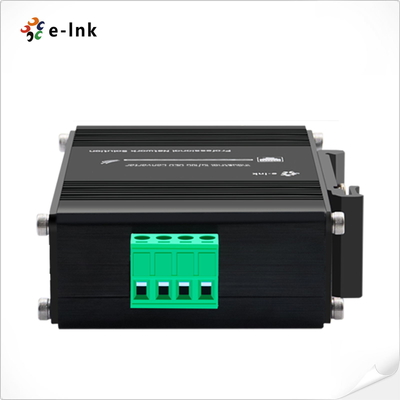

| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max | Dimensions (WxDxH): | 95 X 70 X 30 Mm |
| Weight: | 0.25Kg |
Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function
Industrial Ethernet Switch Advantages
► Transparent Transport and very low delay
► 3R function (Regeneration, Reshaping, Re-timing)
► Support hot plugging, full state led display, easy installation
► Support ITUT prescribed DWDM/CWDM wavelength, and can also display it’s DDM function
► Support Loop-back and Jumbo Frame
► DIP Switch supports 1.25G/10G fiber data rate switching
► Can be as 1G Ethernet Media Converter if using Ethernet
► IP40 Aluminum Case
Industrial Ethernet Switch Technical Indexes
| Performance Data | Technical Indexes | |||
| Equipment function | 3R Repeater | |||
| Transmission Speed | 10G: 8.5Gb/s-11.7Gb/s | |||
| Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
|||
|
Maximum Packet Forwarding Rate |
14,880,950/S | |||
| Ethernet Media Converter Specifications | ||||
| Standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x Full-duplex flow control |
|||
| Work Mode | 10/100/1000BASE-T to 1000BASE-SX/LX | |||
| Port Type | SFP to RJ45 | |||
| Network Cables |
Twisted-pair Fiber-optic Cable |
|||
| Electrical and Mechanical | ||||
| Power Input Overload | Automatic Resettable | |||
| Reverse Polarity | Present | |||

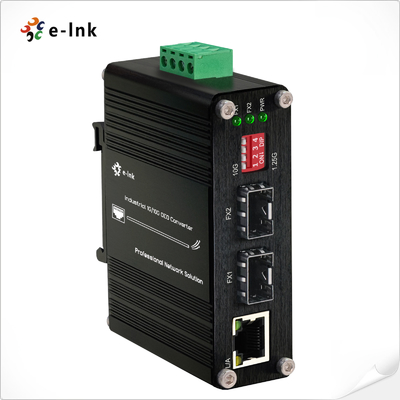

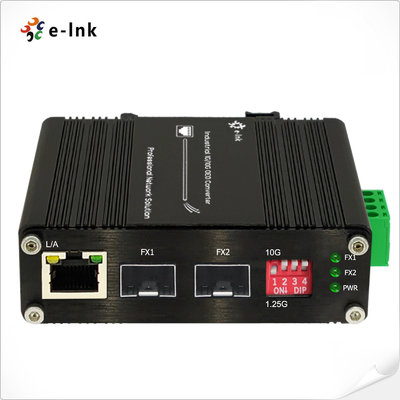

| LED Indicators: | ||||
| PWR | Power Status | |||
| FX1 | SFP Port-1 | |||
| FX2 | SFP Port-2 | |||
| L/A | TP LINK/ACT | |||
| Casing | Aluminum Case | |||
| Mounting Options: | DIN-Rail mount | |||
Industrial Ethernet Switch Overview

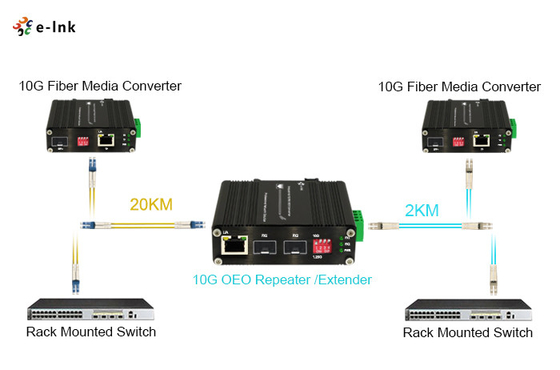

ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80℃.
It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.
When only the copper and fiber port are connected, it enables the 1Gbps Ethernet equipment to function as a fiber-to-copper media converter, allowing for long-distance transmission up to 120km between fiber and copper connections.
Ordering Information
| Model | Description |
| ETH-IMC2402-OEO | Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
