E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Connector: | 4 X RJ45 | Optical Port: | 1 X SFP 1000Base-X Or 100Base-FX(DIP Switch) |
|---|---|---|---|
| Operating Temperature: | -40°C To 75°C (-40°F To 167°F) | Input Power: | 110~230VAC, 6-pin Terminal Block |
| Power Consumption: | 5W Max | Dimensions (WxDxH): | 95 X 70 X 30 Mm |
| Weight: | 0.26Kg |

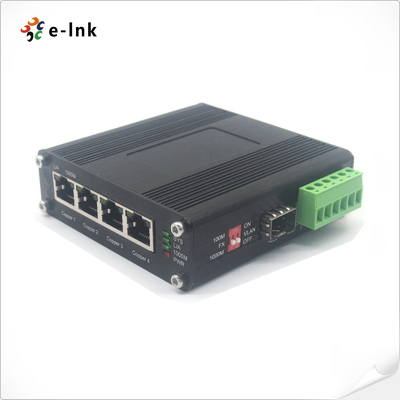

Industrial 4-port 10/100/1000Base-T + 1-port 100/1000Base-X SFP Ethernet Switch with 110~230VAC Input
Industrial Ethernet Switch Advantages

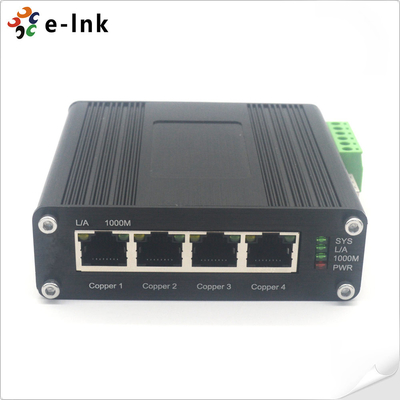

► 4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

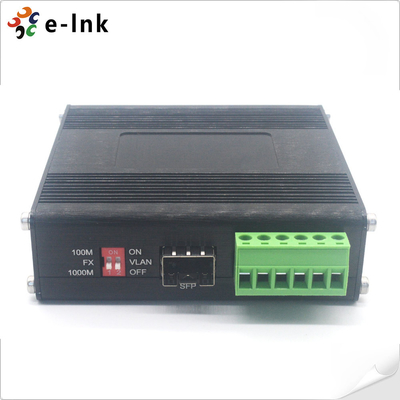

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (DIP switch)
► Supports flow control and broadcast storm protection.
► Supports VLAN and QoS.
► Supports max 10K bytes frame.

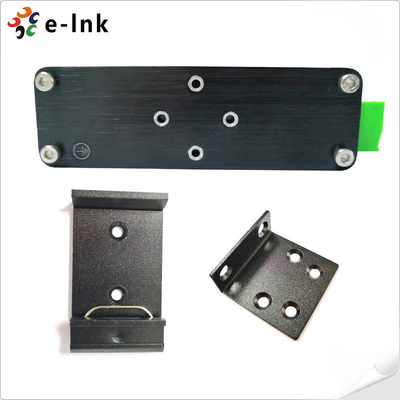

► Supports DIN-Rail & Wall-mount installation
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.1d Spanning Tree | |
| IEEE 802.1q VLAN TAG | |
| IEEE 802.1p Qos | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 4K MAC Addresses |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | LINK/Activity |
| SYS: | System Status |
| 1000M: | 1000M Fiber Status |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
Industrial Ethernet Switch Overview
LNK-IMC-A1400G-SFP Series is a DIN rail type Ethernet Switch that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK- A1400G-SFP supports 10/100/1000Base-T and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
The LNK-A1400G-SFP Gigabit Ethernet Switch with four 10/100/1000M UTP ports and one 100/1000M SFP sockets, which converting the 4 independent 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode). The product is possessed of stable performance, excellent quality and reasonable price because of adopting latest IC and high quality of transceivers. It is applicable to use in small patterns of Optical Fiber Ethernet. Special AC power input design, support 110V~230VAC.
Ordering Information
| Model | Description |
| LNK-IMC-A1400G-SFP | Hardened 4-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 110~230VAC Power Supply. Open Wire for Terminal Block |
