Product Details:
Payment & Shipping Terms:
|
| Connector: | 1 X RJ45 | Optical Port: | 1 X 1000Base-X SC |
|---|---|---|---|
| Operating Temperature: | -40°C To 75°C (-40°F To 167°F) | Input Power: | 12~48VDC, 4-pin Terminal Block |
| Power Consumption: | 65W Max | Dimensions (WxDxH): | 95 X 70 X 30 Mm |
| Weight: | 0.25Kg |

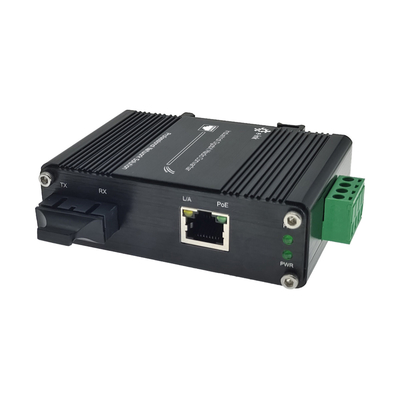

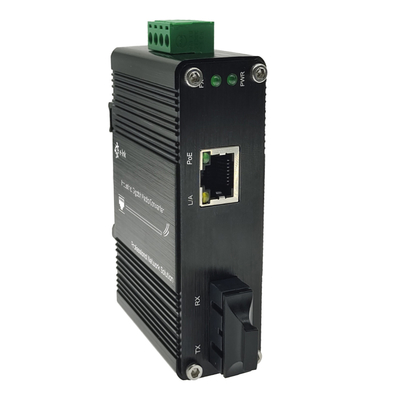

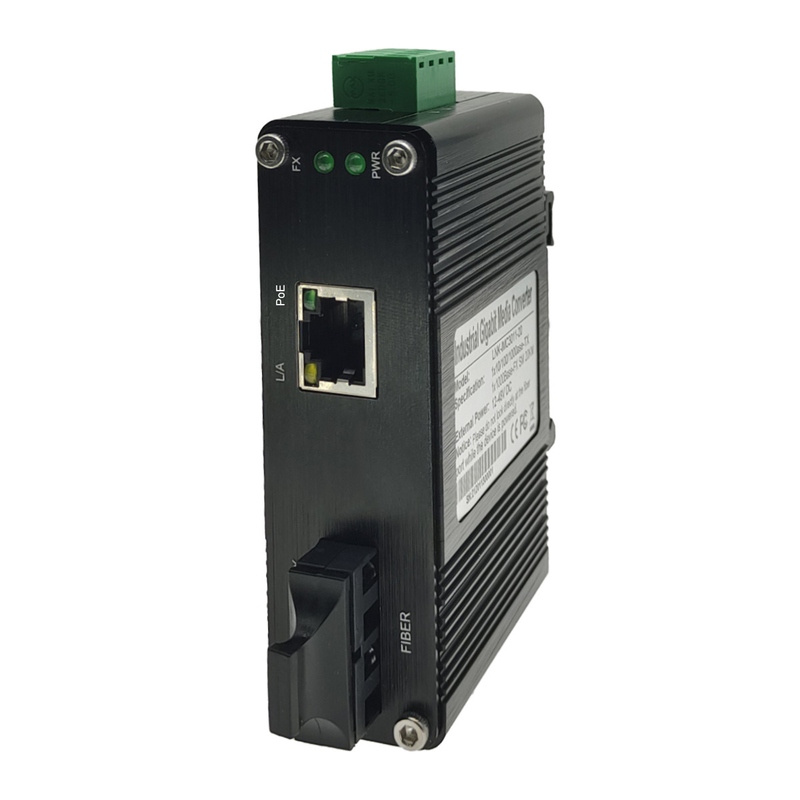

Mini Industrial 1000BASE-X to 10/100/1000BASE-T 60W PoE+ Media Converter
Industrial Ethernet Switch Advantages
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 1000Base-X SC
► IEEE802.3af/at compliant
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail & Wall-mount installation
Industrial Ethernet Switch Technical Indexes
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2048K MAC Addresses |
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x 1000Base-X SC |
| Electrical and Mechanical | |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| POE: | PoE Status |
| 100M/1000M: | Fiber LINK Status |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
Industrial Ethernet Switch Overview

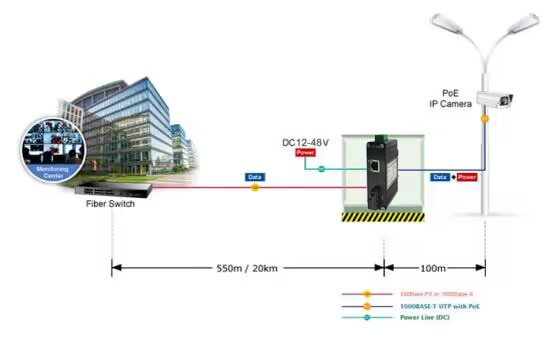

The LNK-IMC3011P60 Series provides media conversion between 10/100/1000BASE-T and 1000BASE-X Fiber. The Ethernet port support 60W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. This product is hardened, featuring a wide operating temperature range from -40°C to 75°C and a ruggedized aluminum housing. The Ethernet port is compatible with both half-duplex and full-duplex modes. Its rugged hardware design guarantees that your Ethernet equipment can endure challenging industrial environments. The LNK-IMC3011P60 Series is easy to mount on a DIN rail or in distribution boxes.
Ordering Information
| Model | Description |
| LNK-IMC3011P60 | Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m |
| LNK-IMC3011P60-20 | Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC3011P60S-20 | Mini Industrial PoE++ Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
