| Forward & Filtering Rate:: | 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps) | Connector: | 10 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports |
|---|---|---|---|
| Power Pin Assignment: | 4/5(+), 7/8(-) | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
| Input Power: | 48~57VDC Redundant Power With Polarity Reverses Protection Function | Power Consumption: | <250W (Non-PoE<10W) |

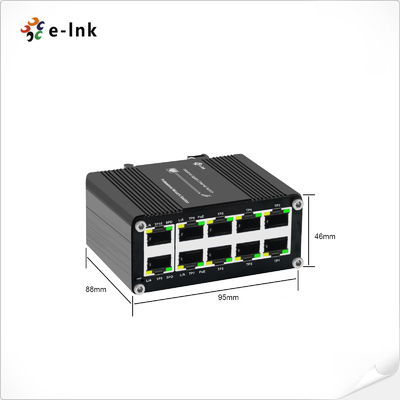

| Dimensions (WxDxH): | 95 X 88 X 46mm | Weight: | 400g |

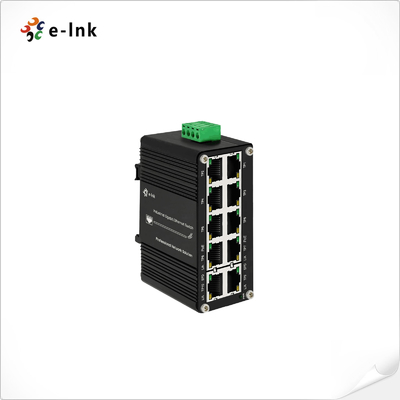

Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Industrial Ethernet Switch Advantages
► 10 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
► Up to 8 ports of IEEE 802.3af/at devices powered
► Up to 240-watt PoE budget
► Supports 802.3x Flow control
► Complies with IEEE 802.3az Energy Efficient Ethernet (EEE)

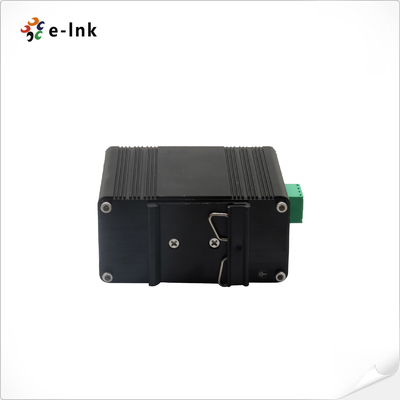

► Supports DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Packet Buffer: | 2Mbits |
| Packet Length: | 9216bytes |
| MAC Address Table: | 4K entries |
| Switch Fabric: | 20Gbps/non-blocking |
| Switch Throughput (packet per second) | 14.88Mpps@64bytes |
| Interface | |
| Connector: |
10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ injector function (Port 1 to 8) |
| PoE (Power over Ethernet) | |
| Standard: |
IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Max. Number of Class 4 PDs | 8 |
| Environmental | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 100,000 hrs |
| Electrical and Mechanical | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |

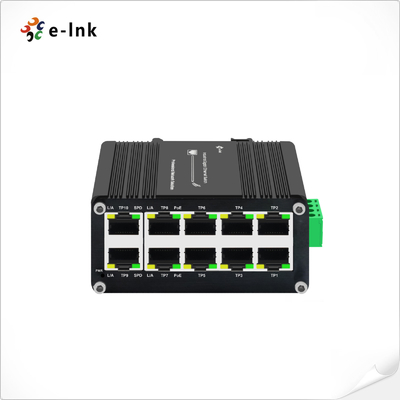

| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
| PoE | Max 30W per port |
Industrial Ethernet Media Converter Overview

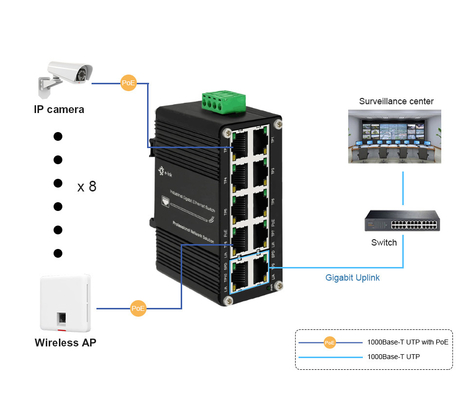

The LNK-IMC010GP is the mini Compact Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Ethernet Switch and is specially designed to be installed in a narrow environment. Even in harsh industrial environments, it offers an 802.3at PoE+ output capability of up to 240 watts and maintains wire-speed Gigabit performance.With eight 10/100/1000BASE-T ports featuring IEEE 802.3at PoE+ and two extra 10/100/1000BASE-T RJ45 copper interface for uplink connection. The power system of the LNK-IMC010GP supports 48~57V DC power input for power redundancy and operational flexibility. It features a maximum power budget of 240 watts for various PoE applications and operates within a temperature range of -40 to 80 degrees Celsius, housed in a durable IP40 metal enclosure.
Ordering Information
| Model | Description |
| LNK-IMC010GP | Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed. |
| Power Options | ► Power Supply is to be purchased separately |
