E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Optical Port: | 6 X 1000Base-X SFP |
|---|---|---|---|
| Operating Temperature: | -40°C To 80°C (-40°F To 176°F) | Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max(PoE In Use<240W) | Dimensions (WxDxH): | 149 X 114 X 50 Mm |
| Weight: | 0.55Kg |

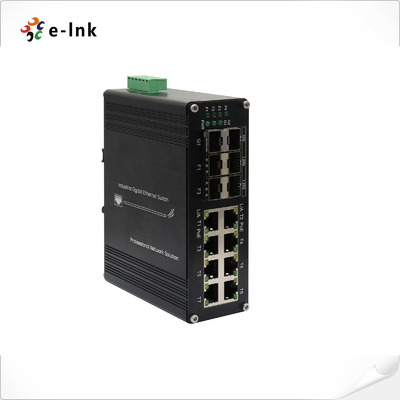

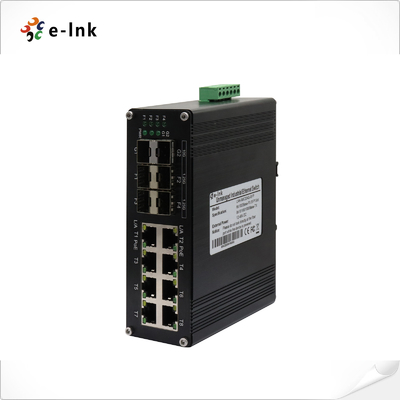

Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet SwitcH
Industrial Ethernet Switch Advantages
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case

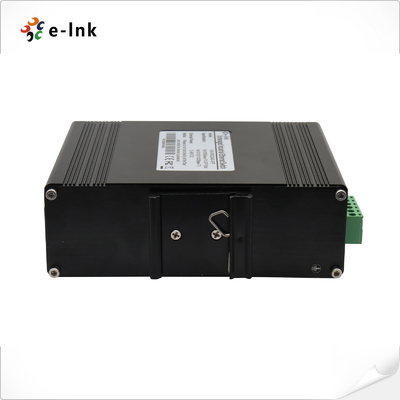

► Supports DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE802.3p QoS | |
| IEEE802.1d Spanning Tree | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| PoE (Power over Ethernet) | |
| Standard: | IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3af Power over Ethernet | |
| ort: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power Status |
| Ethernet(Per Port): | Link/Activity |
| PoE (Optional) | PoE Status |
| Fiber: | Gigabit SFP Port: F1~F6 |
Industrial Ethernet Switch Overview

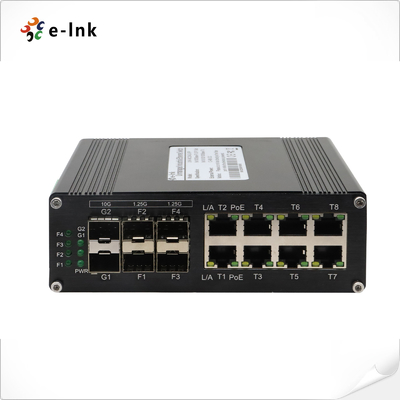

LNK-IMC608GP-SFP Series is 8-port 10/100/1000Base-T 802.3at PoE + 6-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. Due to its dependable design and user-friendly nature, the product serves as an excellent option for connecting networks made up of devices like IP cameras and wireless access points across distant locations.
Ordering Information
| Model | Description |
| LNK-IMC608GP-SFP | Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
