E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Forward & Filtering Rate:: | 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)/1,488,000,000pps (10000Mbps) | Connector: | 8 X RJ45 |
|---|---|---|---|
| Optical Port: | 4 X 1000Base-X SFP+2 X 10G Base-SR/LR SFP+ | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) | Power Consumption: | 8W Max |
| Dimensions (WxDxH): | 149 X 114 X 50 Mm | Weight: | 0.55Kg |

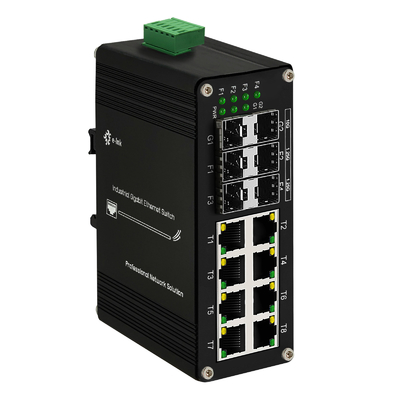

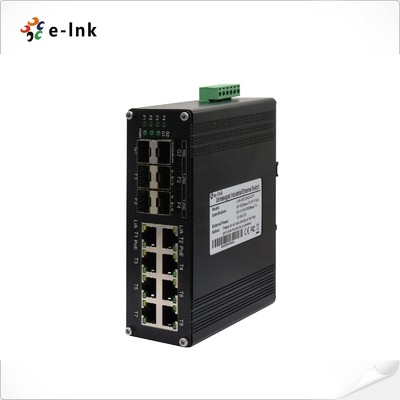

Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch
Industrial Ethernet Switch Advantages
► 8x10/100/1000Base-T + 4x1000Base-X SFP + 2x 10GBase-SR/LR SFP+
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case

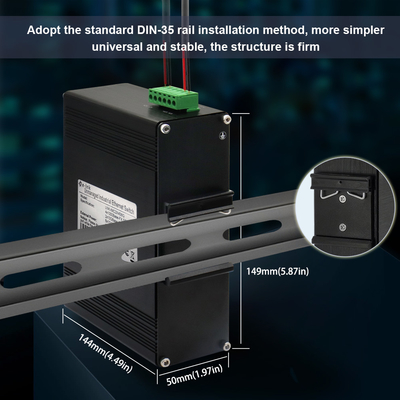

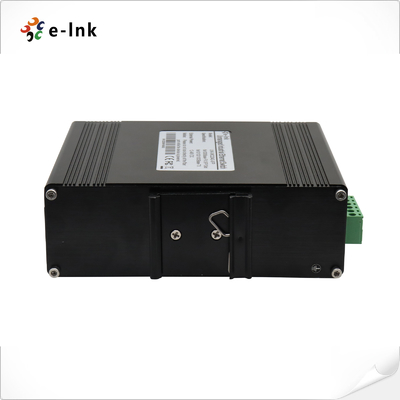

► Supports DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 8W Max. |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |

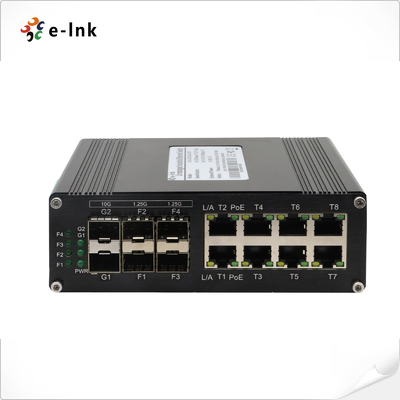

| LED Indicators: | |
| Power: | Power Status |
| Ethernet (Per Port): | Link/Activity |
| Fiber: | Gigabit SFP Port: F1~F4 |
| 10G SFP+ Port: G1, G2 | |
Industrial Ethernet Switch Overview

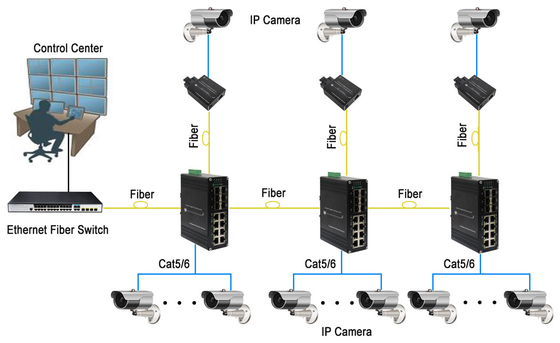

LNK-IMC2X4S8G Series is 8-port 10/100/1000Base-T + 4-port 1000Base-X SFP + 2-port 10G Base-SR/LR SFP+ hardened Ethernet switch. The Switch has 8 TP ports and 6 fiber ports. TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X supports 1 or 2 core Single-mode or Multi-mode fiber. 2 10G Base-SR/LR ports supports SFP+ module. Due to its dependable design and user-friendly nature, the product serves as an excellent option for connecting networks made up of devices like IP cameras and wireless access points across distant locations.
Ordering Information
| Model | Description |
| LNK-IMC2X4S8G | Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
