Mini 4K HDMI Fiber Extender Single-Core OM5 500m Low Power

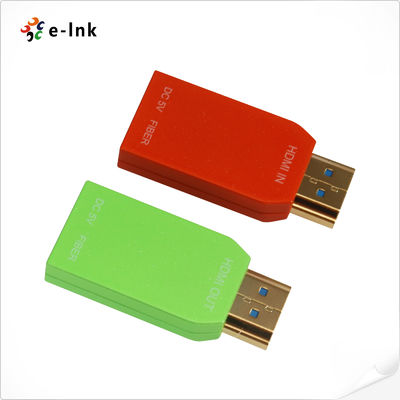

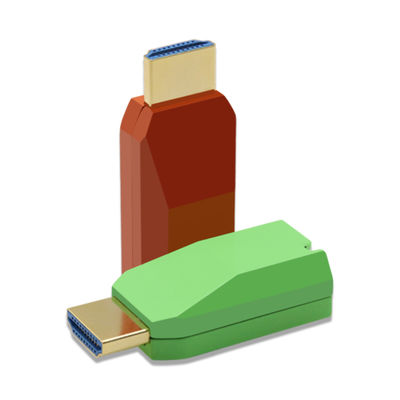

Large Image : Mini 4K HDMI Fiber Extender Single-Core OM5 500m Low Power

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-108M
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pair
Price:	$140-$179
Packaging Details:	HDMI Over Fiber Optic Extender Standard Export Package
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability:	1000PCS/Month

Contact Now

Detailed Product Description

Type:	Mini HDMI Over Fiber Extender	Resolution:	4K@30Hz / 1080p / 720p
Audio:	Dolby TrueHD, DTS-HD, PCM 2CH	Fiber Connector:	1 × LC (Multimode)
Max Distance:	300m (OM3) / 400m (OM4) / 500m (OM5)	Operating Temp:	-20°C To +70°C
Highlight:	Mini 4K HDMI fiber extender , HDMI over single-core fiber , Multimode fiber optic extender

Mini 4K HDMI Fiber Extender Single-Core OM5 500m Low Power

Overview

The LNK-108M is a compact HDMI over fiber extender that delivers uncompressed 4K/30Hz video and

crystal-clear audio across a single-core multimode fiber. With plug-and-play simplicity, it extends your

HDMI source up to 500m while maintaining secure, interference-free transmission. Ideal for conference

rooms, digital signage, and home theaters.

Features

Supports uncompressed HDMI video up to 4K@30Hz

Single LC connector, up to 500m transmission (OM5 fiber)

Reliable WDM technology for high-quality audio & video

Only receiver requires external power (low power design)

No driver or software setup, hot-swappable modules

Excellent EMI/RFI immunity, ensuring stable signals

Compact & lightweight with durable metal housing

Technical Indexes

Type of Extender	Mini 4K/30Hz HDMI over Single-Core Multimode Fiber Extender
Input Signals	HDMI
Signal Support	HDMI 1.4 HDMI format standard
Video Support	4K@30Hz/1080p/1080i/720p
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Website Specifications	Color space 444, 420, 400
Fiber Connector	1 x LC Connector
Transmission Rate	10.2Gbps(3.4Gbps/CH)
Transmission Distance	300m with OM3 fiber, 400m with OM4 fiber, 500m with OM5 fiber
Operating Temperature	-20°C to + 70°C
Storage Temperature	-40°C to + 85°C
Humidity	to 90% RH (non-condensing)
Safety Approvals	CE, RoHS, FCC
Dimension (WxDxH)	2.24 x 0.6 x 0.55 in (57x16x14mm)
Weight	0.1 kg / 0.22 lb
Operation Voltage	5VDC
Operation Current	TX+RX: 75mA
Power Supply	Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC)
Note	The module does not support HDCP and EDID transparent transmission
