8x2.5Gbps RJ45 Ports + 1 x10G SFP+ Fiber Port Ethernet Switch

Name: 8x2.5Gbps RJ45 Ports + 1 x10G SFP+ Fiber Port Ethernet Switch
Brand: E-link
SKU: LNK-2.5G-108
Rating: 4.5 (130 reviews)

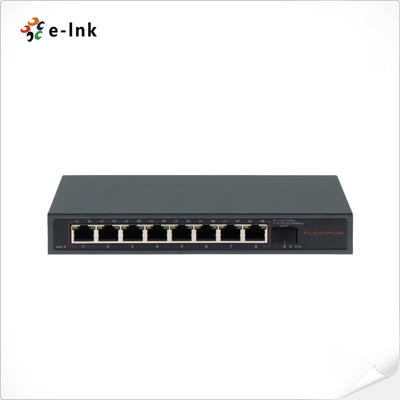

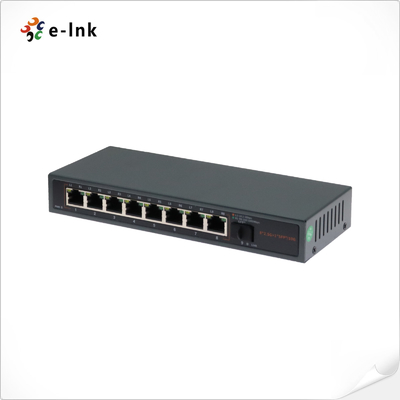

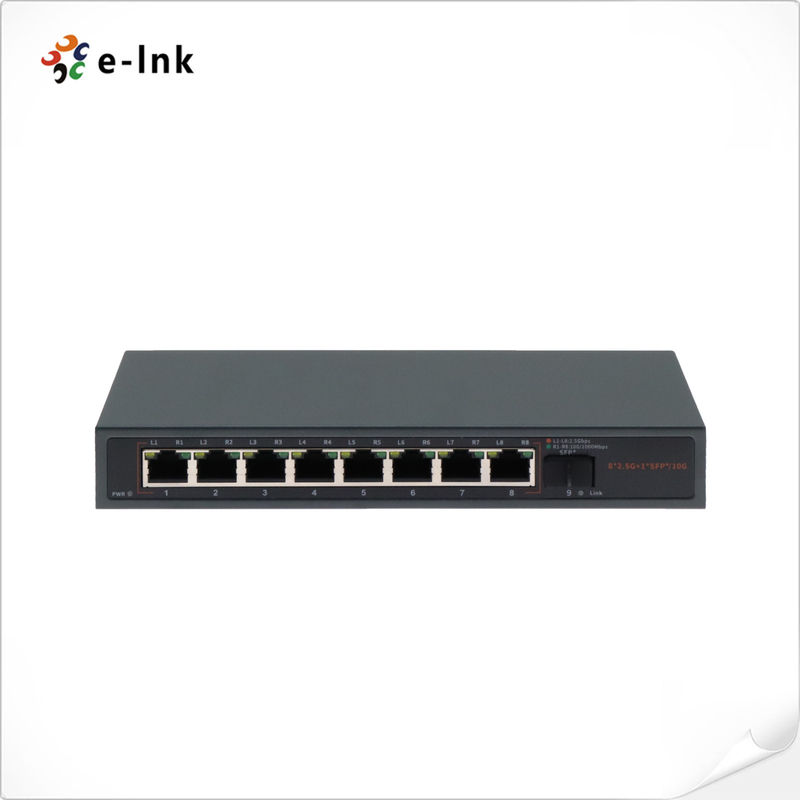

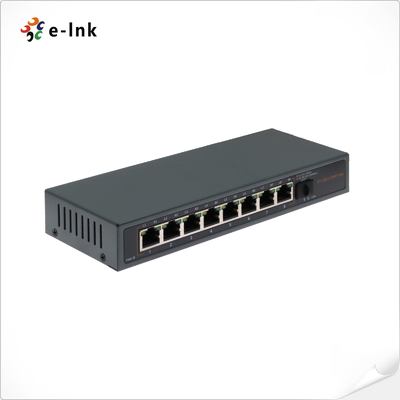

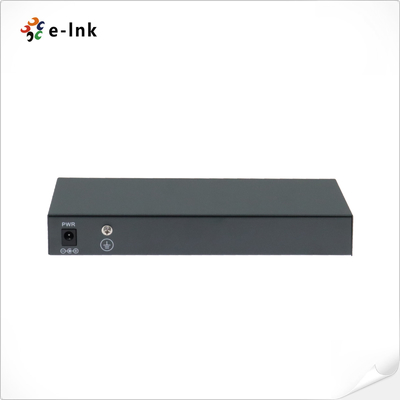

Large Image : 8x2.5Gbps RJ45 Ports + 1 x10G SFP+ Fiber Port Ethernet Switch

Product Details:

Place of Origin:	China
Brand Name:	E-link
Certification:	CE, RoHS, FCC
Model Number:	LNK-2.5G-108

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	To be negotiated
Packaging Details:	Standard express packaging
Delivery Time:	5-8 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal
Supply Ability:	1000PCS/Month

Contact Now

Detailed Product Description

Backplane Bandwidth:	60Gbps	MAC Address Table:	4K
Packet Forwarding Rate:	44.64Mpps	Power:	12V DC
Power Consumption:	0.3W ~ 1.8W	Operation Temperature:	-10℃ To 55℃
Size:	198 X 74 X 29mm	Weight:	0.4KG

8x2.5Gbps RJ45 Ports + 1 x10G SFP+ Fiber Port Ethernet Switch
Commercial Ethernet Switch Advantages

► 4 x 2.5Gbps RJ45 Ports

► 2 x 10G SFP+ Fiber Ports

Commercial Ethernet Switch Technical Indexes

Standards	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3bz
Ethernet Port	Connector: RJ45 Data rate: 100M/1G/2.5G Cable: CAT6 or higher Distance: ≤100 meter
Fiber Port	Connector: SFP+ Data rate: 10G Wavelength: 850nm/1310nm/1490nm/1550nm Fiber type: Single Mode 9/125μm, Multi Mode 50/125μm,62.5/125μm Distance: 550m ~ 100km
Backplane bandwidth	60Gbps
Forwarding method	10Base-tx: 14880pps/port. 100BASE-tx:148800pps/port 1000BASE-tx:1488000pps/port 10000BASE-tx:14880000pps/port
MAC address table	4K
Port function	power supply priority mechanism, fast and forwarding, MAC automatic learning and aging IEEE802.3X Full Duplex Flow Control and Backpressure Half Duplex Flow Control
Material	Metal

Commercial Ethernet Switch Overview

LNK-2.5G-104 Series Ethernet Switch provides 8 x 2.5G ports and 1 x 10Gigabit SFP+ optical port, which can directly enjoy 2.5G high-speed transmission when connected with various 2.5G devices. It employs the store-and-forward mechanism and incorporates a high-capacity internal cache, resulting in a significant reduction in data forwarding delay, while enabling all ports to achieve non-blocking line-speed forwarding.

8x2.5Gbps RJ45 Ports + 1 x10G SFP+ Fiber Port Ethernet Switch 0
