E-link China Technology Co.,Ltd.
Professional Fiber Optical Communication and CCTV Security Transmission Product Manufacturer
|
Product Details:
Payment & Shipping Terms:
|
| Forward & Filtering Rate:: | 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)/1,488,000,000pps (10000Mbps) | Connector: | 8 X RJ45 |
|---|---|---|---|
| Optical Port: | 2 X 1000Base-X SFP | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) | Power Consumption: | 8W Max.(PoE In Use<240W) |
| Dimensions (WxDxH): | 149 X 114 X 50 Mm | Weight: | 0.55Kg |

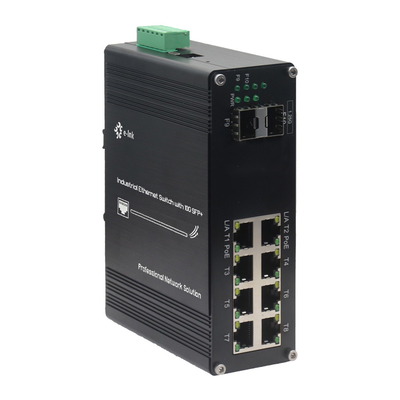

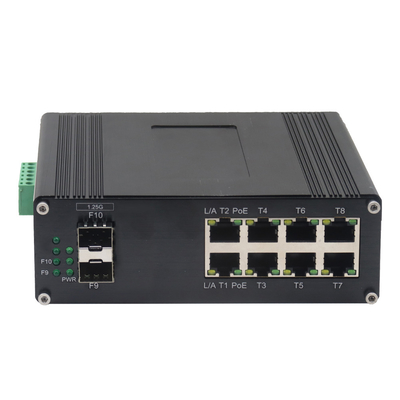

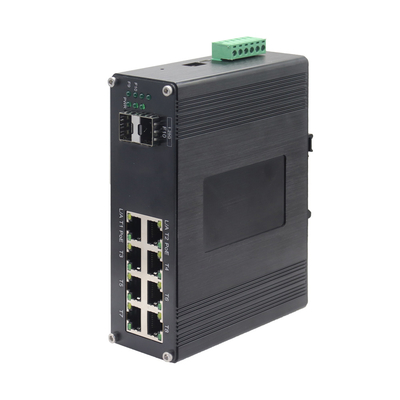

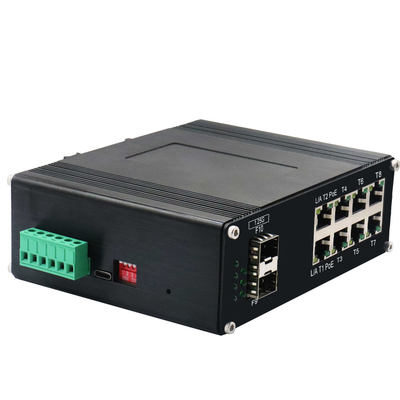

Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch
Industrial Ethernet Switch Advantages
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► IEEE802.3af/at compliant
► DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
► IP40 Aluminum Case
► Supports DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Packet Buffer Memory: | 12M bits | |||
| Processing Type: | Store-and-Forward | |||
| Backplane bandwidth | 110Gbps | |||
| Max Packet Length: | 9K Bytes Jumbo Frame | |||
| Address Table Size: | 8K MAC Addresses | |||
| Interface | ||||
| RS485: | 1 x RS485 (Optional) | |||
| USB-C: | 1 x USB-C (for Management) | |||
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data +, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| Baud rate | 0 ~ 800kbps | |||
| PoE (Power over Ethernet) | ||||
| Standard: | IEEE 802.3at Power over Ethernet Plus | |||
| IEEE 802.3af Power over Ethernet | ||||
| Port: | RJ45 | |||
| Power Pin Assignment | 4/5(+), 7/8(-) | |||
| PoE Budget: | Up to 240-watt PoE budget | |||
| Environmental | ||||
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | |||
| Relative Humidity: | 5% to 95% non-condensing | |||
| MTBF | > 200,000 hrs | |||
| Electrical and Mechanical | ||||
| Protection: | ||||
| Power Input Overload: | Automatic Resettable | |||
| Reverse Polarity: | Present | |||
| LED Indicators: | ||||
| PWR: | Power Status | |||
| Ethernet (Per Port): | Link/Activity | |||
| PoE: | PoE Status | |||
| Fiber: | Gigabit SFP Port: F9~F10 | |||
Industrial Ethernet Media Converter Overview

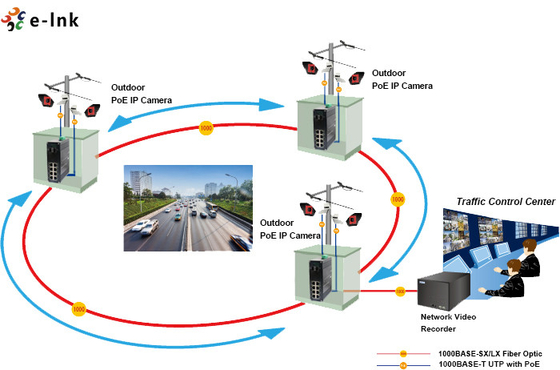

The ETH-IMC208MP series is a hardened Ethernet switch that offers L2+ management, featuring 8 ports of 10/100/1000Base-T with 802.3at PoE support and 2 additional ports of 1000Base-X SFP. This switch includes 8 TP ports and 2 fiber ports.The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. Due to its reliable design and user-friendliness, the product stands out as an excellent option for connecting networks comprising devices like IP cameras and wireless access points across remote sites.
Ordering Information
| Model | Description |
| ETH-IMC208MP | Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
