Product Details:
Payment & Shipping Terms:
|
| Forward & Filtering Rate:: | 148,800pps (100Mbps)/1,488,000pps (1000Mbps) | USB-C: | 1 X USB-C (for Management) |
|---|---|---|---|
| Optical Port: | 14 X 1000Base-X SFP | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
| Input Power: | 12~48VDC, Redundant Power(6-pin Terminal Block) | Power Consumption: | 8W Max |
| Dimensions (WxDxH): | 149 X 114 X 50 Mm | Weight: | 0.55Kg |

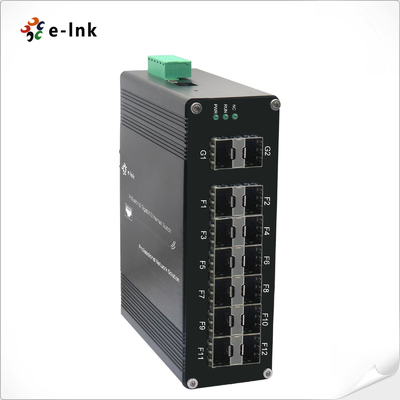

Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Industrial Ethernet Switch Advantages
► Support 12x1000Base-X SFP + 2x1000Base-X SFP
► DIP Switch supports one-key VLAN, one-key Ring Management

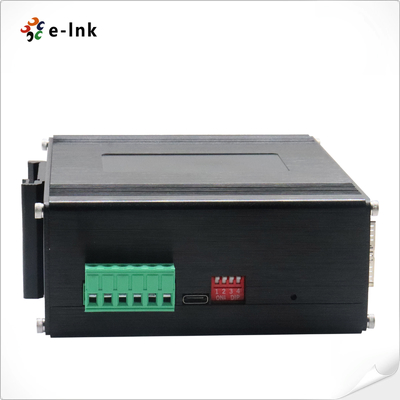

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Packet Buffer Memory: | 12M bits | |||
| Processing Type: | Store-and-Forward | |||
| Backplane bandwidth | 110Gbps | |||
| Max Packet Length: | 10K Bytes Jumbo Frame | |||
| Address Table Size: | 8K MAC Addresses | |||
| Interface | ||||
| Optical Port: | 14 x 1000Base-X SFP | |||
| USB-C: | 1 x USB-C (for Management) | |||
| Environmental | ||||
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | |||
| Relative Humidity: | 5% to 95% non-condensing | |||
| MTBF | > 200,000 hrs | |||
| Electrical and Mechanical | ||||
| Input Power: | 12~48VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption: | 8W Max | |||
| Protection: | ||||
| Power Input Overload: | Automatic Resettable | |||
| Reverse Polarity: | Present | |||
| Power: | Power Status | |||

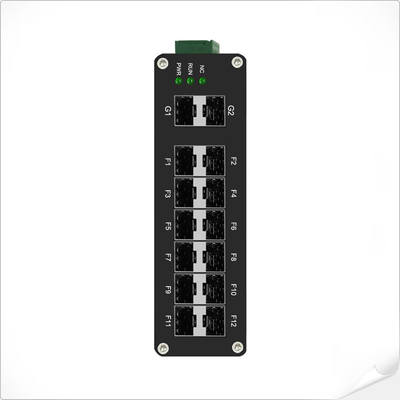

| Fiber: | 100/1000X SFP Port: F1~F12 | |||
| Fiber: | Gigabit SFP Port: G1~G2 | |||
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping | |||
| Management Function | Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client(IPv4/IPv6), Cloud/MQTT | |||
Industrial Ethernet Media Converter Overview
ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. It comprises of a 12-Port 100/1000Base-X SFP fiber optic interface and 2 extra 1.25G SFP interfaces delivered in an IP40 case with redundant power system, being able to operate under the temperature range from -40 to 80 Degree Celsius, the ETH-DIMC2012FM can be placed in virtually any environment. The ETH-DIMC2012FM offers sophisticated data switching and redundancy from Layer 2 to Layer 4, traffic control for Quality of Service, network access control and authentication, along with Secure Management features to safeguard customers' industrial and automation network connections.
Ordering Information
| Model | Description |
| ETH-DIMC2012FM | Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
