Product Details:
Payment & Shipping Terms:
|
| Forward & Filtering Rate:: | 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps) | Connector: | 5 10/100/1000BASET RJ45 Auto-MDI/MDI-X Ports |
|---|---|---|---|
| Port: | RJ45 | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
| Input Power: | 12~48VDC (Terminal Block) | Power Consumption: | <6W (PoE In Use: <125W) |
| Dimensions (WxDxH): | 95 X 70 X 30 Mm | Weight: | 0.25Kg |

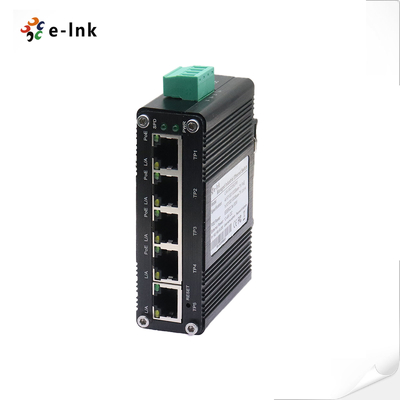

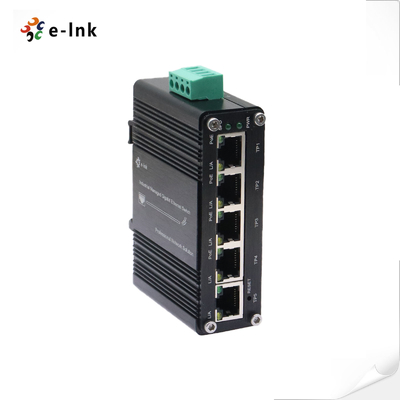

Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Industrial Ethernet Switch Advantages
► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ (Port-1 to Port-4)
► Supports 802.3x Flow control
► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

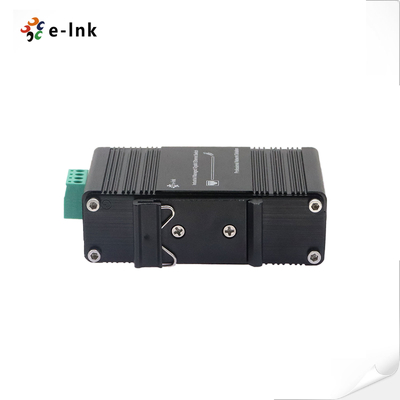

► Supports DIN-Rail and Wall-mount installation
Industrial Ethernet Switch Technical Indexes
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 20Gbps; Packet forwarding rate:14.88Mpps |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Power Pin Assignment | 1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Reset Button | Support |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |

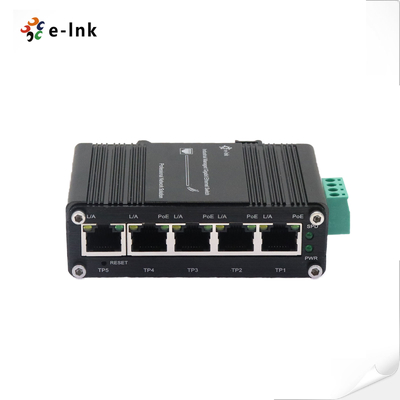

| LED Indicators | |
| PWR | Power |
| SPD | Data rate |
| L/A | Link/Activity |
| PoE | PoE Status |
| Saving Settings | Get Configuration; Restore Configuration; Saving Configuration |
| Default IP | 192.168.40.253 |
| Default User Name | admin |
| Default Password | admin |
Industrial Ethernet Media Converter Overview
The LNK-IMC005GPM Series represents a Mini Industrial Managed Ethernet Switch, equipped with 4 Ports of 10/100/1000BASE-T 802.3at PoE and 1 Port of 10/100/1000T, along with a wide range power input of 12~48V DC. This switch is designed to adhere to the stringent industrial standards and offers managed functionality.With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications. It serves as a cost-effective option for industrial Ethernet connections.
The LNK-IMC005GPM is also capable of operating within the standard temperature range of -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications
Ordering Information
| Model | Description |
| LNK-IMC005GPM | Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options |
► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48 |
