Product Details:
Payment & Shipping Terms:
|
| Forward & Filtering Rate:: | 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps) | Connector: | 4 Ports With 802.3at PoE+ Injector Function (Ports 1 To 4) |
|---|---|---|---|
| Port: | RJ45 | Operating Temperature: | -40°C To 80°C (-40°F To 176°F) |
| Input Power: | 12~48VDC (Terminal Block) | Power Consumption: | <6W (PoE In Use: <125W) |
| Dimensions (WxDxH): | 95 X 70 X 30 Mm | Weight: | 0.25Kg |

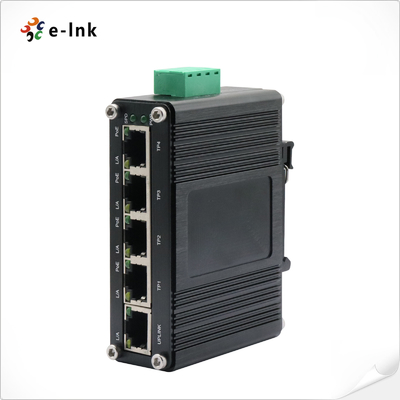

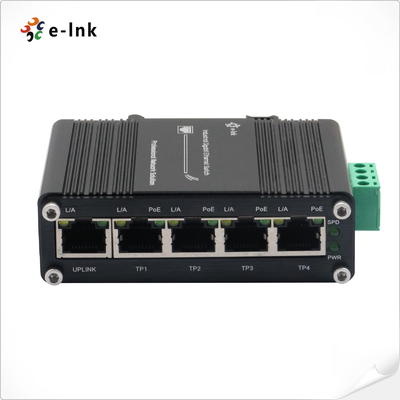

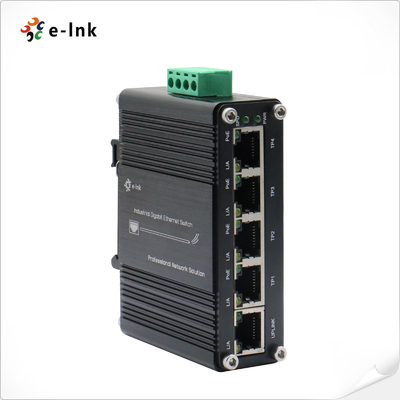

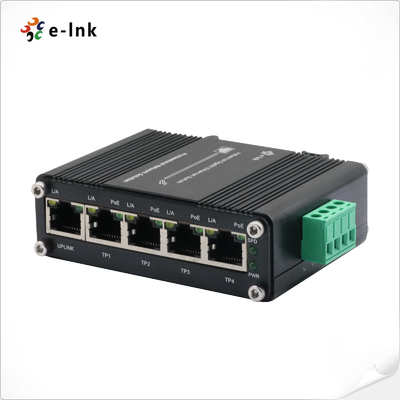

Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Industrial Ethernet Media Converter Advantages
► 5 x 10/100/1000BASE-T ports
► 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
► Supports 802.3x Flow control
► Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

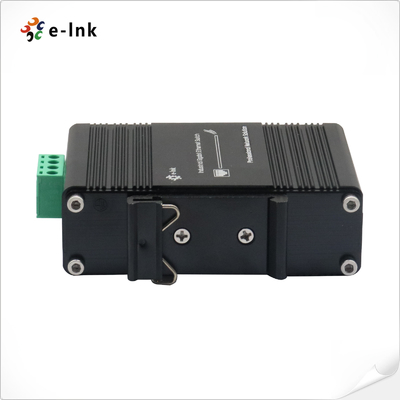

► Supports DIN-Rail and Wall-mount installation
► Industry standard design, dustproof and close design IP40, rugged high-strength metal case
Industrial Ethernet Media Converter Technical Indexes
| Ethernet | |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
|
Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
| Environmental | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
|
PoE |
Max 30W per port |
Industrial Ethernet Media Converter Overview
The LNK-IMC005GP Series is a Mini Industrial Ethernet Switch featuring 4 Ports of 10/100/1000BASE-T 802.3at PoE, plus 1 Port of 10/100/1000T, with a wide range power input of 12~48VDC. It is an unmanaged switch designed to meet the critical standards of industrial applications.With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. The switch complies with CE and FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial applications.It serves as a cost-effective option for industrial Ethernet connections.
Ordering Information
| Model | Description |
| LNK-IMC005GP | Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
