Product Details:
Payment & Shipping Terms:
|
| Item: | Industrial Ethernet Switch | Input Power: | 12~48VDC |
|---|---|---|---|
| Power Consumption: | <6W | Mounting Options: | DIN-Rail Mount |
| Ports: | 10 Ports | Certification: | CE RoHS FCC |
Overview

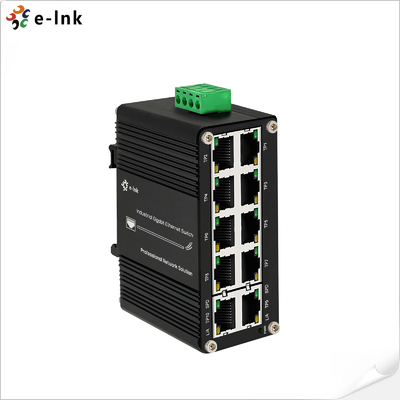

LNK-IMC010G is a Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch with 12~48V DC
wide range power input. This unmanaged industrial Ethernet switch is designed to match the
critical industrial standards. With reliable and simple operation against vibration and shock, and
wide operation temperature range, it could match a variety of harsh environment. The switch
complies with CE and FCC standards, and passed the 100% burning test to ensure that it will
fulfill the needs of industrial applications. It is a good choice for an economical solution for industrial
Ethernet connections.
Features
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 2Mbits |
| Packet Length: | 9216bytes |
| MAC Address Table: | 4K entries |
| Switch Fabric: | 20Gbps/non-blocking |
| Switch Throughput (packet per second) | 14.88Mpps@64bytes |
| Connector: | 10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Environmental | |

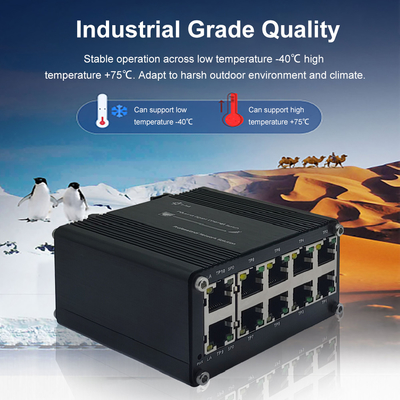

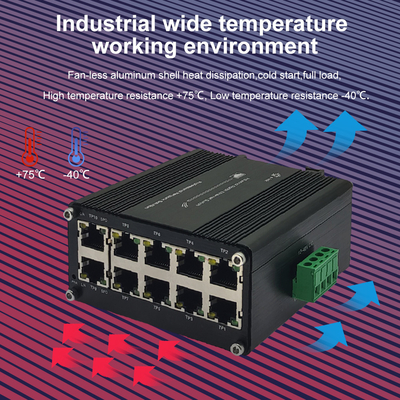

| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: |
12~48VDC Redundant power with polarity reverses protection function |
| Power Consumption: | <10W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 88 x 46mm |
| Weight: | 300g |
| Casing: | Aluminum Case |

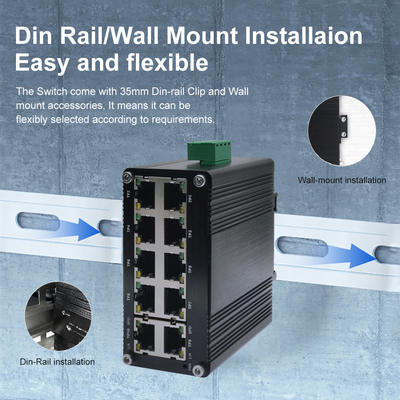

| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
Ordering Information
| Model | Description |
| LNK-IMC010G | Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
