Product Details:
Payment & Shipping Terms:
|
| Item: | Industrial Ethernet Switch | Input Power: | 12~48VDC |
|---|---|---|---|
| Power Consumption: | <6W | Mounting Options: | DIN-Rail / Wall-mount |
| Ports: | 5 Ports | Certification: | CE RoHS FCC |
Overview

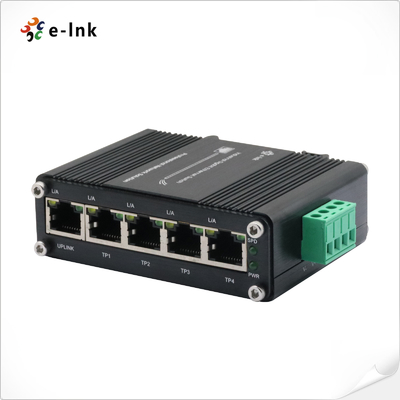

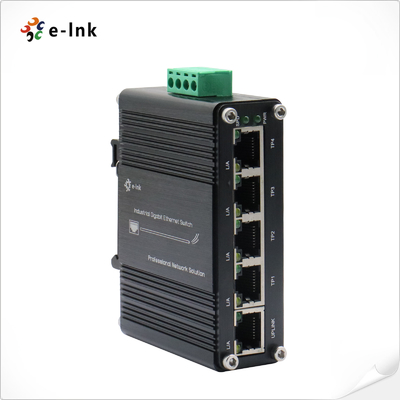

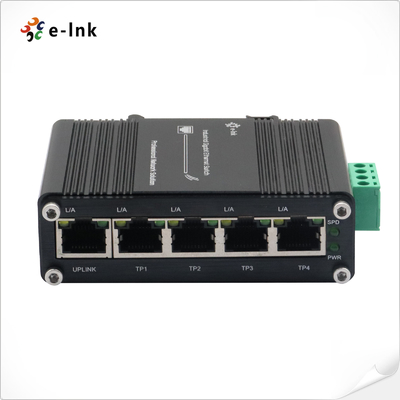

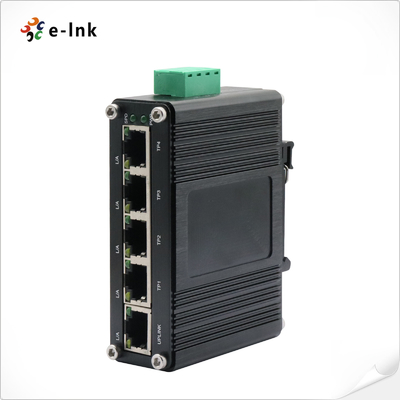

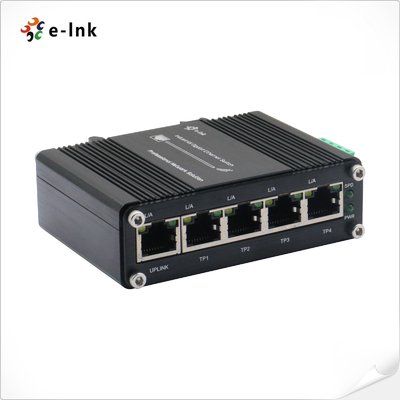

LNK-IMC005G Series is a Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch with 12~48V DC
wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical
industrial standards. With reliable and simple operation against vibration and shock, and wide operation
temperature range, it could match a variety of harsh environment. The switch complies with CE and
FCC standards, and passed the 100% burning test to ensure that it will fulfill the needs of industrial
applications. It is a good choice for an economical solution for industrial Ethernet connections.
Features
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <6W |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR | Power |
| L/A | Link/Activity |
| SPD | Data Rate |
Ordering Information
| Model | Description |
| LNK-IMC005G | Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
