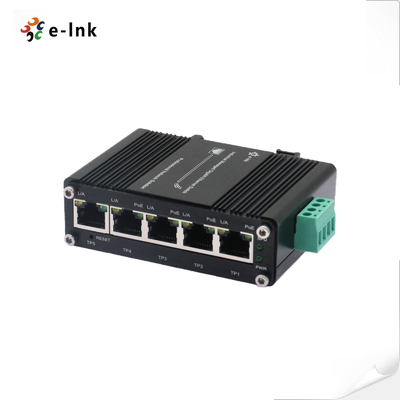

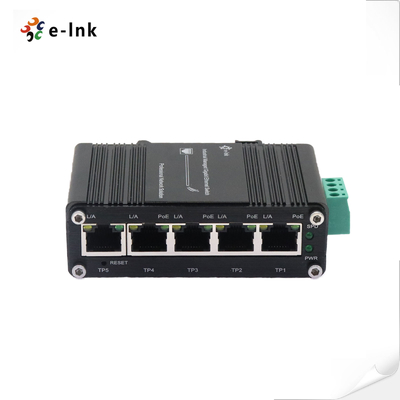

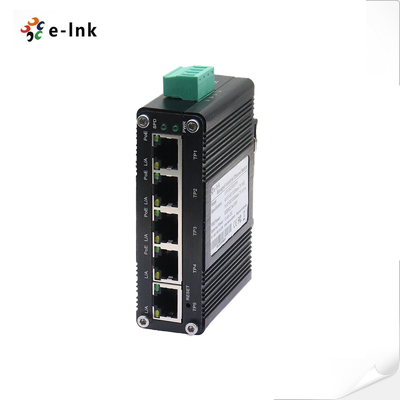

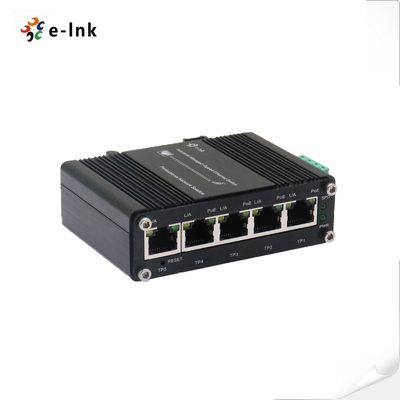

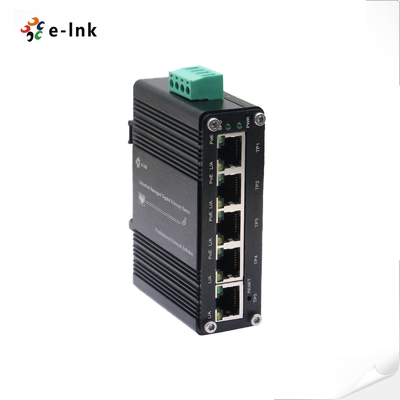

Mini Industrial Web Managed 5 port POE Switch with 4 Port PoE 1 Uplink
Model: LNK-IMC005GPM
Overview
LNK-IMC005GPM Series is a Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE +
1-Port 10/100/1000T Ethernet Switch with 12~48V DC wide range power input. This managed
industrial Ethernet switch is designed to match the critical industrial standards. With reliable and
simple operation against vibration and shock, and wide operation temperature range, it could match
a variety of harsh environment. The switch complies with CE and FCC standards, and passed the
100% burning test to ensure that it will fulfill the needs of industrial applications. It is a good choice
for an economical solution for industrial Ethernet connections.
LNK-IMC005GPM can also operate at standard operating temperature range -40 to 80°C. Housed
in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh
environments, such as industrial networking, intelligent transportation systems (ITS) and are also
suitable for many military and utility market applications where environmental conditions exceed
commercial product specifications
Features
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3af Power over Ethernet Plus | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 20Gbps; Packet forwarding rate:14.88Mpps |
| Connector: | 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ (Ports 1 to 4) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Reset Button | Support |
| Dimensions (WxDxH): | 95 x 70 x 29 mm |
| Weight: | 0.25KG |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators | |
| PWR | Power |
| SPD | Data rate |
| L/A | Link/Activity |
| PoE | PoE Status |
| WEB Management Features | |
| System Settings | Device Info; Account Settings; Restoring; Reboot; Upgrade |
| Port Management | Port Settings; Port Mirroring; Port Statistics; Rate Limit |
| VLAN Settings | 802.1Q VLAN; PVID Settings; Hybrid Port |
| QOS Settings | Priority Selection; Scheduling Mode |
| Loop Detection | Support |
| Saving Settings | Get Configuration; Restore Configuration; Saving Configuration |
| Default IP | 192.168.40.253 |
| Default User Name | admin |
| Default Password | admin |
Order Information
| Model | Description |
| LNK-IMC005GPM | Mini Industrial Managed 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch |

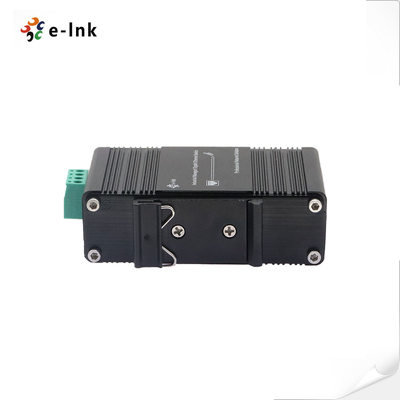

| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately ► Recommend MeanWell NDR-120-48 |
