5G Router & Ethernet Switch Industrial 8 x 10/100/1000M RJ45 + 4 x 1.25G SFP + 1 x 5G

Product Description:

The 5G Router & Industrial Ethernet Switch communication route is specifically designed and developed for high-speed communication networks in the power application field. It utilizes a 5G industrial security module and domestic two-layer switching chip to ensure efficient and secure data transmission.

This communication route comes equipped with 8 10/100/1000Mbps adaptive electrical ports and 4 Gigabit optical ports, offering a total of 12 ports and 1 5G interface. Additionally, each Gigabit optical port supports an SFP optical port module, and the product supports VLAN of 802.1Q.

To further optimize the user experience, the minimum granularity supported by port speed limit is 64K, and the MAC address table of 8K entries is supported. These features enable seamless and high-quality communication for users.

Features:

This device is designed to support a range of networking needs with its 8x10/100/1000Mbps RJ45 ports, 4 x 1.25G SFP ports and 1 x 5G uplink. With gigabit interfaces, this device adapts to 10/100/1000Mbps needs and also provides full/half duplex, MDI/MDIX adaptive mode.

For enhanced communication quality, this device plays host to QoS functionalities alongside IEEE802.1p and ToS/DiffServe protocols. Different levels of network management of SNMP V1/V2C are also supported by this powerful device.

The device comes equipped with real-time broadcast storm monitoring and control functionalities which includes the detection of broadcast, multicast, unknown unicast and other types of storms. The device also has an embedded Web server which allows remote management and configuration through a browser.

Dynamic IGMP Snooping support of this device filters multicast traffic while meeting the requirements of trouble-free operation in strong electromagnetic interference environments. This device has full duplex flow control and half duplex back pressure flow control functionalities to cater to a wide range of networking needs.

Technical Parameters:

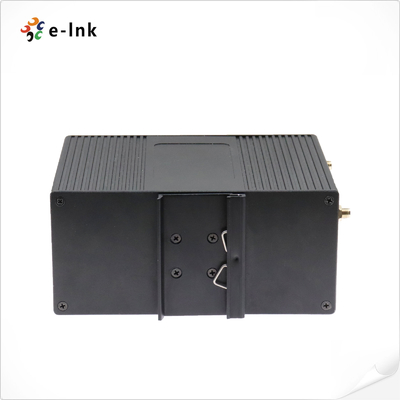

The product has a size of 74mm * 160mm * 122mm and is made of Aluminum Alloy. It operates without a fan and is therefore silent during use. It can be mounted using a DIN Rail and provides efficient heat dissipation.

The device requires DC12V/24V/48V power input and features a 5-pin Terminal Block with Redundant Power for efficient power management. It consumes less than 20W of power and can operate in environments with 5% to 95% humidity without condensation. It has an industrial-grade temperature range of -40 ~ 85℃ for reliable use. The device features EC/EN6100-4 industrial protection for enhanced protection against harsh conditions. Its MTBF value is greater than 50000 hours.

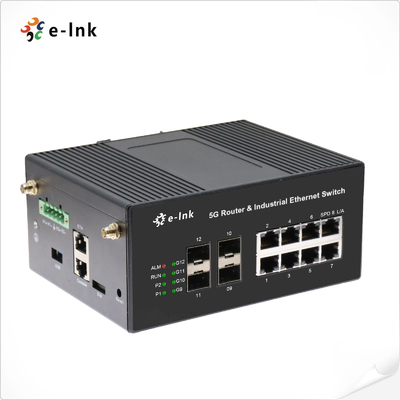

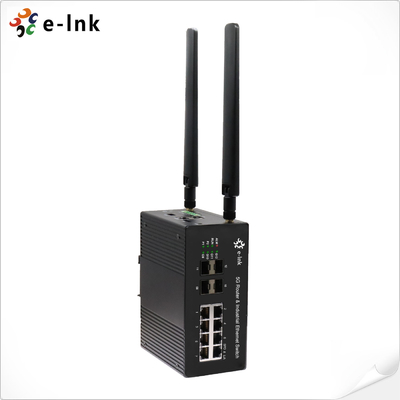

The device has eight Gigabit Ethernet ports with 10/100/1000Mbps and four Gigabit Fiber ports with 1000BASE-X. It also has two 5G antennas, two Console Ports, one USB port, one SIM slot, and one Reset button for convenient connectivity.

The device operates on a Linux-based system and supports online upgrades. It provides web-based network management for easy administrative control. The device also supports remote access control and standard protocols including IEEE802.3u, IEEE802.1p, IEEE802.1q, and IEEE 802.3ad. It supports VLAN division, QoS management, port aggregation, port rate limitation, broadcast storm suppression, IPv4 static routing settings, port MAC address binding, ring network protection, and port mirroring.

The device supports SA/NSA networks and features automatic switching between different 4G/5G networks. The device also supports uplink and downlink 256QAM modulation mode and various cryptographic algorithms. It features N41, N78, and N79 5G output power with specific dBm values. It also has a receiving sensitivity with specific kHZ values.

The device has LED indicators that provide information about its status. The PWR1 and PWR2 LEDs indicate the device's power supply status. The RUN LED flashes to indicate normal system operation. The ALM LED indicates equipment alarm. The G9 to G12 LEDs indicate the Gigabit Fiber Port's network connection status. The Ethernet RJ45 ports have a yellow rate indicator and a green status indicator.

Physical Charateristics:

Support and Services:

The Industrial Ethernet switch provides reliable and high-speed network connectivity for industrial applications. Our technical support team is available to assist with any installation, configuration, or troubleshooting issues that may arise. We also offer a range of services to ensure that your switch is functioning optimally, including network design and optimization, firmware updates, and remote monitoring. Our goal is to provide our customers with the best possible experience and ensure that their networks are running smoothly.

Packing and Shipping:

Product Packaging:

• Industrial Ethernet Switch with 5G Router function
• Quick install guide

Shipping:

• Ships within 1-2 business days
• Free shipping within the United States
• International shipping available

Ordering Information:
