Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial PoE Injector | Input Power: | 12~48V DC With Booster Function |
|---|---|---|---|
| Data Rate: | 10G | Power Port: | 30W Max |
| Maximum Distance: | Cat7 UTP Up To 30m | Weight: | 0.25KG |

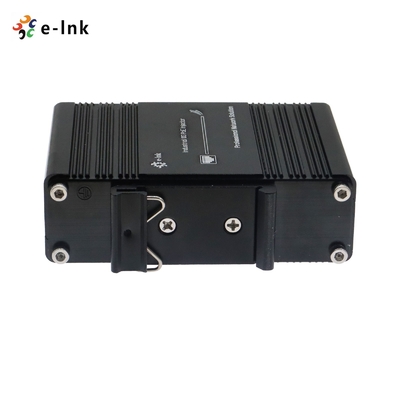

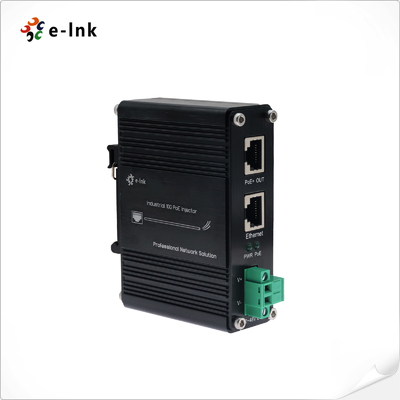

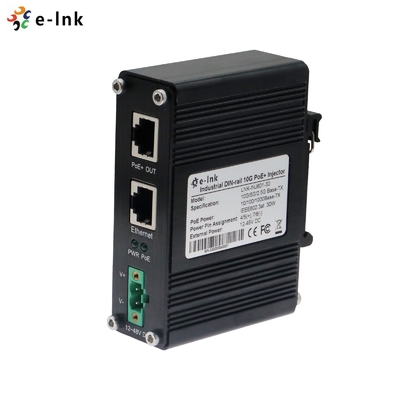

LNK-INJ601-30 product is a powerful and reliable option for those seeking a Hardened 10G PoE Injector. This device is specially designed to allow users to connect IEEE 802.3 af/at PoE devices, such as cameras and access points, to a non-PoE LAN switch at distances of up to 30 meters. This is achieved through support for both Ethernet and PoE out ports, which are capable of 10/100/1000/2.5G/5G/10G Base-T and fully compliant with IEEE 802.3ab standards. Additionally, the PoE out port of the LNK-INJ601-30 is fully compliant with IEEE 802.3at requirements, making it an ideal choice for demanding applications.
One of the key benefits of the LNK-INJ601-30 is its ability to provide an integrated power solution with a wide voltage range of 12~48VDC. This makes it an especially attractive option for those seeking high availability applications, where reliable and stable power is essential. Whatever your specific needs may be, the LNK-INJ601-30 is designed to meet them, with a range of advanced features and capabilities ensuring that you always have access to the power and connectivity solutions you need for your operations.
Our device offers a unique combination of a RJ45 Ethernet Data Input Port and a RJ45 Power Over Ethernet Output Port that allows for simultaneous data and power transfer. This makes it an ideal solution for network devices that are situated in locations without easy access to a power source, such as security cameras.
Our product supports IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment, which means that it can deliver up to 30 watts of power to connected devices over Ethernet cables. In addition, it is compatible with a wide range of network speeds, including 10/100/1000/2.5G/5G/10G Base-TX.
The device is also equipped with extensive LED indicators for PoE diagnostics, making it easy to monitor and troubleshoot any issues that may arise. Furthermore, its environmentally hardened design allows it to operate in temperatures ranging from -40°C to 80°C (-40°F to 176°F), making it resistant to harsh weather conditions.
The product is compliant with the following standards:
The product operates in the following processing types:
The product has a forward filter rate of 14,880,000pps (10Gbps).
The product supports the use of the following cabling:
The product supports a maximum distance of Cat7 UTP up to 30m.
The product is equipped with 2x RJ45 connectors.
The product can operate within a temperature range of -40°C to 80°C (-40°F to 176°F).
The product can be stored within a temperature range of -40°C to 85°C (-40°F to 185°F).
The product can operate under a relative humidity range of 5% to 95% non-condensing.
The Mean Time Between Failures (MTBF) for the product is greater than 200,000 hours.
The product has the following electrical and mechanical features:
The Power Over Ethernet Injector product provides technical support and services to ensure that customers have a seamless experience. Our team of experts is available to assist with any installation, configuration, or troubleshooting needs. In addition, we offer comprehensive product documentation, including user manuals and technical specifications, to help customers better understand the product's capabilities and features. Our goal is to provide exceptional support and services to ensure that customers can fully leverage the benefits of the Power Over Ethernet Injector product.
Product Packaging:
The Power Over Ethernet Injector will be securely packed in a cardboard box with protective foam inserts to prevent damage during transit.
Shipping:
The product will be shipped via standard ground shipping and will be delivered within 5-7 business days. Expedited shipping options are available at an additional cost.
| Model | Description |
| LNK-INJ601-30 | Industrial 10G PoE+ Injector 802.3at 12~48VDC Power Input |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |
